Ultrafast Laser Glass Drilling Machine

Machine Features

1. Glass thickness: 0.2-0.5mm

2. Chipping size: ＜0.02mm

3. Processing efficiency: 6S/hole

4. Non-contact processing with minimal material damage and high cutting precision

5. Short single-point laser action time with a small heat-affected zone

6. High efficiency achieved through high-speed drilling with a linear motor and galvanometer mirror


Applications

Protective lens for camera

Technical Data Sheet
Processing Range400*250mm
Platform Repeated Positioning Accuracy±2um
Platform Dynamic Positioning Accuracy±3um
Maximum Platform Moving Speed1000mm/s
Camera Positioning Accuracy±0.01mm
Overall Weight ≤3T
Drilling Thickness0.5mm
Chipping≤10um
Laser TypeInfrared Picosecond
Wavelength1064nm
Power30W
Pulse Width＜10ps
Cooling Method Water Cooling
Power Requirement380V/50Hz AC 3P

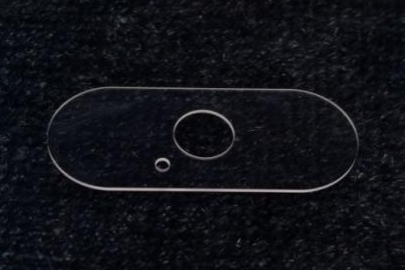

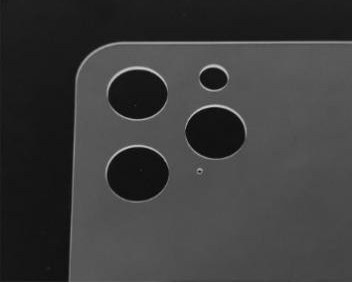

Laser Cutting Effects
