Large-Format Laser Cutting and Chipping Machine for Automotive Glass

Machine Features

1. Precision laser cutting device specifically designed for cutting three-dimensional components with complex curved surfaces

2. Extremely high flexibility and stability, meeting the diverse needs of various industries and fields, featuring a marble base, equipped with an infrared laser for cutting and a CO2 laser for chipping

3. Combined with a multi-axis synchronous control method, realizing linear motion along the XYZ axes and rotational motion along the AC/BC axes, significantly enhancing product utilization

4. Self-developed visual positioning system algorithm, strong compatibility and high equipment stability

5. Customizable design options, enabling automated production for processing complex curved surfaces.


Technical Data Sheet
Processing RangeCurved Glass, Spherical Surfaces, Freeform Surfaces
Platform Repeated Positioning Accuracy ±1um
Platform Dynamic Positioning Accuracy±3um
Maximum Platform Moving Speed 150mm/s
Camera Positioning Accuracy±0.01mm
Machine Weight  ≤9T
Laser Type Infrared Picosecond
Wavelength1064nm
Power50W
Pulse Width ＜10ps
Cooling Method Water Cooling
Power Requirement 380V/50Hz AC 3P

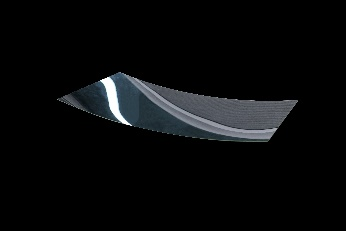

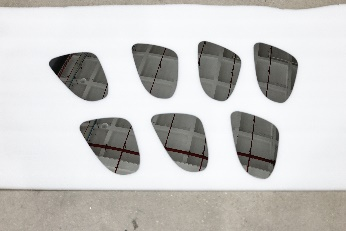

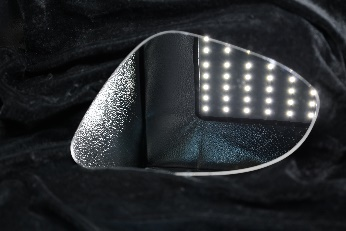

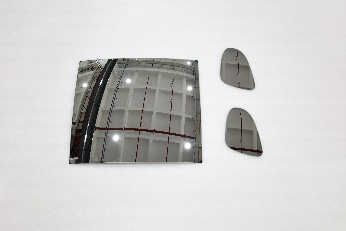

Laser Cutting Effects
