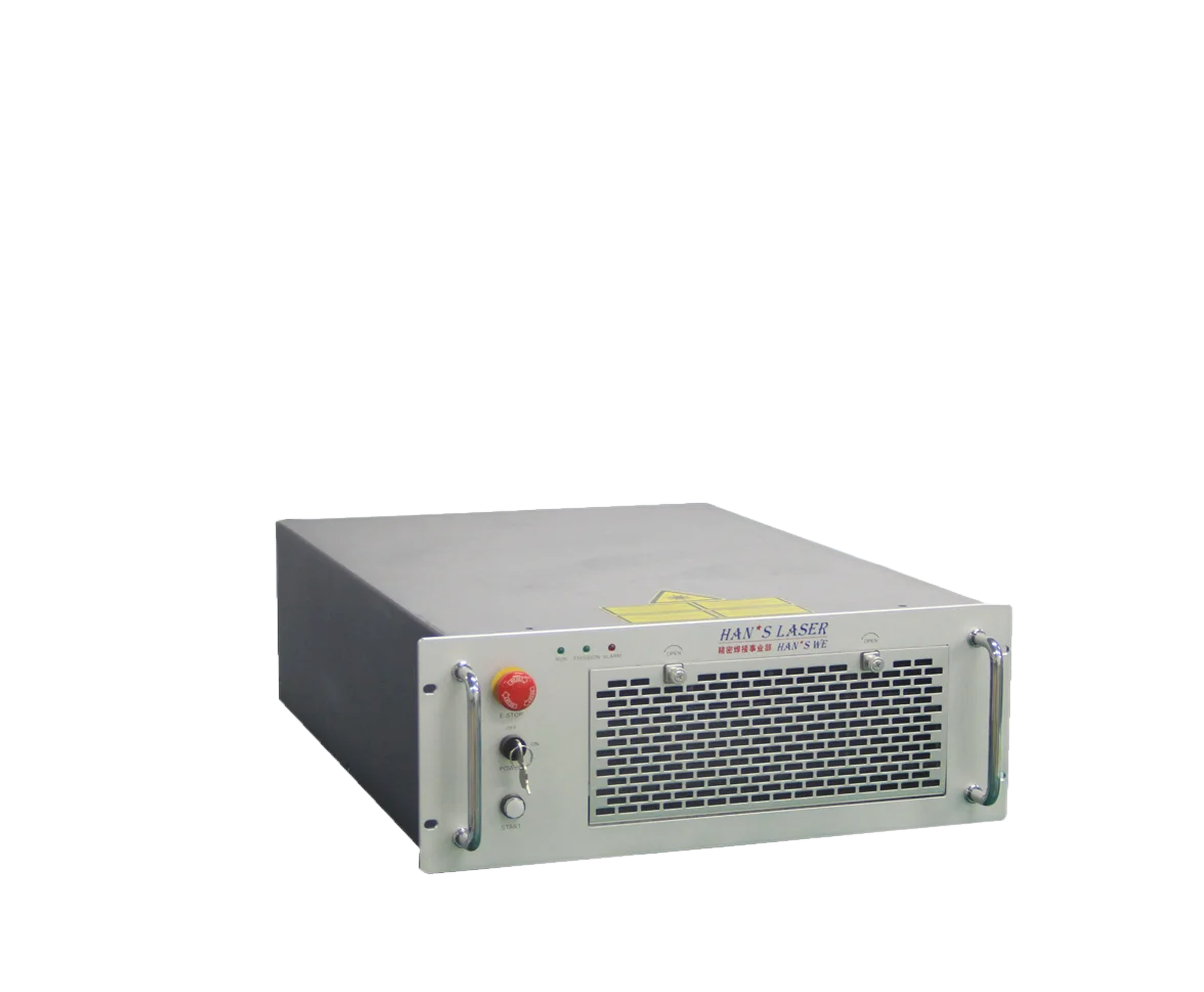

WFD10/25/50/100/1000

Semiconductor Laser Welding Machine

WFD10/25/50/100/1000

Machine Features

1. Pulsed, continuous dual working mode

2. A more diverse way of working

3. Low maintenance cost and low power demand, zero consumables, electro-optical conversion efficiency up to 47%

4. Better integrated applications for on-site placement and integration

5. Compact structure, convenient handling, management and maintenance

Applications

Widely applied to the reinforcement and sealing welding of plastics Medical plastic parts. 1. Auto plastic parts. 2. Plastic bottle sealing welding. 3. Plastic pipe sealing welding. 4. Oxygen mask sealing welding.

Technical Data Sheet

Model	WFD10	WFD25	WFD50	WFD100	WFD1000
Control mode	CW	CW	CW	CW	CW
Maximum Average Power (W)	10W	≤25W	50W	100W	1000W
Waveform width	0.1~80000ms	0.1~80000ms	0.1~80000ms	0.1~80000ms	0.1~80000ms
Wave form	16 x 16 sections	16 x 16 sections	16 x 16 sections	16 x 16 sections	16 x 16 sections
Laser wavelength	915nm	915nm	915nm(808nm,980nm optional)	915nm	915nm
Fiber Output	1	1	1	1	1
Fiber Diameter	200um	200um	200um	200um	300um
Bending radius	>150mm	>150mm	>150mm	>150mm	>250mm
Numerical aperture	0.22(Na value)	0.22(Na value)	0.22(Na value)	0.22(Na value)	0.22(Na value)
Fiber length	5m	5m	5m	5m	5m
Fiber plug	D80	D80	D80	D80	QBH
Power consumption	≤200W	≤150W	≤240W	≤350W	≤2700W
Power supply	220V±10%/50Hz	220V±10%/50Hz	220V±10%/50Hz	220V±10%/50Hz	220V±10%/50Hz
Machine dimension (LWH)	560x440x177mm	595x455x177mm	560x440x177mm	560x440x177mm	677x440x177mm
Cooling mode	Built-in air cooling	Forced air cooling (built-in)	Built-in air cooling	Built-in air cooling	Built-in air cooling

Laser Welding Effects

Plastic welding sample

Plastic welding sample

Plastic welding sample

Plastic welding sample

Plastic welding sample

Plastic welding sample

Plastic welding sample

Plastic welding sample

Plastic welding sample

Plastic welding sample

Plastic welding sample

Plastic welding sample
