Quasi-synchronous Laser Welding System (Sliding Table Double Station)

Machine Features

1. Dual-station sliding table producing different products at each station, improved production efficiency

2. Real-time monitoring and control of welding collapse, ensured welding quality

3. Real-time monitoring of welding pressure, ensured welding stability

4. Quick fixture exchange to adapt to welding of different products

5. CCD monitoring and red light indication, easy positioning and aiming, fast and accurate

Applications

Mainly used in various plastic parts in 3C industry, automobile industry, medical equipment, home appliance industry and more

Brief Description

The system integrates a laser with motion welding parts with a straightforward and compact structure, easy operation, high safety and stability. The system adopts a plastic-specific laser and a galvanometer high-speed scanning method. It can be equipped with a high-precision measurement sensor to control the welding collapse value. Within the galvanometer scanning range, it can perform welding for any plane trajectory. It is compatible with universal fixtures and specific fixtures to weld a variety of products. The system adopts a dual-station entry and exit platform. When one station is at welding, the other station is at loading or unloading, fully improving production efficiency.

Technical Data Sheet

System Model	SWE-QS300-Y2
Control System	Industrial PC + PLC + motion control card
Welding Head	Quasi-synchronous galvanometer welding joints
Laser	300W built-in semiconductor laser
Platform, DD Motor Configuration	1 X-axis electric platform with 800mm stroke; 1 Y1-axis electric platform with 500mm stroke and 1 Y2-axis electric platform with 500mm stroke; 1 Z-axis electric platform with 100mm stroke
Repetition Accuracy	Platform±0.02mm
Workstation	Dual station
Automation Degree	Semi-automatic, manual loading and unloading, automatic welding
Optional	Special fixture for samples, with quick fixture change function
Welding Trajectory	Points, straight lines, circles, squares or any plane figures composed of straight lines and/or arcs
Dimensions of Workbench	1300mm1200mm2000mm
Supply Voltage, Electricity Demand	Singlephase AC220V,2.5kW

Han's Laser Solutions

Quasi-synchronous Laser Welding System (Sliding Table Double Station)

Applications

Brief Description

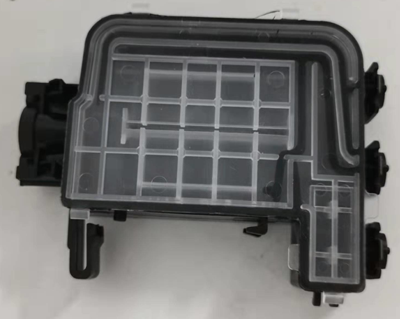

Laser Welding Effects
