General Single Station Quasi-Synchronous Laser Welding System

Machine Features

1. Rotating double station with compact structure, improved production efficiency.

2. Real-time monitoring and control of welding collapse, ensured welding quality

3. Real-time monitoring of welding pressure, ensured welding stability

4. Quick fixture exchange for welding switching among different products

5. CCD monitoring and red-light indication for easy, fast and accurate positioning and aiming

Applications

Mainly used in welding of various types of small plastic parts such as 3C parts, automobile industry, medical equipment, home appliance industry and more

Brief Description

The system integrates a laser with motion welding parts with straightforward and compact structure, easy operation, high safety and stability. The system adopts a high-speed galvanometer scanning method to perform penetration welding. The products shall have a lighttransmitting upper layer and a lightabsorbing lower layer. Welding can be performed on any plane trajectory within the scanning range of the galvanometer. It is compatible with universal and special fixtures to weld various products. Optional collapse detection and control functions are particularly suitable for products with strict collapsecontrol requirements. The system can be optionally fitted with a protective cover.

Technical Data Sheet

Machine Model	SWE-QS300-A2
Control System	Industrial PC + PLC
Welding Head	1 set of Quasi-synchronous galvanometer welding joints
Laser	300W built-in semiconductor laser
Stage, DD Motor Configuration	1 set of DD motor , 1 set of Z-axis electric stage
Repeatability	DD motor ±5s, Stage ±0.02mm
Workstation	Dual station
Degree of Automation	Semi-automatic, manual loading/unloading, automatic welding
Optional Components	Special fixture for samples with quick fixture exchange function
Welding Trajectory	Points, straight lines, circles, squares or any plane figures composed of straight lines and/or arcs
Dimensions of Workbench	1200mm1000mm2000mm
Supply Voltage, Electricity Demand	Singlephase AC220V,2.5kW

Han's Laser Solutions

General Single Station Quasi-Synchronous Laser Welding System

Applications

Brief Description

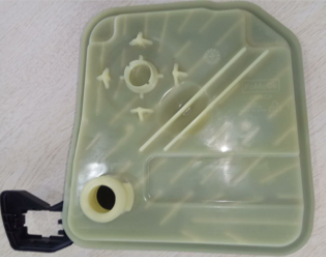

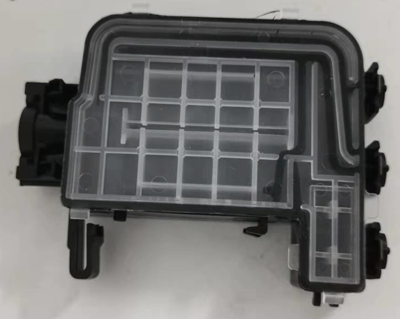

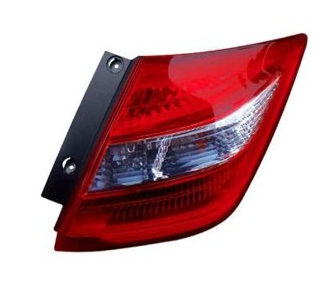

Laser Welding Effects
