Double Load Table PCBA/FPCA Laser Cutting Equipment

HDZ-UVC3040D

Machine Features

1. Self-developed high-performance UV laser generator with very small heat-affected zone, enabling more efficient processing of high-density, highly integrated PCBA products.

2. High-precision motion system with high-precision scanning galvanometers and a vision positioning system equipped, assuring product processing accuracy.

3. Can be embedded in the SMT production line and connected to the loading/unloading mechanism, reducing human intervention and improving production stability.

4. Safety light curtain and a dual worktable processing method, effectively reduced loading/unloading downtime and improved processing efficiency

Technical Data Sheet

Equipment Model	HDZ-UVC3040D
Laser Generator	UV (Green nanosecond or UV picosecond)
Laser Power	20-60W
Minimum Line Width	0.03mm
Repeat Positioning Accuracy	±0.03mm
Maximum Processing Area	300mm400mm2
Positioning System	Visual Camera Positioning
Cooling Method	Water-Cooling
Dimensions	1370mm1760mm1825mm

Cookies Consent

Han's Laser Solutions

Double Load Table PCBA/FPCA Laser Cutting Equipment

HDZ-UVC3040D

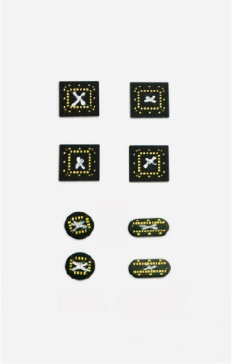

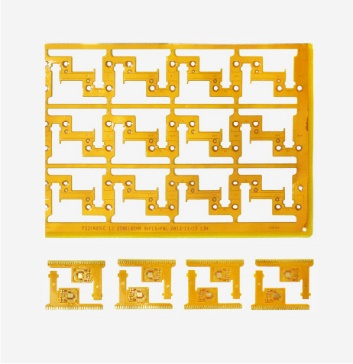

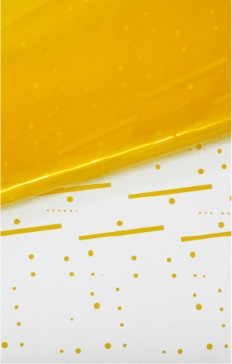

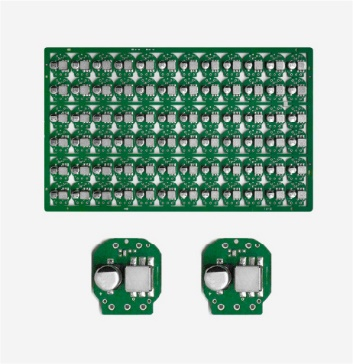

Laser Cutting Effects
