Dual-Station Constant Temperature Solder Paste Welding System

Machine Features

1.Dual-station loading and unloading, time saving

2.Constant temperature welding, temperature controllable

3.Contact-free tin melting, small thermal impact

4.Synchronized spot tin welding, accurate and efficient

5.High electro-optical conversion efficiency, cost saving

6. Easy and convenient maintenance


Applications

Mainly applied in the 3C electronics industry, especially suitable for welding of TWS headsets, Watch, VR/AR and other components

Brief Description

The machine adopts a semiconductor laser and is highly integrated with the industrial control system in the workbench cabinet, with a tin‑spotting device, a constant-temperature welding head and a double-gantry system equipped. The machine performs highly efficient automatic welding for a wide range of precision devices such as TWS headsets by enabling simultaneous loading, unloading, automatic positioning and welding.
Technical Data Sheet

Soldering System

Welding Method

Solder paste constant temperature soldering

Temperature Range

50-400℃

Welding Temperature Accuracy

±10℃

Welding Yield

Above 98%

Motion Section

Repeated Positioning Accuracy

±0.02mm

Welding Range

150mm*300mm

Positioning CCD

5 M pixels

System Structure

Dimensions

1000mm*1340mm*190mm

Total Weight

850KG

Supply Voltage, Electricity Demand

AC220V,30A,50Hz

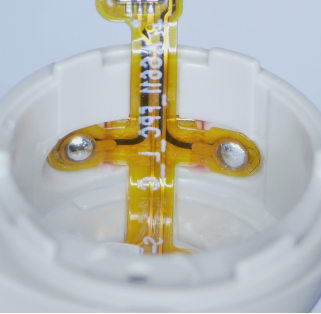

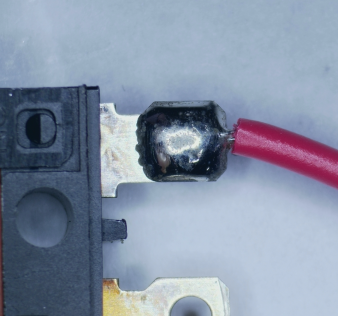

Laser Welding Effects
