MPS-3015D
Brief Description
It is suitable for sheet metal processing, kitchen appliances, sheet metal case cabinets, lighting advertising, electrical equipment and all kinds of metal products processing industry.
Categories
Sheet metal cutting
Contact Us
Features:
Safety,beautiful design:
Fully enclosed protection cover, comply with European safety standard;
High processing accuracy:
Equip with high torque servo motor and high precision imported reducer, high efficiency, favorable dynamic characteristics;
Good dynamics & cutting ability:
High rigidity welded body with die-cast aviation aluminum gantry, improve the gantry strength and much lighter, enjoy good stability & durability;
Easy operation & intelligent:
Adopt the professional digital control system, which is developed by Han’s MP, achieving the HANS digital control system with the features of good performance, high reliability and convenient operation.
Low running cost:
Low accessing gas consumption by precision control, to ensure the low running cost,three kinds of auxiliary gas can be choose freely by customer
Fully enclosed protection cover, comply with European safety standard;
High processing accuracy:
Equip with high torque servo motor and high precision imported reducer, high efficiency, favorable dynamic characteristics;
Good dynamics & cutting ability:
High rigidity welded body with die-cast aviation aluminum gantry, improve the gantry strength and much lighter, enjoy good stability & durability;
Easy operation & intelligent:
Adopt the professional digital control system, which is developed by Han’s MP, achieving the HANS digital control system with the features of good performance, high reliability and convenient operation.
Low running cost:
Low accessing gas consumption by precision control, to ensure the low running cost,three kinds of auxiliary gas can be choose freely by customer
Specification:
No. | Item | Parameters |
1 | Processing area | 3000mm×1500mm |
2 | X、Y axis location speed | ±0.05mm/m |
3 | X、Y axis repeated location speed | ±0.03mm |
4 | Max running speed | 120m/min |
5 | Max running acceleration | 1.0G |
6 | Max load of worktable | 800kg |
7 | Power supply | 380V/50HZ |
8 | Machine tool weight | 6.5T |
9 | Dimension(L*W*H) | 8.7m×2.92m×2.0mm |

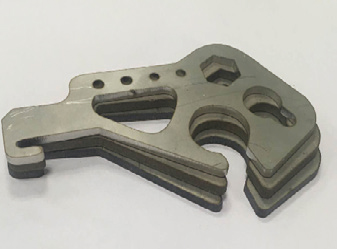

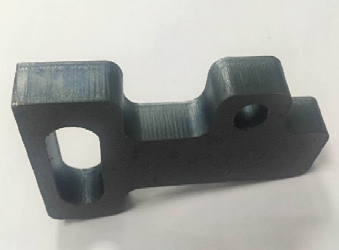

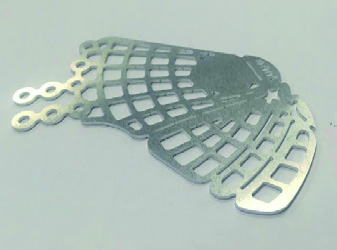

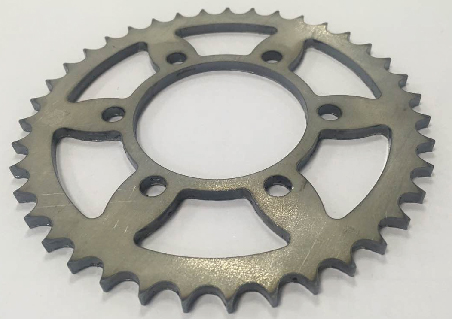

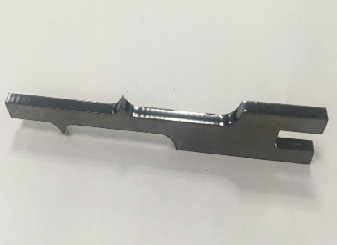

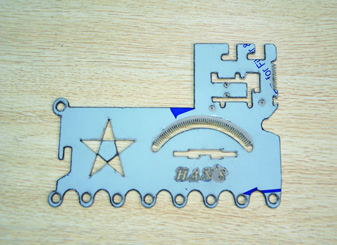

Sample
