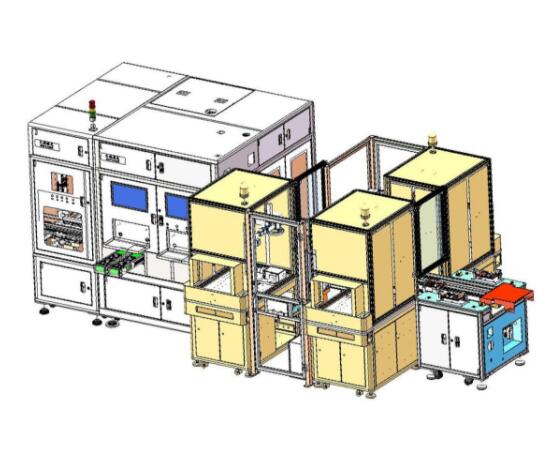

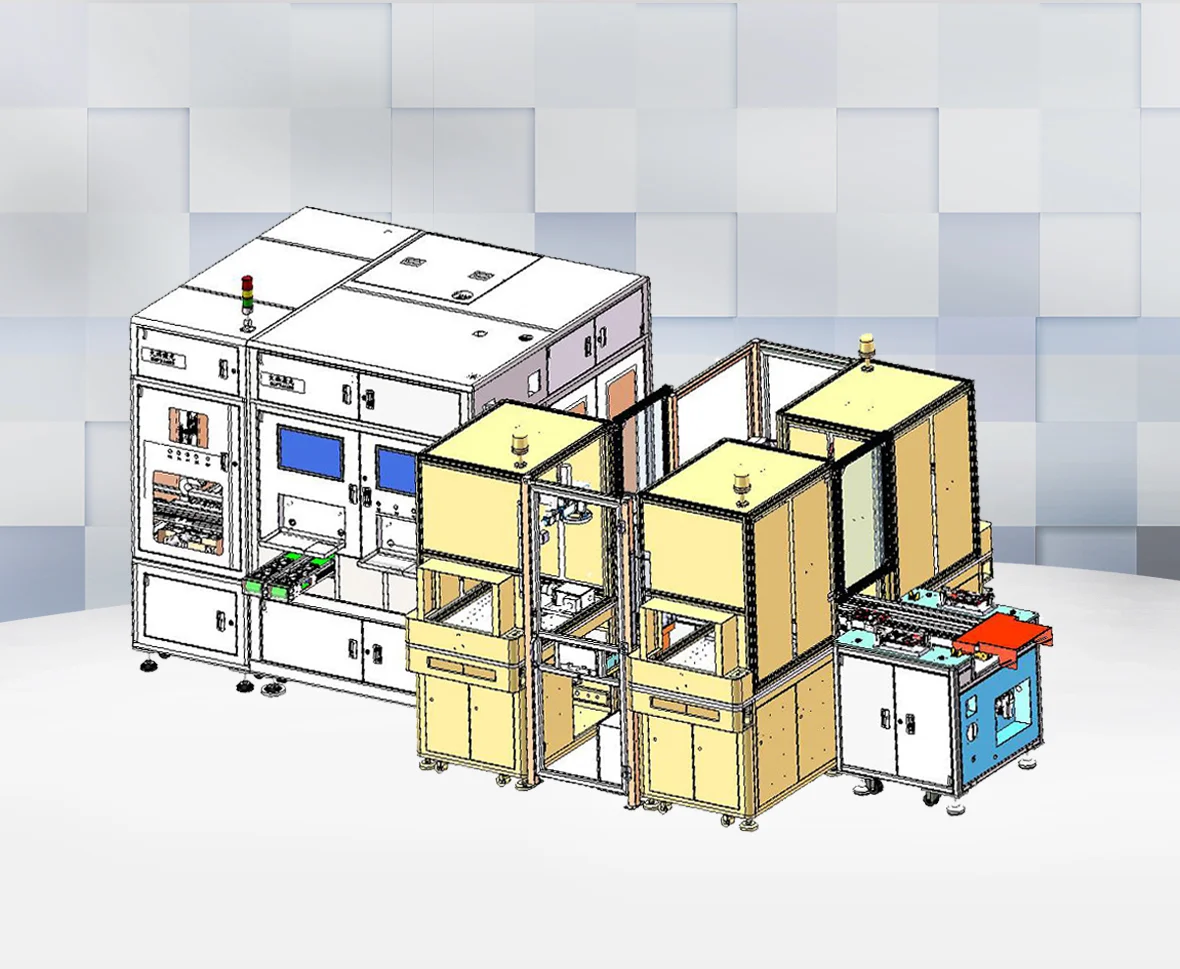

Rcam Trim automated assembly machine
Brief Description
The machine is mainly used in the assembly and welding for the fixed structure parts of the back cover camera of IT products such as mobile phones and PADs.
Categories
Rcam automated assembly machine
Contact Us
Features:
1, The fixture is exquisitely designed, durable and easy for maintenance.
2, Multi-system data interaction, good anti-interference, with 99.9% or higher data upload success rate.
3, Multi-functional integration, high stability, CT 12s, yield over 99.5%.
4, The equipment CT is designed to be 12S, 10 hours per shift, and with productivity 3000PCS.
5, The equipment adopts the automatic loading and unloading mode. For normal production, one person needs to receive the material at the receiving port, and two persons disassemble the jig auxiliary fixture in front of the oven, and the material handler pick and place the Tray disk, need 3.5 persons totally.
6, The equipment is with fixture traceability function and data upload system, the fixture 2D code corresponds with product 2D code.
2, Multi-system data interaction, good anti-interference, with 99.9% or higher data upload success rate.
3, Multi-functional integration, high stability, CT 12s, yield over 99.5%.
4, The equipment CT is designed to be 12S, 10 hours per shift, and with productivity 3000PCS.
5, The equipment adopts the automatic loading and unloading mode. For normal production, one person needs to receive the material at the receiving port, and two persons disassemble the jig auxiliary fixture in front of the oven, and the material handler pick and place the Tray disk, need 3.5 persons totally.
6, The equipment is with fixture traceability function and data upload system, the fixture 2D code corresponds with product 2D code.
Specification:
| Item | Specification |
| Dimension | 9160*3200*2300mm |
| Power supply | 3 phase, 220V |
| Air pressure | 0.5-0.7MPa |
| Power consumption | 39KW |
| Height for operation table | 900mm |
| Human-machine ratio | 3.5:1 |
