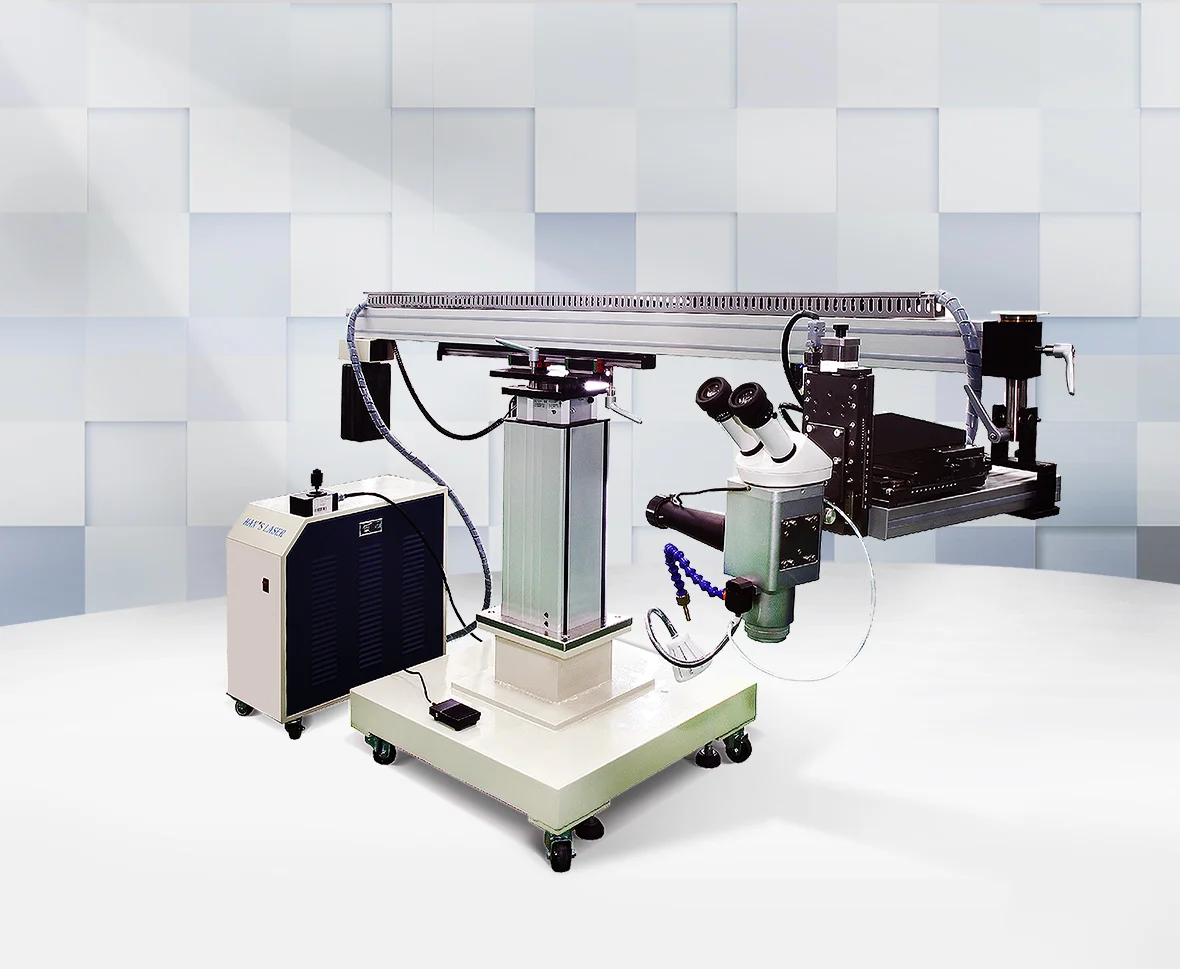

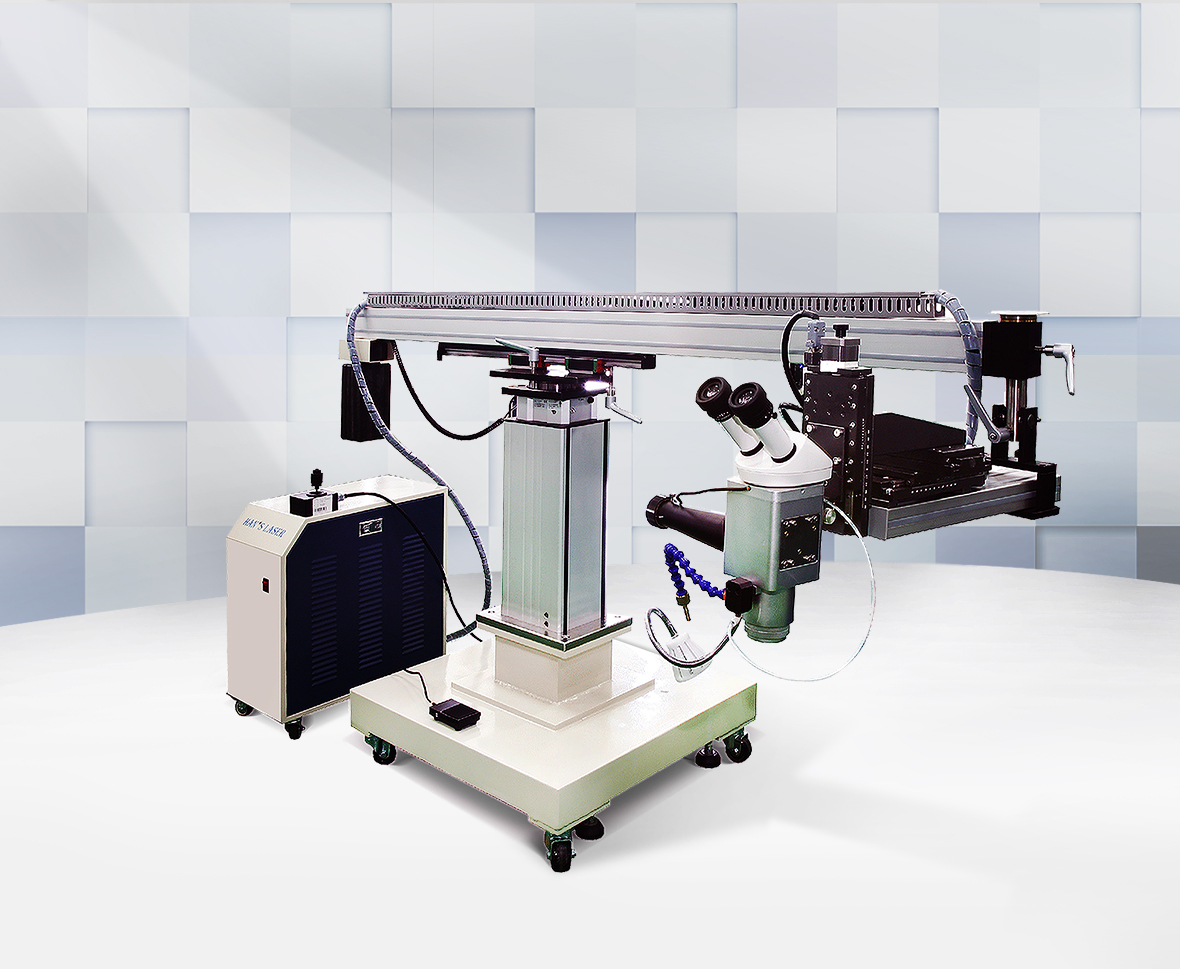

MOLD 302

Brief Description

It is commonly applied to mold manufacturing industries including mobile phone, digital product, automobile and motorbike.

Categories Mold repair welder

Features:

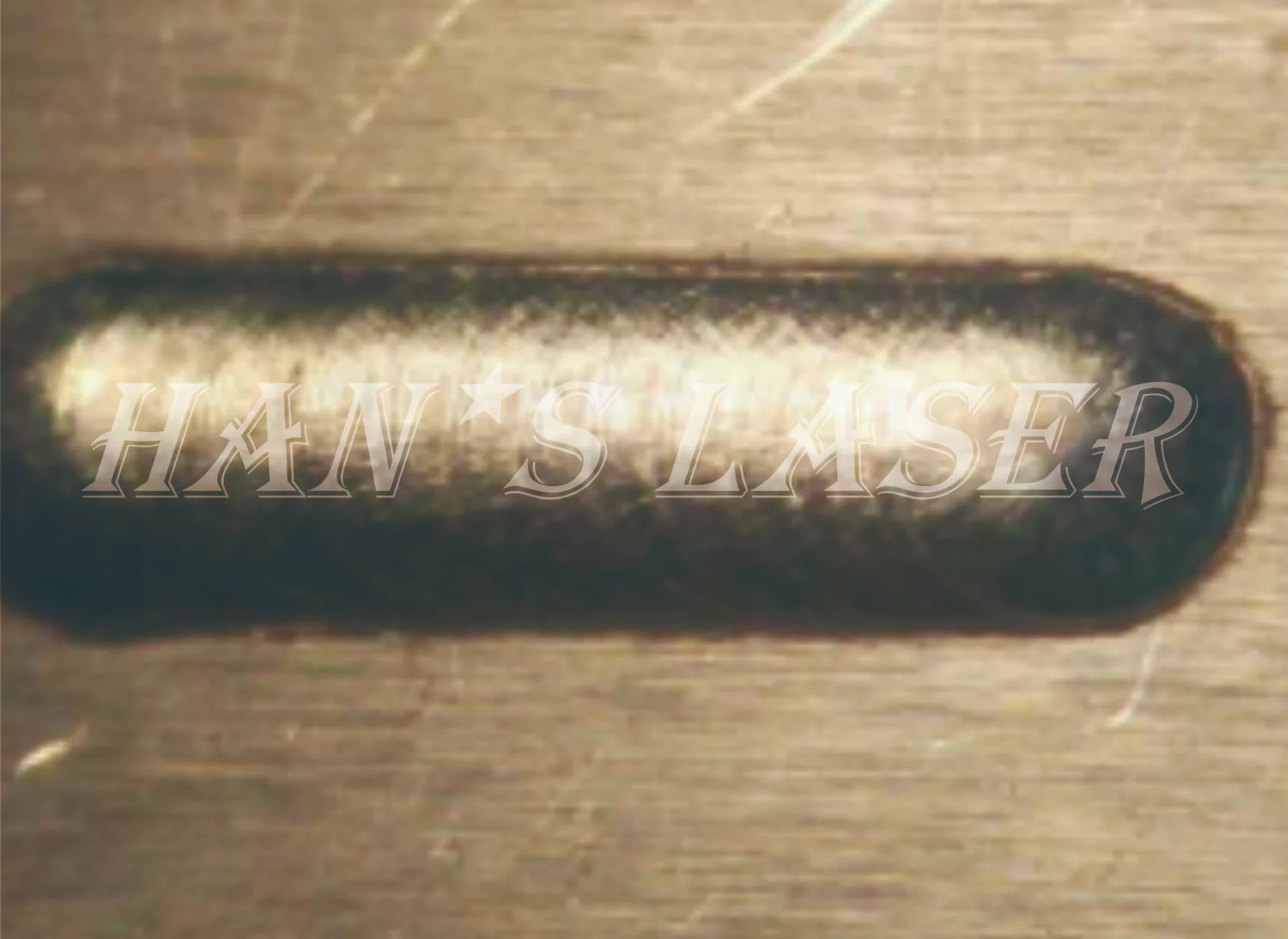

1. Laser welding spot diameter is small, heat affected area is small and pore, collapse, thermal strain and metallographic structure change will not occur after welding, greatly decreasing post-welding treatment process.
2. Microscope co-axis observing focusing positioning aiming, liquid crystal light valve and full reflection eye protection devices.
3. Stable operation, the ability to realize continuous working and intermittent working.
4. XYZ high rigid worktable, high repeated positioning precision.

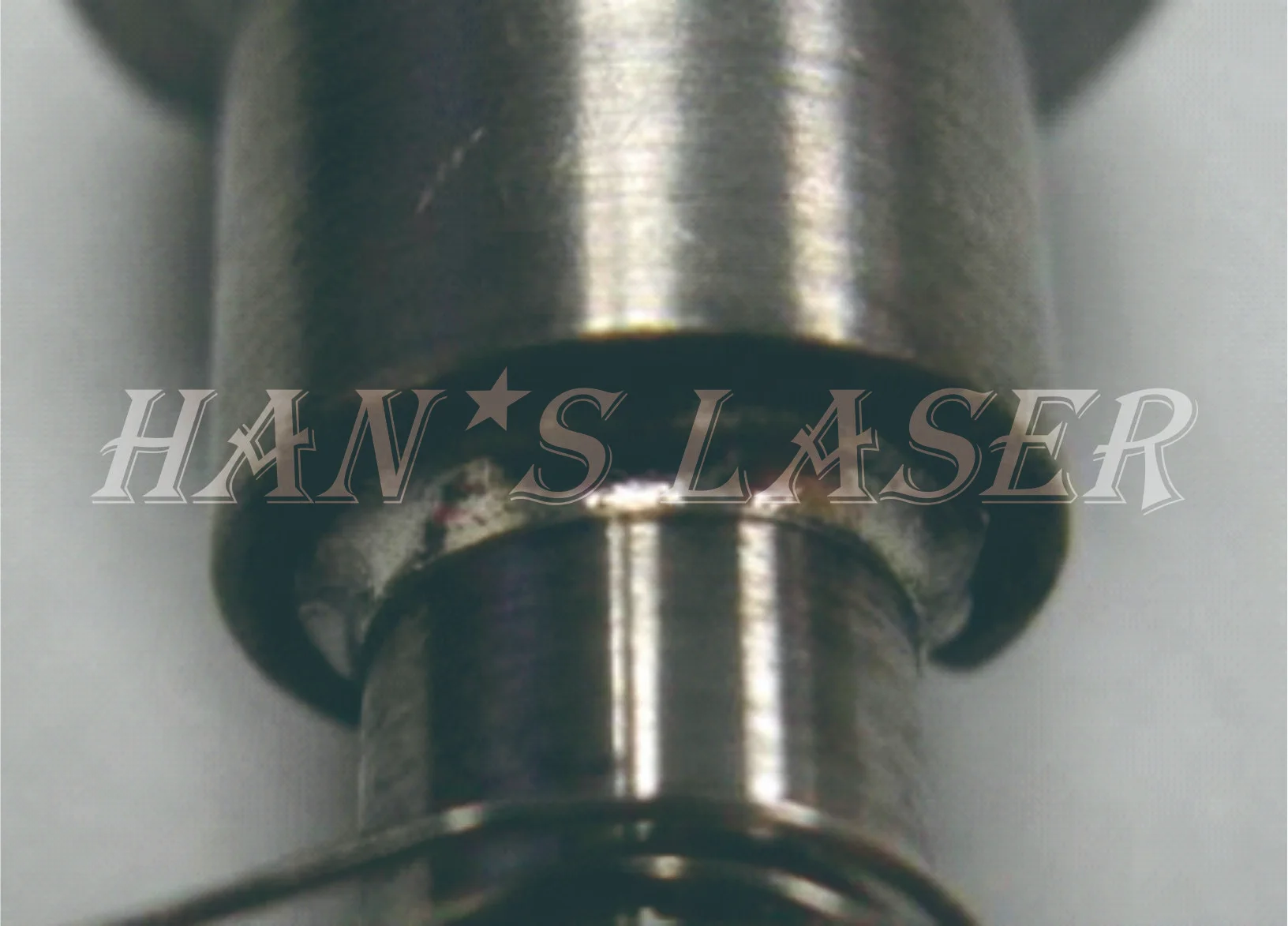

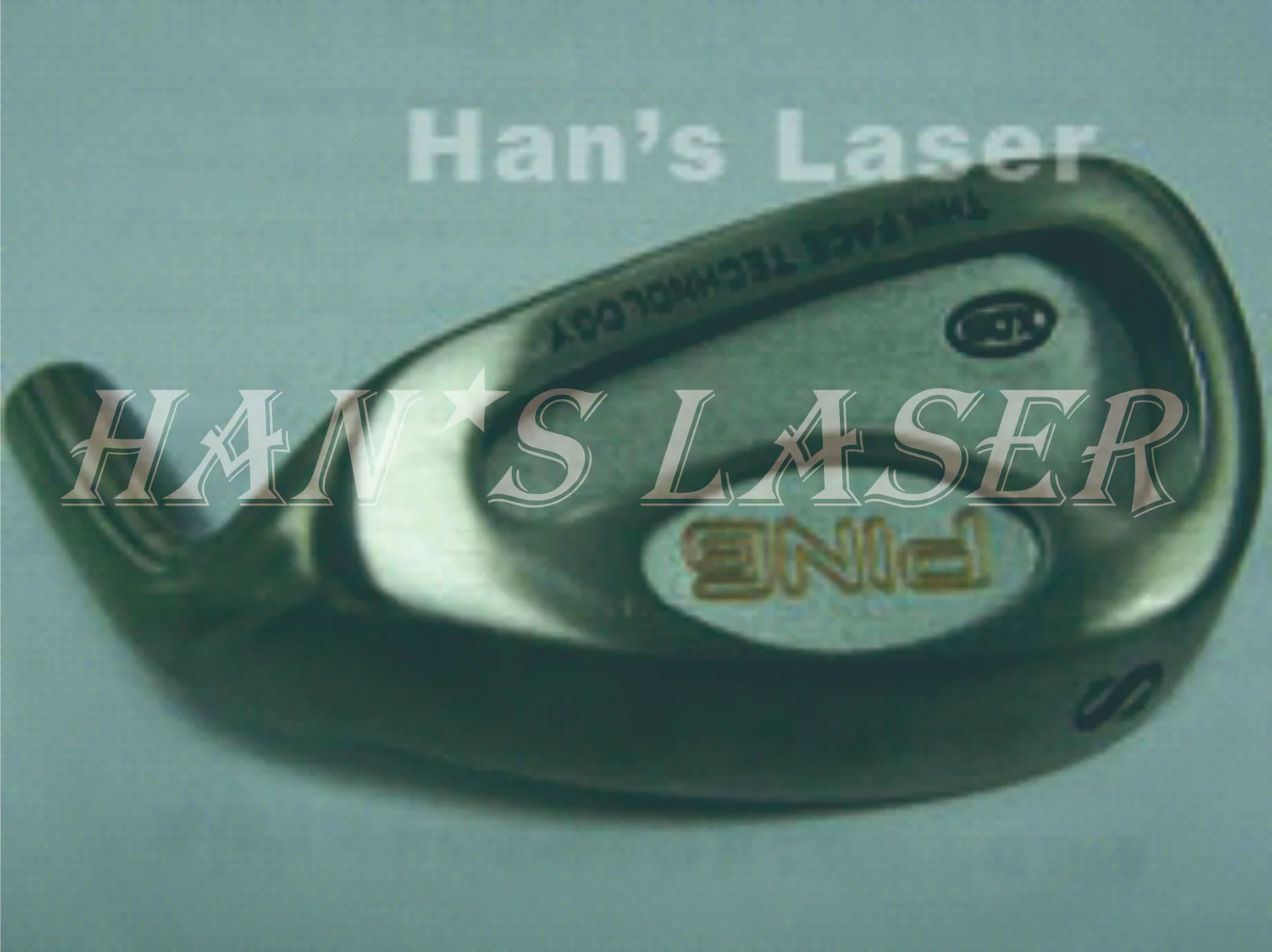

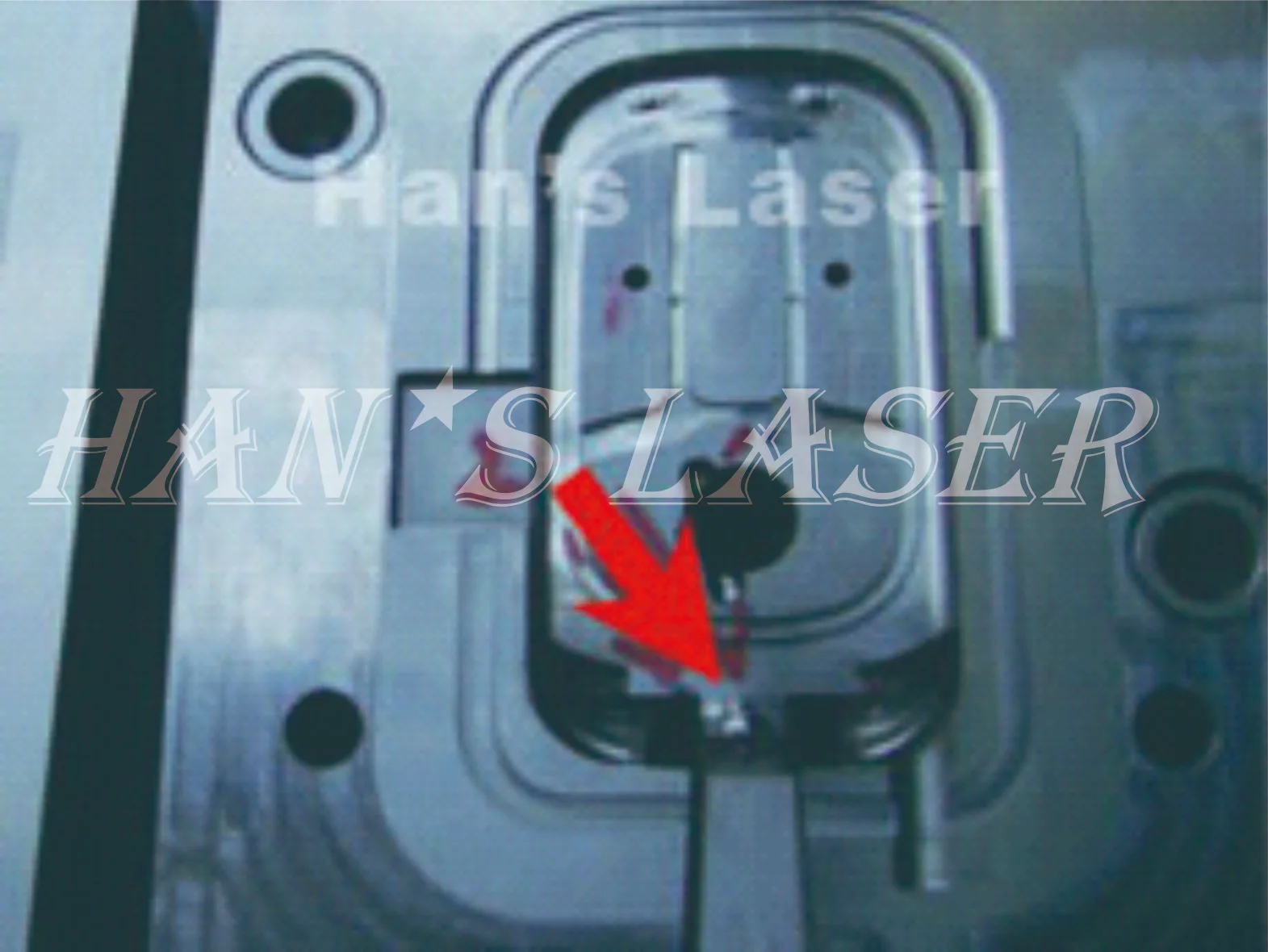

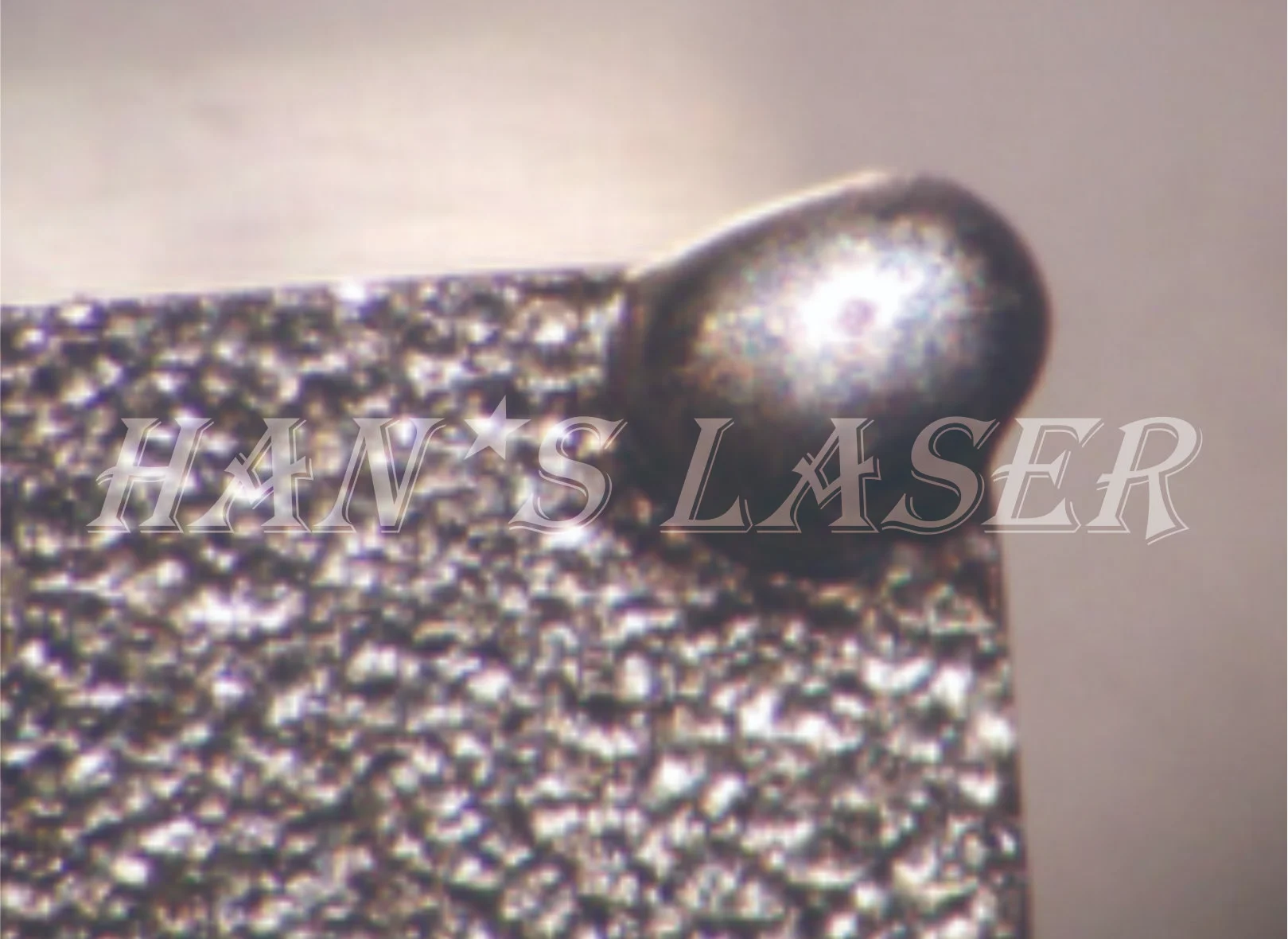

5. It can effectively repair all cracks, chips and damages.

Specification:

Model	MOLD301	MOLD302
Control mode	Single-chip microcomputer	Single-chip microcomputer
Manipulation device	Industrial control rocker	Industrial control rocker
XY axes stroke	100mm*100mm (step motor drive)	100mm*100mm (step motor drive)
Z axis lifting effective stroke	500mm (step motor drive)	500mm (step motor drive)
Worktable load	<80kg	<80kg
Observing system	Microscope (CCD monitor is optional)	Microscope (CCD monitor is optional)
Table size	600mm*800mm	600mm*800mm
Laser wavelength	1064nm	1064nm
Max. laser output power	300w	300w
Max. laser pulse energy	30J, 60J (optional), 90J (optional)	30J, 60J (optional), 90J (optional)
Min. spot diameter	---	---
Pulse width	≤50ms	≤50ms
Pulse frequency	≤200Hz	≤200Hz
Cooling mode	Water cooling	Water cooling
System power consumption	16.5kW	16.5kW
Power demand	220V/50Hz 3kW	220V/50Hz 3kW
