SFP300

Brief Description

FP series is a new generation near-infrared semiconductor pumped fiber laser. With good beam quality, fiber transmission and high electro-optical conversion efficiency, It is mainly used for rapid welding thin materials.

Categories Fiber laser welder

Features:

1. High aspect ratio, thin line weld width, narrow heat affected zone, zero deformation, and fast welding speed.
2. Smooth and clean weld with or without simple process after welding.
3. High weld strength, no porosity, eliminates the impurities of the base metal.
4. The microstructure can be refined after welding, Weld strength is at least equal to or exceeds base metal strength.
5. Tiny laser spot can be precisely positioned and easily automated.
6. Suitable dissimilar metal welding.
7. Excellent for spot welding, butt welding, overlap sealing welding.

Applications:
● Battery welding, pipe welding, thin steel plate welding

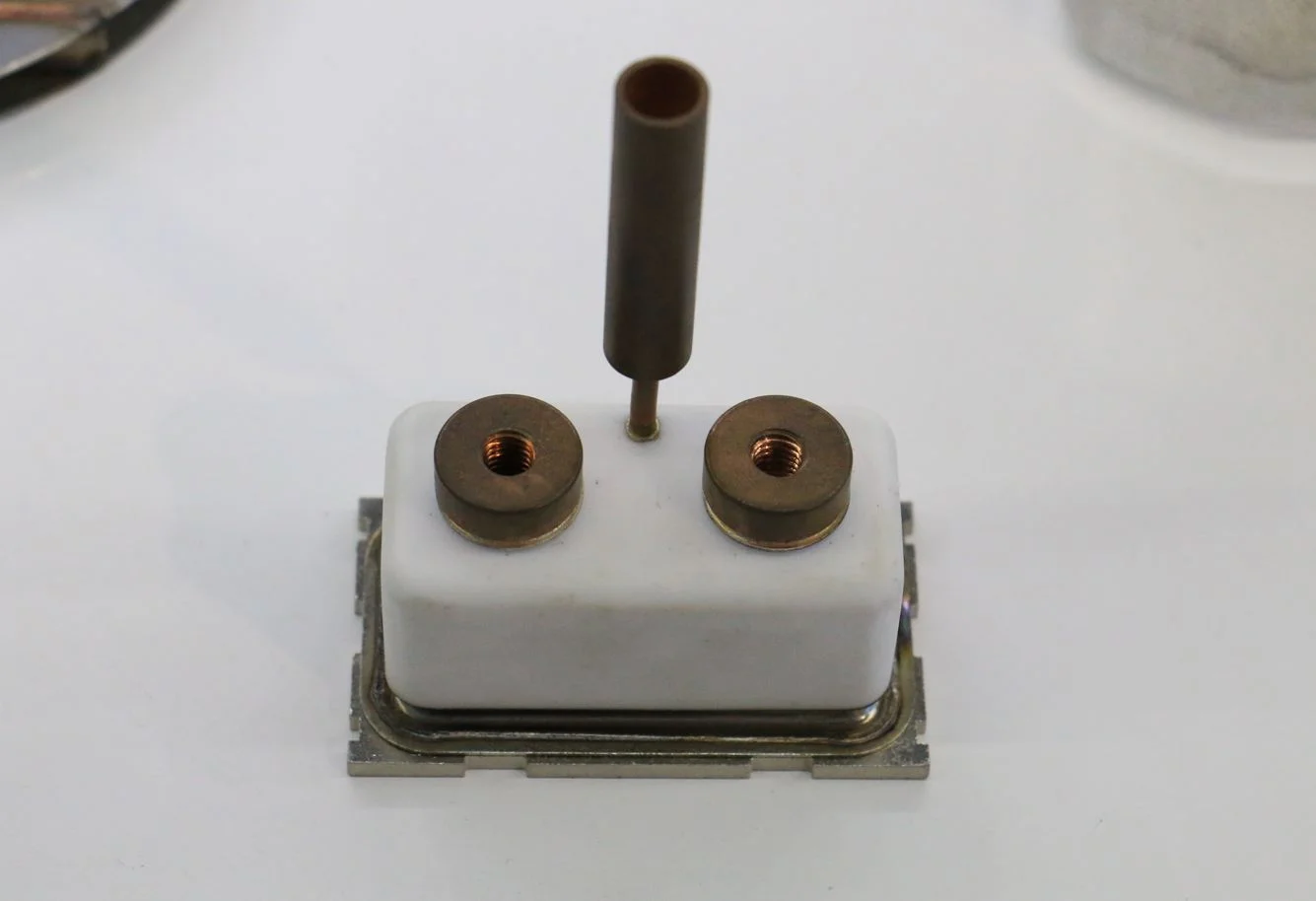

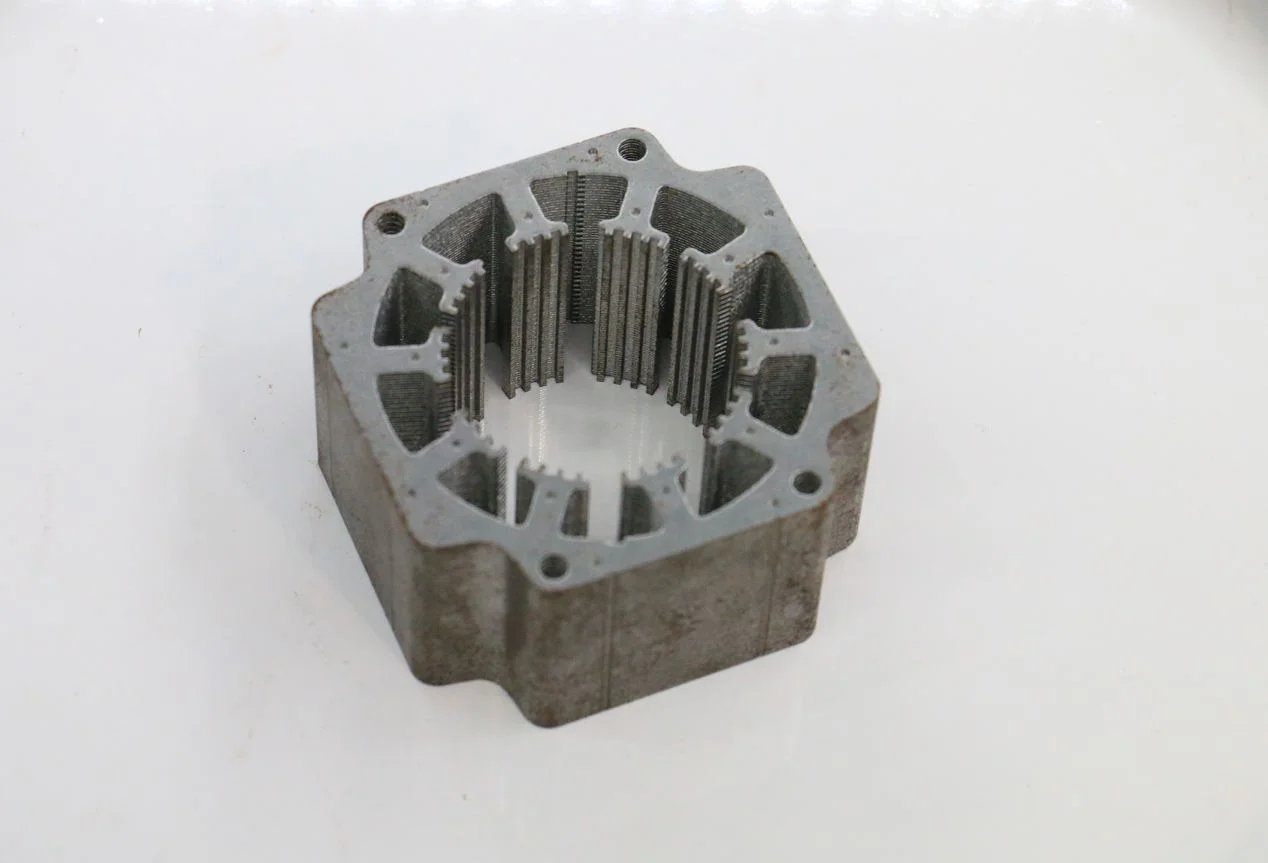

● Electronic components, instrumentation, medical equipment, small metal parts welding

Material,
● Stainless Steels, Carbon Steels
● Gold & Silver, Aluminum, Tool Steels
● Nickel Alloys, Brass & Copper, Titanium

Specification:

Laser model	FP150	FP300	SFP150	SFP300
Laser wavelength	1070nm	1070nm	1070nm	1070nm
Working mode	Continuous/pulse	Continuous/pulse	Continuous/pulse	Continuous/pulse
Max. laser average power	Pulse 150W/ continuous 250W	Pulse 300W/ continuous 300W	Pulse 150W/ continuous 250W	Pulse 300W/ continuous 300W
Max. laser peak power	1500W	3000W	1500W	3000W
Max. laser pulse energy	15J	30J	15J	30J
Pulse width	Pulse 0.2-50ms	Pulse 0.2-50ms	Pulse 0.2-50ms	Pulse 0.2-50ms
Pulse frequency	≤5000Hz	≤5000Hz	≤5000Hz	≤5000Hz
Waveform number	≤50 groups, each group ≤16 segments	≤50 groups, each group ≤16 segments	≤50 groups, each group ≤16 segments	≤50 groups, each group ≤16 segments
Fiber output number	2 paths standard, 4 paths at most	2 paths standard, 4 paths at most	Single path	Single path
Max. beam split frequency	80Hz	80Hz	——	——
Fiber core diameter	200μm (standard)	200μm (standard)	50μm	50μm
Aiming positioning mode	Red light guide (CCD and monitor, optional)	Red light guide (CCD and monitor, optional)	Red light guide (CCD and monitor, optional)	Red light guide (CCD and monitor, optional)
Cooling mode	Forced air cooling (its own)	Forced air cooling (its own)	Forced air cooling (its own)	Forced air cooling (its own)
Main machine power consumption	<1.5kW	<1.8kW	<1.5kW	<1.8kW
Power demand	220V±10%, 50/60Hz	220V±10%, 50/60Hz	220V±10%, 50/60Hz	220V±10%, 50/60Hz
Dimension	600x900x900mm	600x900x900mm	560x440x177mm	630x440x220mm
