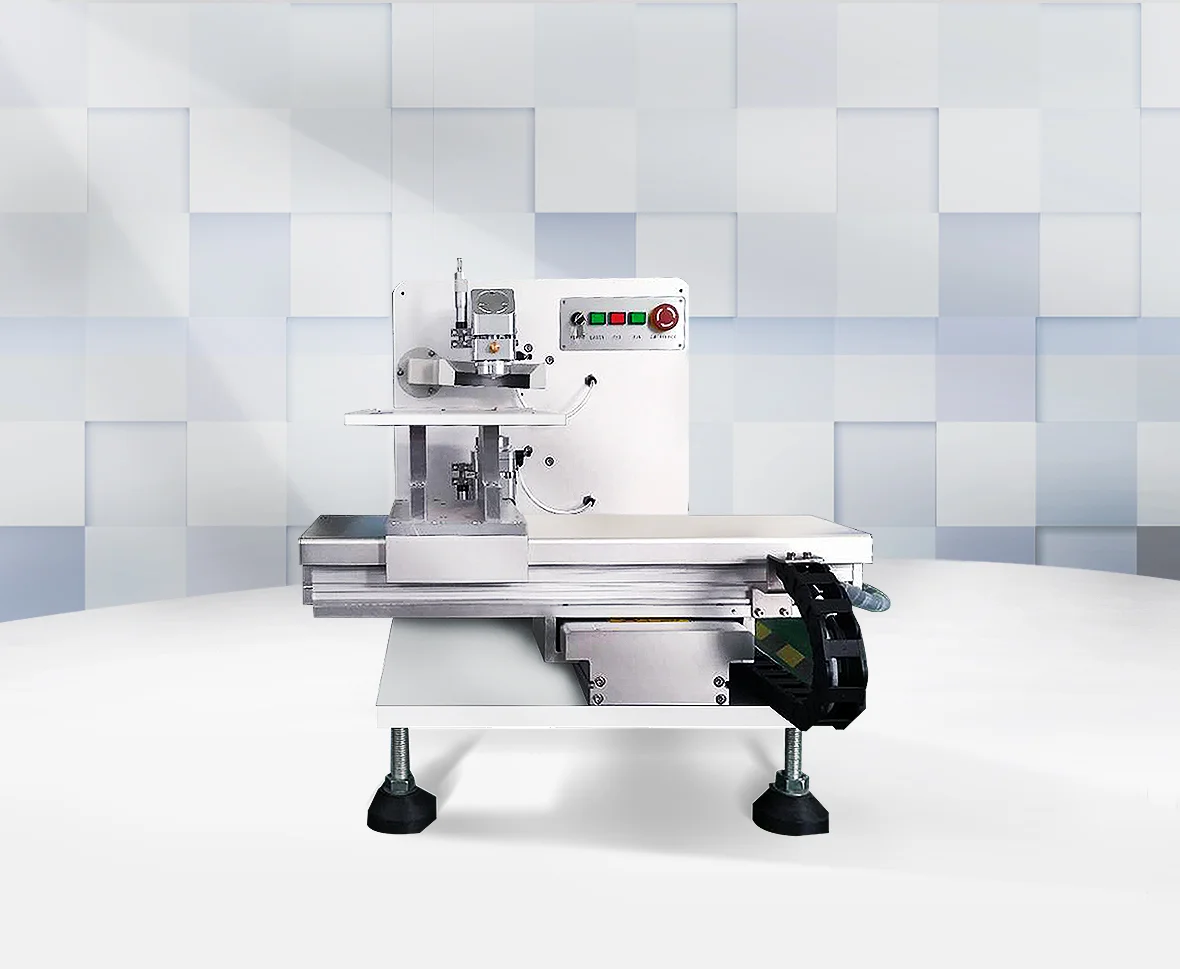

SP0201-CO2-30
Brief Description
Remove the insulating layer or enamel coat of the wires.
Categories
Wire-stripping
Contact Us
Features:
1. Imported CO2 30w AIR cooling laser generator.
2. Sealed upper and lower dual light path design.
3. Precise ball screw and linear guide.
4. The worktable is controlled by a multi-axis control system and its movement method and parameters can be visually programmed.
5. Various wire stripping products can be stored.
2. Sealed upper and lower dual light path design.
3. Precise ball screw and linear guide.
4. The worktable is controlled by a multi-axis control system and its movement method and parameters can be visually programmed.
5. Various wire stripping products can be stored.
Specification:
| No. | Machine model: | SP0201-CO2-30/SP0402-CO2-30 |
| 1 | Laser power: | CO2:30W |
| 2 | Laser wavelength: | 10.6 um |
| 3 | Cutting wire diameter: | 0.1- 2mm |
| 4 | Cutting speed: | Depends on materials, max to 300mm/S |
| 5 | Lens adjustable range: | ±8mm |
| 6 | Cutting process: | Straight line, I-shaped |
| 7 | Max cutting speed: | 300mm/s |
| 8 | Position system: | Relay on fixture |
| 9 | Worktable position accuracy: | ≤± 0.05mm |
| 10 | Worktable repeated position accuracy: | ≤± 0.02mm |
| 11 | Control system： | Multi-axis control system |
| 12 | Cutting area（X×Y）： | 200mm×100mm (optional) /400mm×200mm |
| 13 | Machine size | 1350*630*500 |
Sample

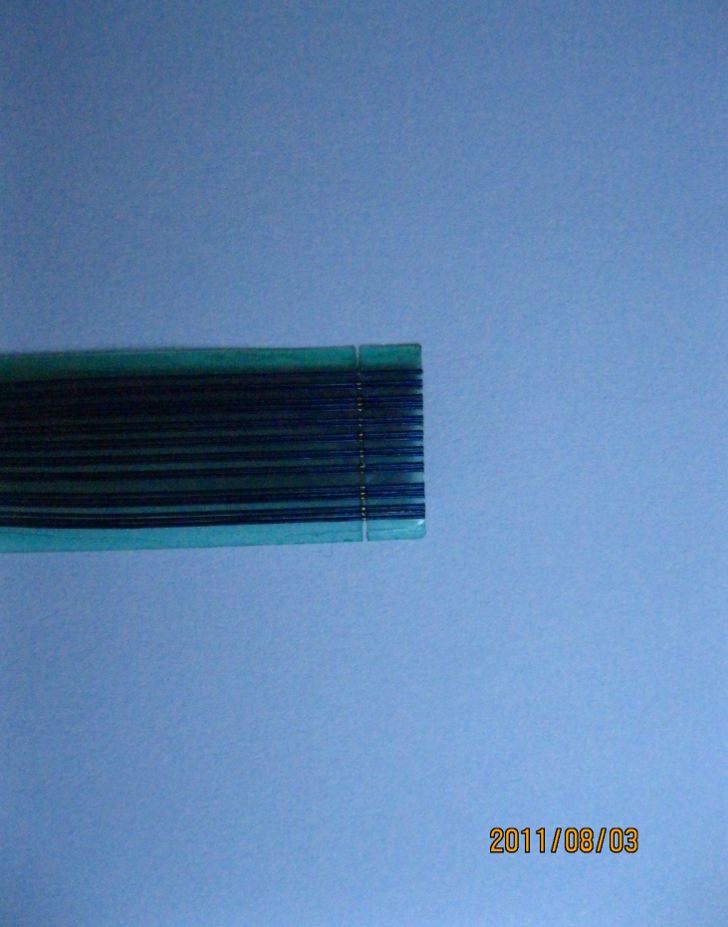

Wire stripping sample

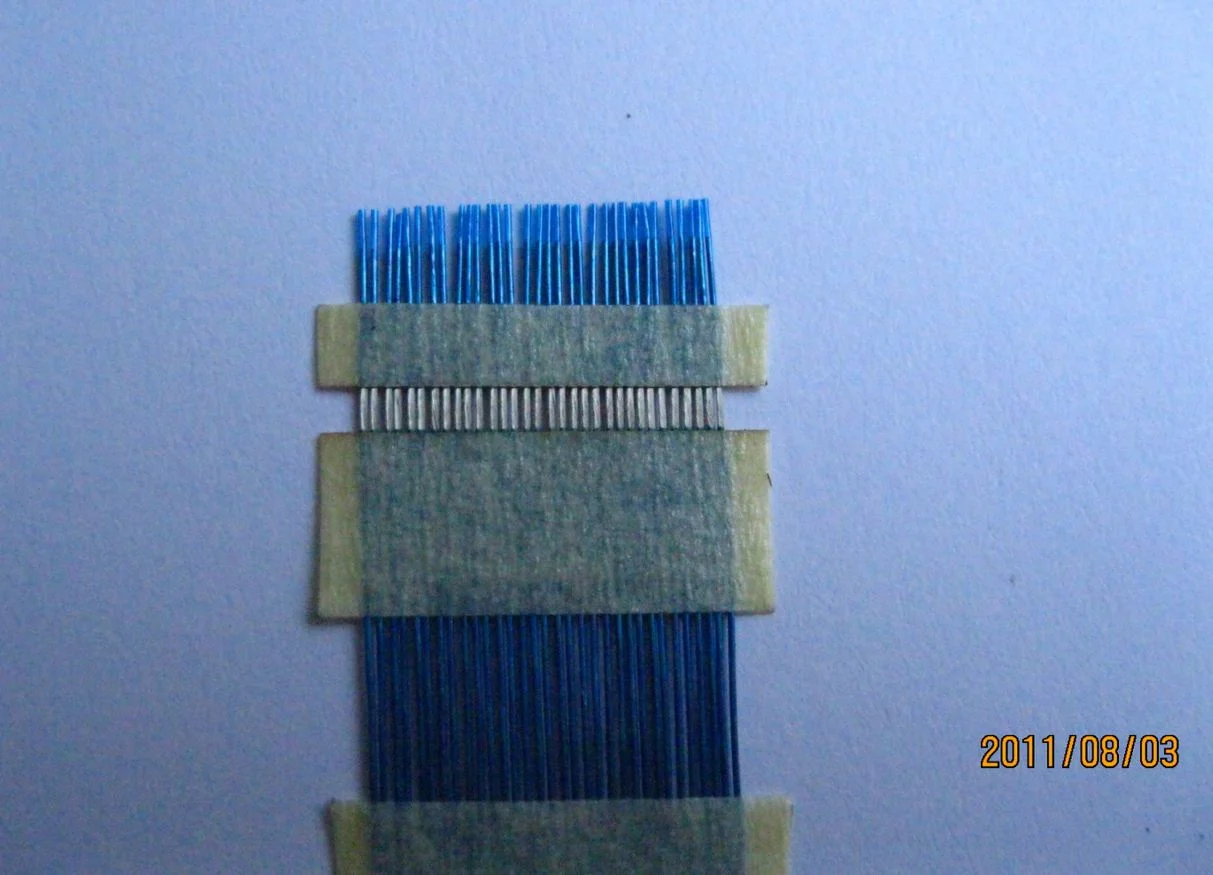

Wire stripping sample

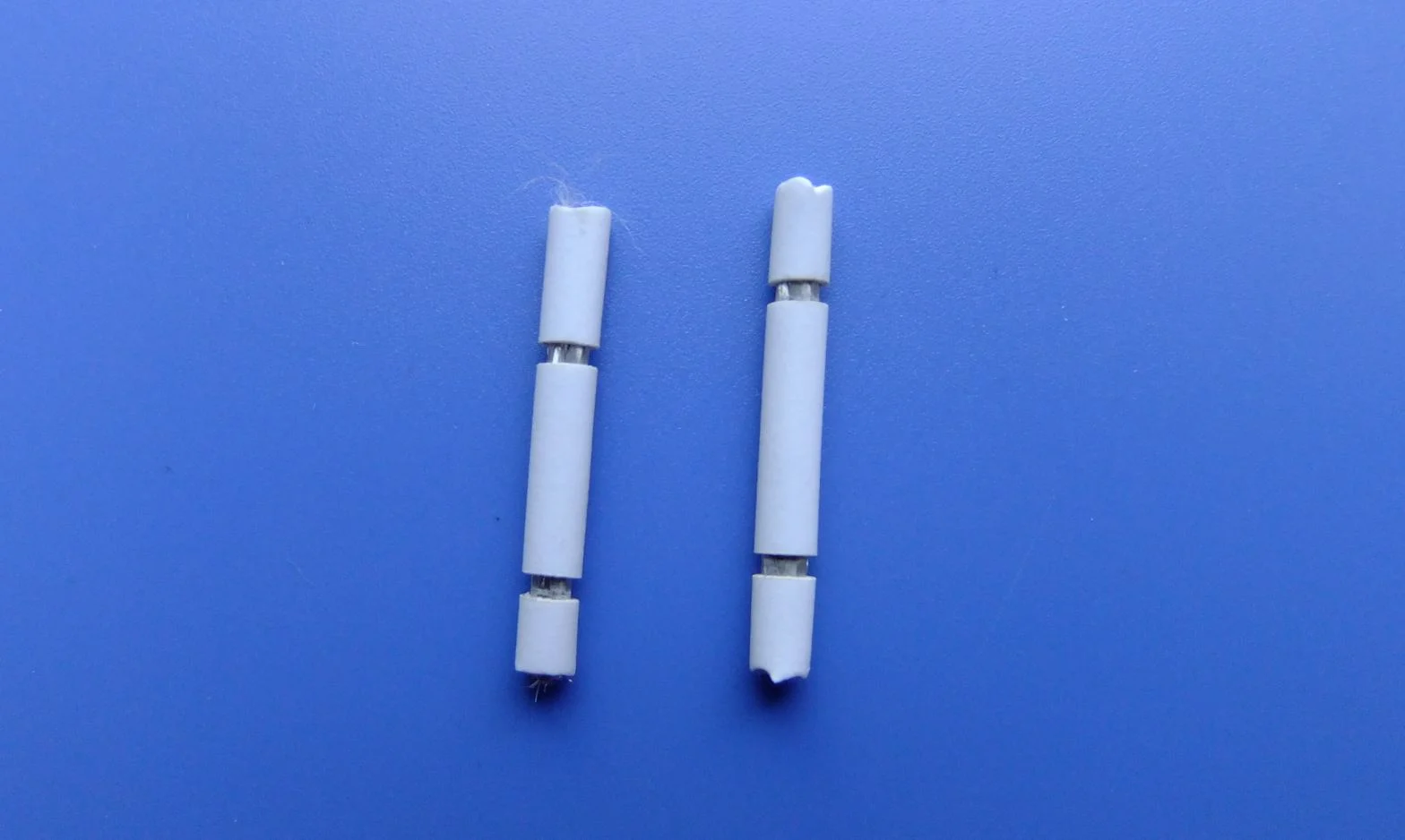

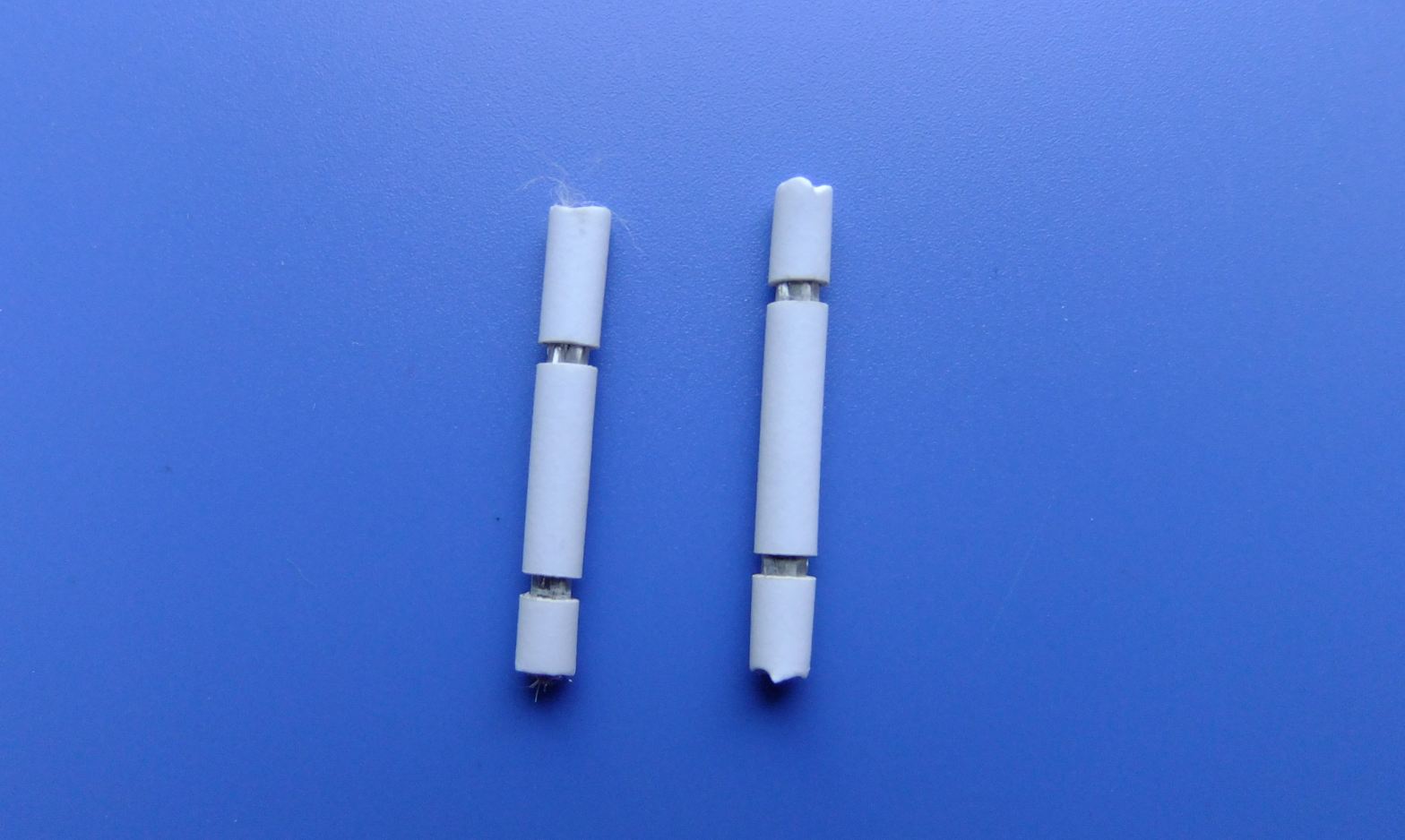

Wire stripping sample
