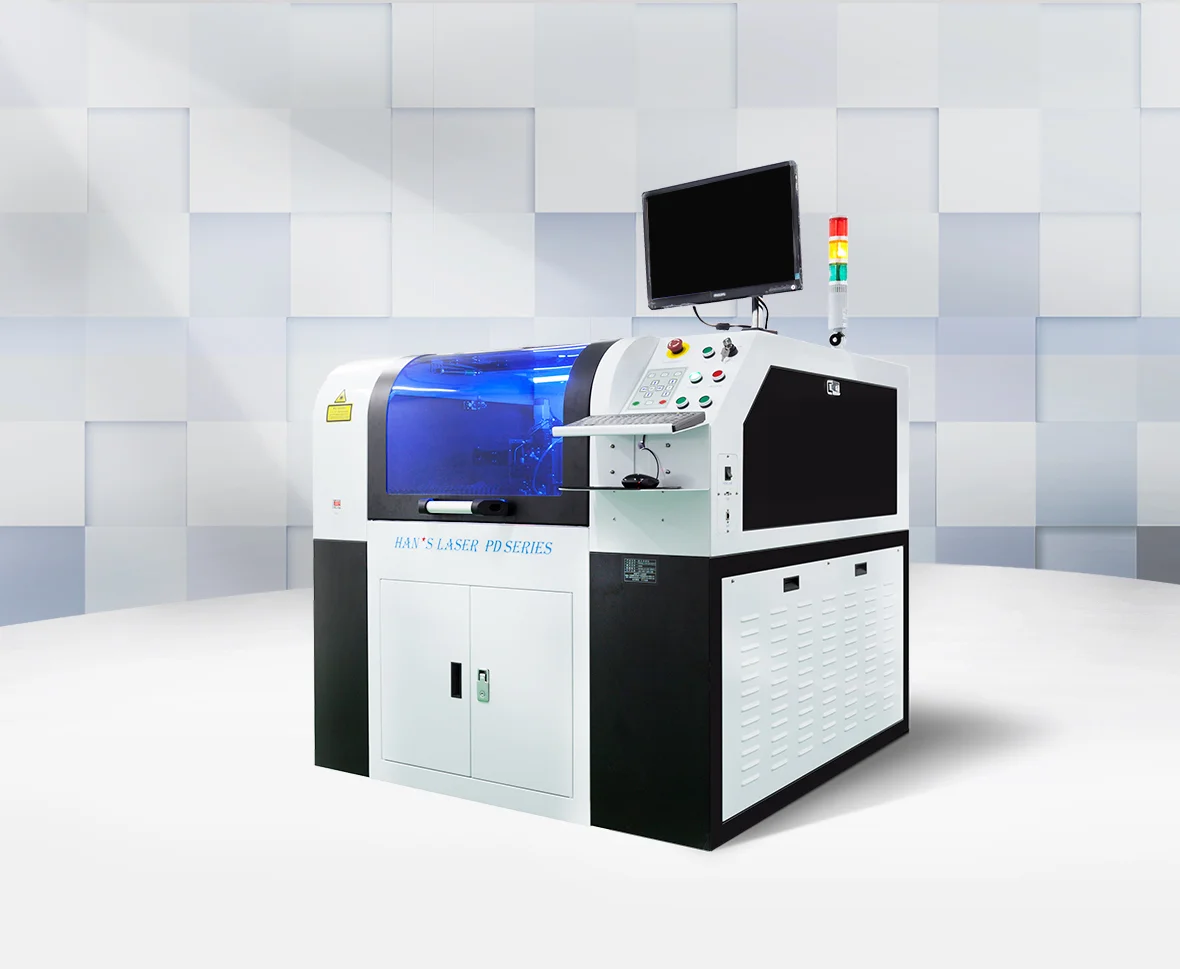

PD5060-CO2-60-CCD
Brief Description
Laser cutting is the process of cutting material by means of electron discharge as the energy source. The following diagram describe the principle of Laser cutting Succinctly.
Categories
Precision cutting
Contact Us
Features：
1. Steel frame integral machine base, Integral enclosed structure.
2. Flying optical path design.
3. Moving gantry of X axis, fast & quite driving of Y axis.
4. Importigh-precision, super-quiet&corrosion-proof lead-screw and guideway；
5. Imported RF laser tube
2. Flying optical path design.
3. Moving gantry of X axis, fast & quite driving of Y axis.
4. Importigh-precision, super-quiet&corrosion-proof lead-screw and guideway；
5. Imported RF laser tube
Specification:
| No. | Project name | Parameter |
| 1 | Laser wavelength | 9.3um |
| 2 | Laser power | 60W |
| 3 | X/Y/Z axis travel | 600/500/30mm |
| 4 | X/Y axis repeated positioning accuracy | ±0.01mm |
| 5 | X/Y axis positioning accuracy | ±0.02mm |
| 6 | Kerf width | 0.07~0.20mm |
| 7 | Machine outline size：L*W*H | 1400*1300*1300mm |
| 8 | Machine weight | 1560kg |
| 9 | electric demand（wave＜±5%） | Single-phase 220V，50Hz，35A |
| 10 | Whole power（without blower fan） | 4.5KW |
| 11 | Relative humidity | 45%-75% |
| 12 | Ambient temperature | 20℃-30℃ |
Sample

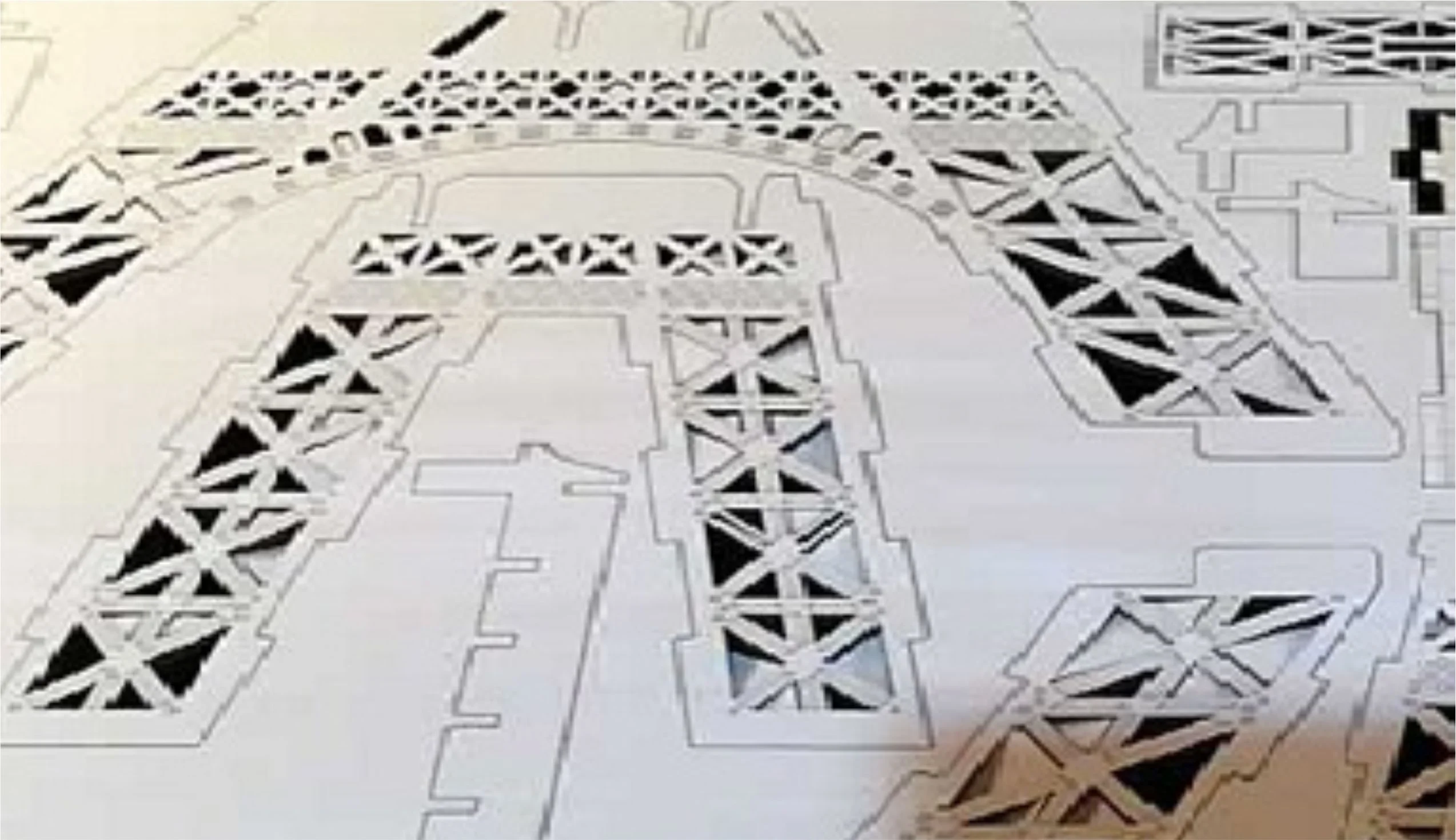

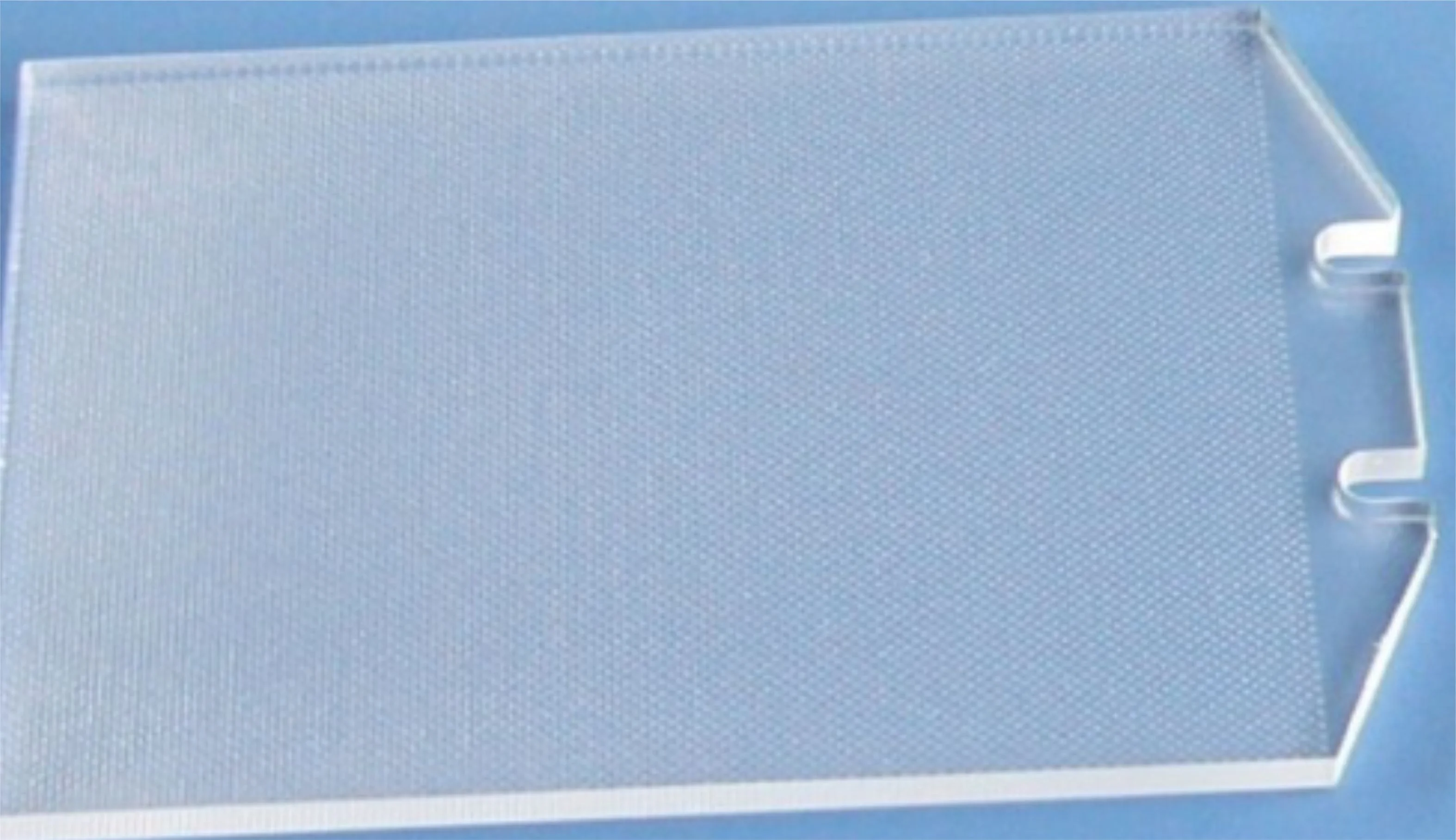

Cutting sample

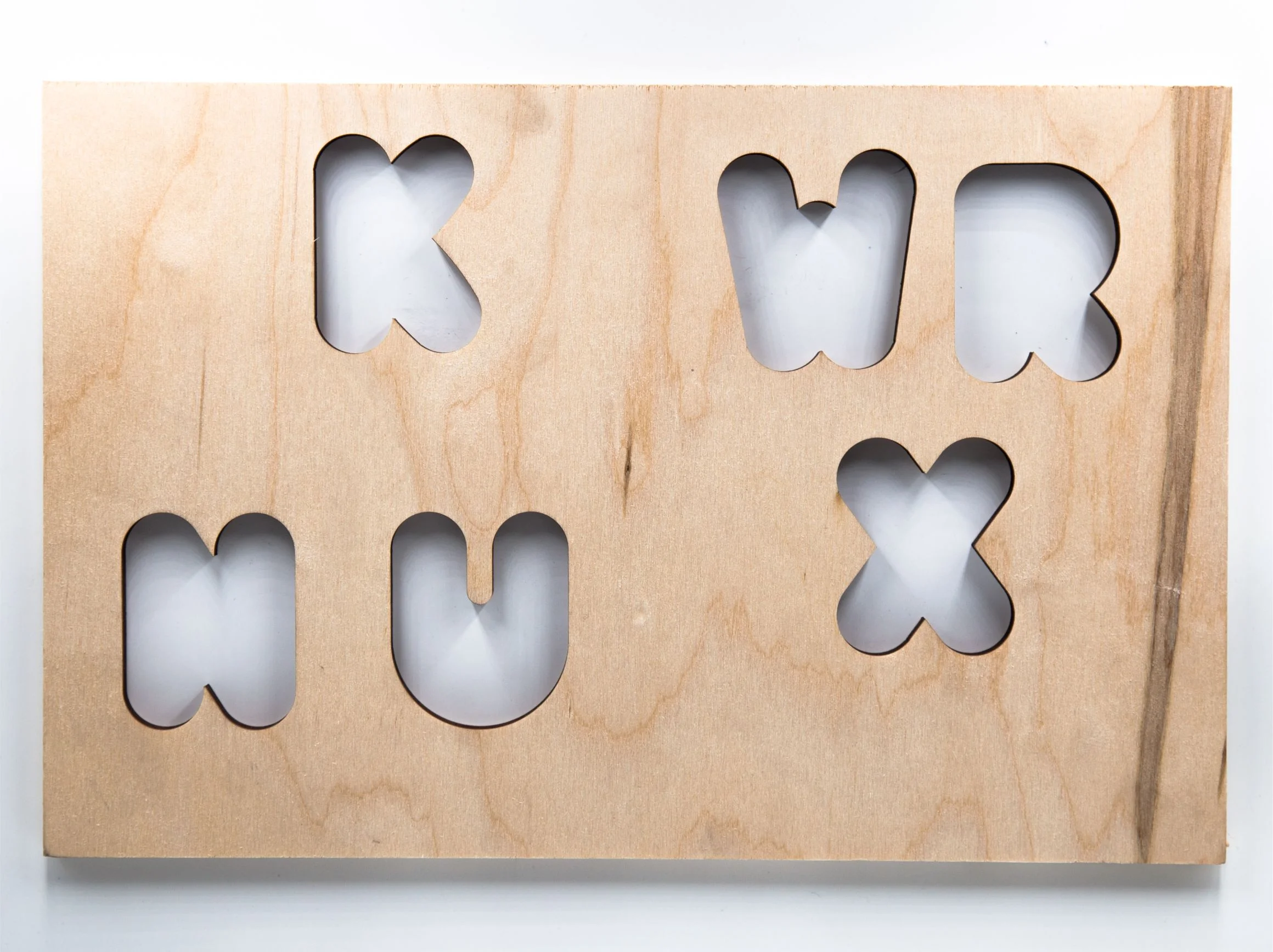

Cutting sample
Cutting sample
