Applications:
1. Medical: personalized custom prosthesis
Material: Ti Alloy

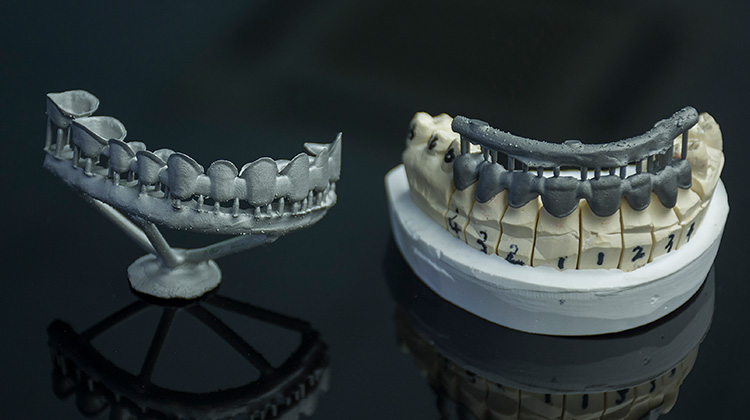

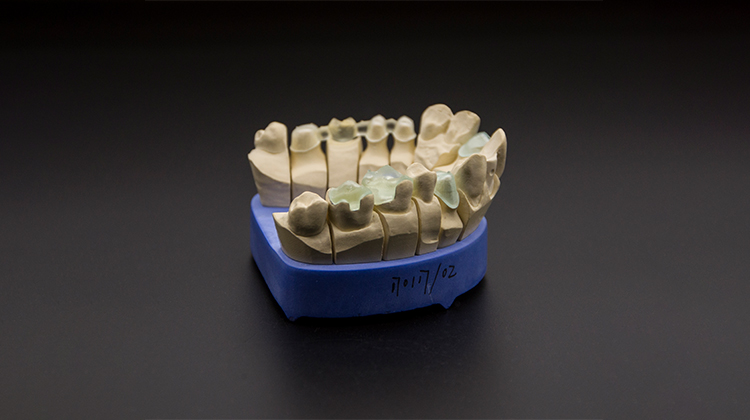

2. Teeth bridge and crown: personalized custom prosthesis
Material: CoCr Alloy
3. Stents: removable denture holder
Material: CoCr Alloy, TI Alloy
Material: Ti Alloy
2. Teeth bridge and crown: personalized custom prosthesis
Material: CoCr Alloy
3. Stents: removable denture holder
Material: CoCr Alloy, TI Alloy
Specification:
| External dimensions | 960×1200×1800 mm（W×D×H） |
| Forming dimensions | 100×100×100 mm（W×D×H） |
| Thickness | 20~80μm adjustable |
| Volume forming rate | 3~8 cm3/h |
| Laser type | Continuous fiber laser (200W) |
| Scanner | back-focusing, high precision scanner system |
| Scanning speed | 7 m/s |
| Laser spot diameter | 40~100 μm |
| Inert gas supply | N2/Ar,nitrogen making module can be selected |
| Inert gas consumption | 5~7bar，30~50L/h |
| Control Software | SLM30 printing system,development by han’s laser, can be customized |
| Data format | STL |
| Processing material | 316L,17-4PH,COCR,TI64(Metal powder material) |
| Power supply | AC/220V，50/60Hz，3KW |
| Equipment weight | 800Kg |
| Equipment operating environment | T 15~30，H 40~70% |
| Safety explosion-proof | Execution standard GB/T15605-2008 dust explosion-proof pressure relief guide |

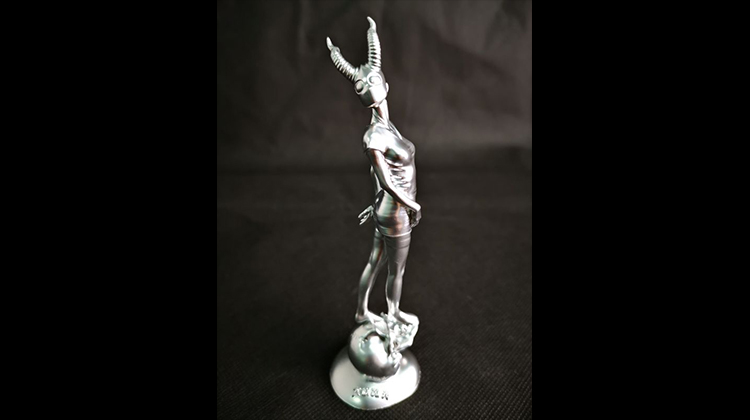

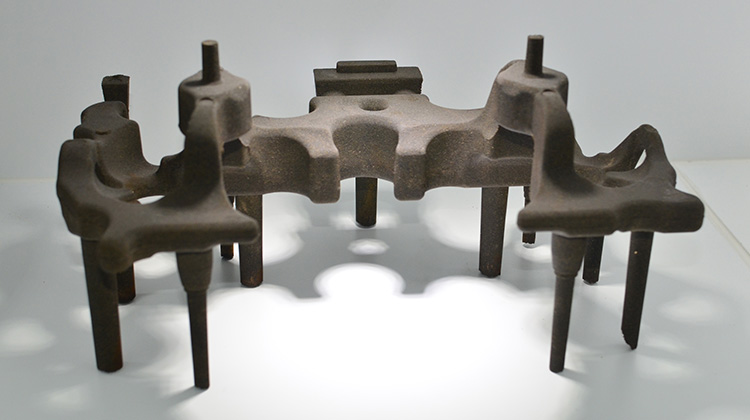

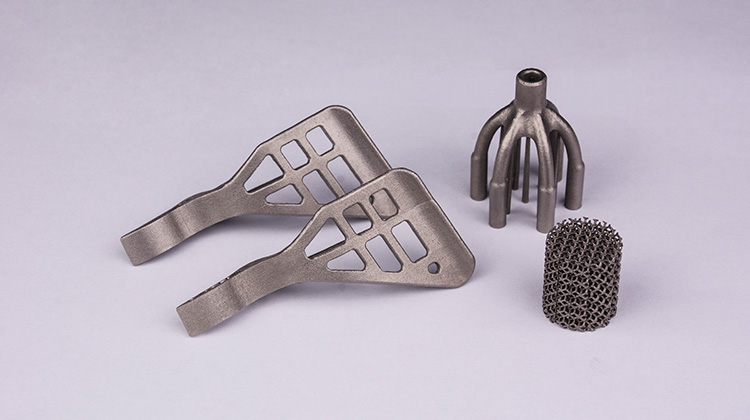

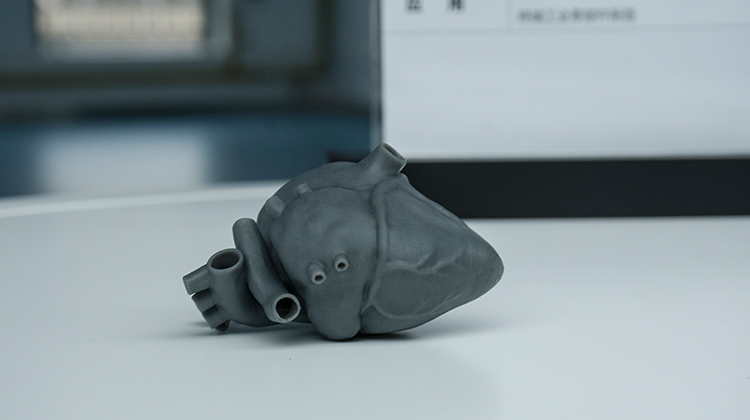

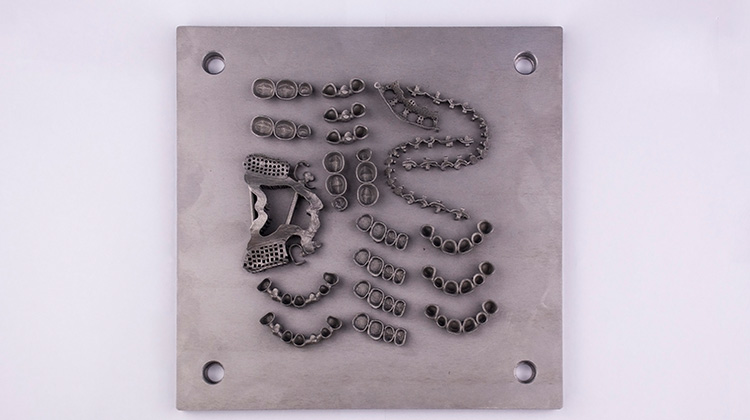

Sample
Printing sample
Printing sample
Printing sample
Printing sample
Printing sample
Printing sample
Printing sample
