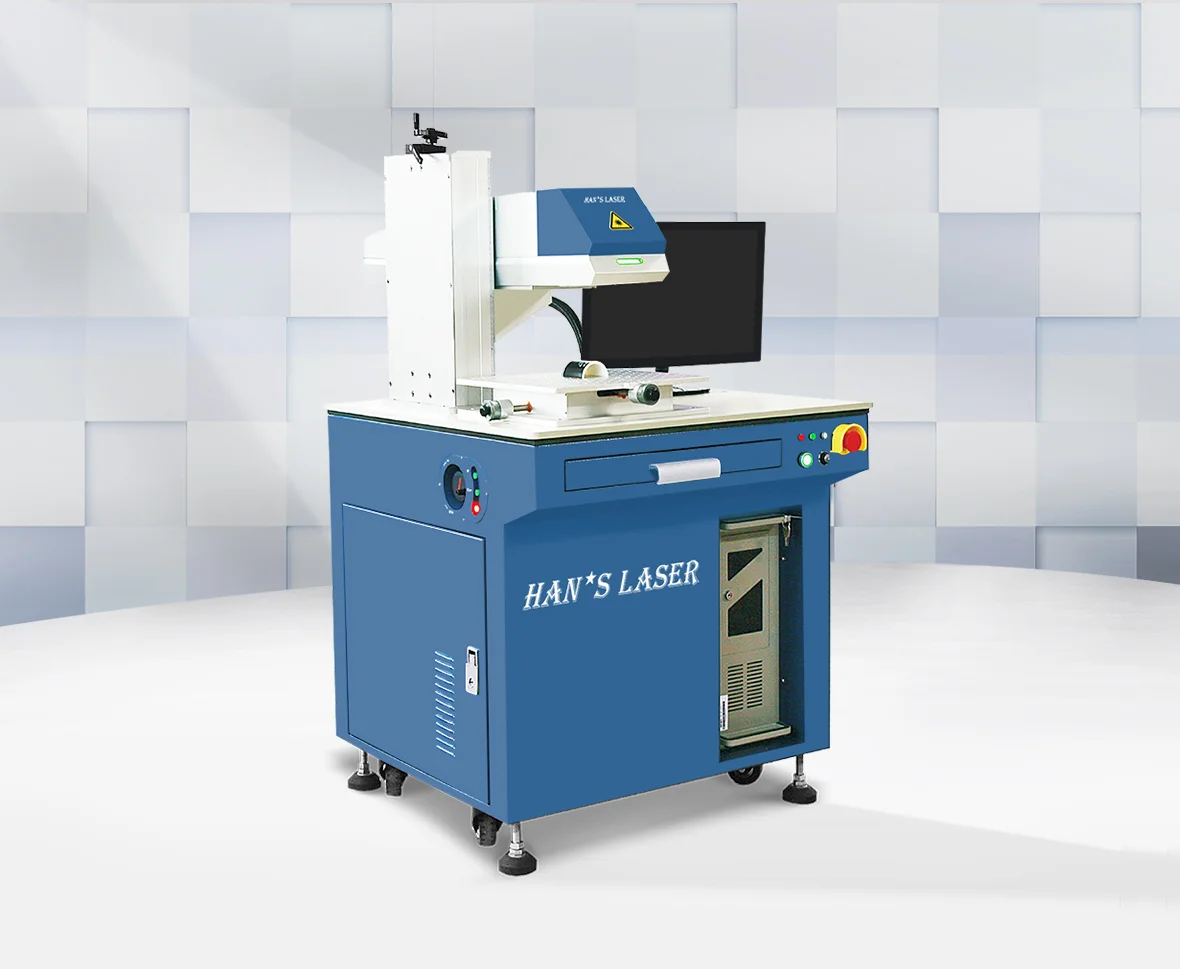

YLP-MDF-152
Brief Description
The YLP-MDF-152 laser marker is mainly applied on the sample which is not flat, such as column, sphere, irregular surface, smoothness and fineness such as clock and watch industry, jewelry industry, mould industry etc.
Categories
Fiber laser marking
Contact Us
Features：
1, Small and compact in size, air cooling
2, Fiber output, it is flexible to apply, the system is easy to make 3D processing
3, Good beam quality, TEM00 single-module output, after collimating diameter is 10mm, M2<1.8, divergence angle of beam is 0.24mrad
2, Fiber output, it is flexible to apply, the system is easy to make 3D processing
3, Good beam quality, TEM00 single-module output, after collimating diameter is 10mm, M2<1.8, divergence angle of beam is 0.24mrad
Specification:
| Model | YLP-MDF-152 |
| Laser output power | 20 / 30 / 50W |
| Beam quality M2 | ＜1.3 |
| Marking area | 160x160mm |
| Working distance | 197±2mm |
| Max surface height difference | ±20mm |
| Min. character size | 0.5mm |
| Pulse Repetion | 1＜F＜1000KHz |
| Cooling method | Air cooling |
| Power consumption | 0.5KW |
Sample

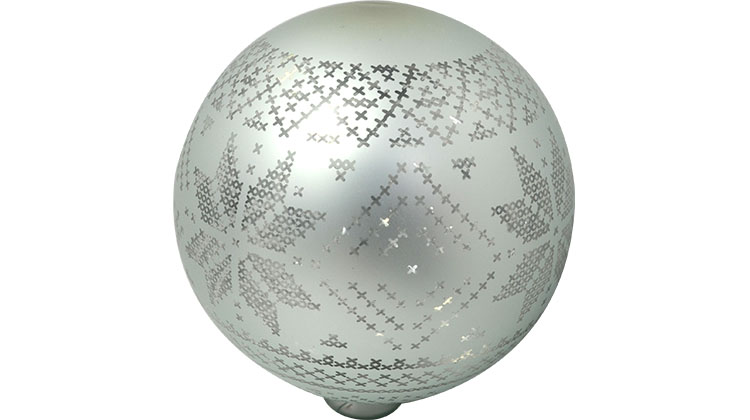

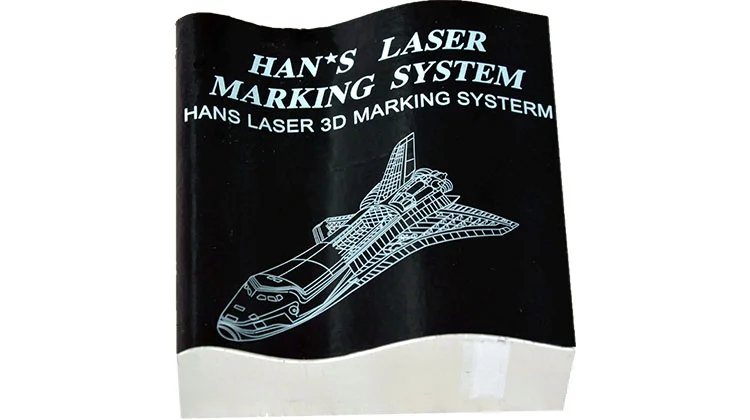

Marking sample

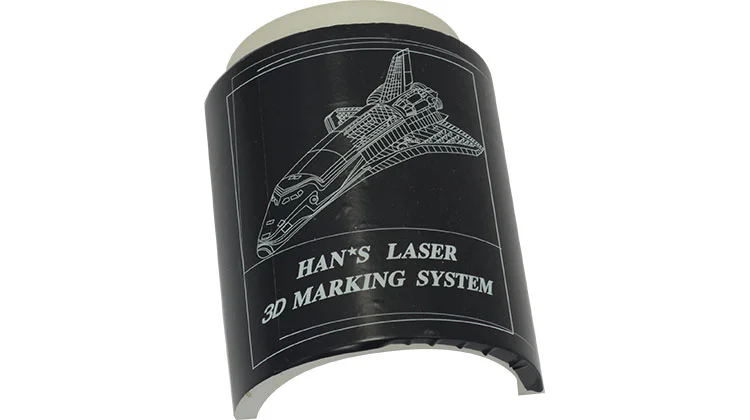

Marking sample

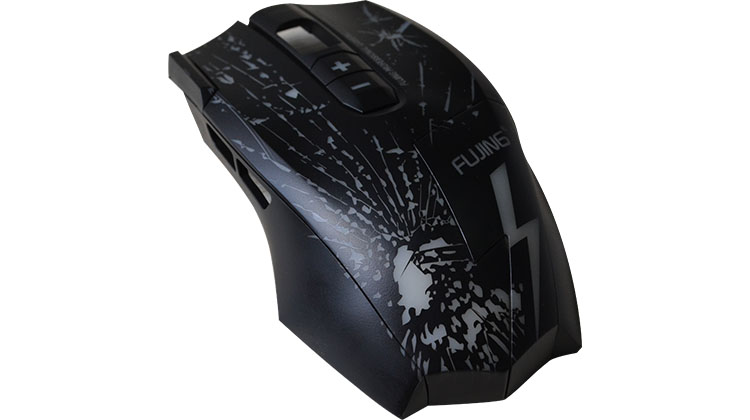

Marking sample

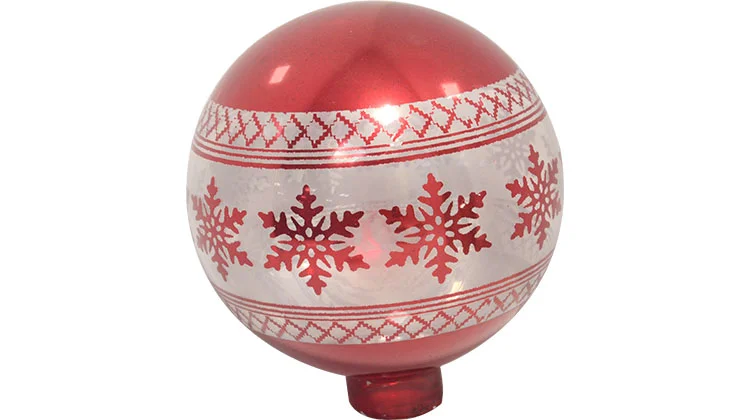

Marking sample

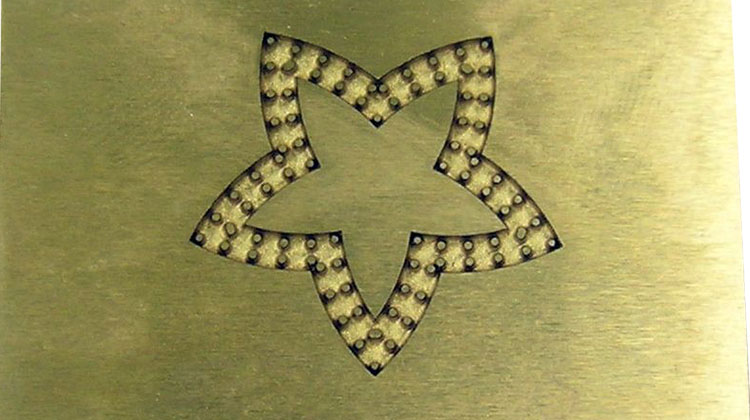

Marking sample

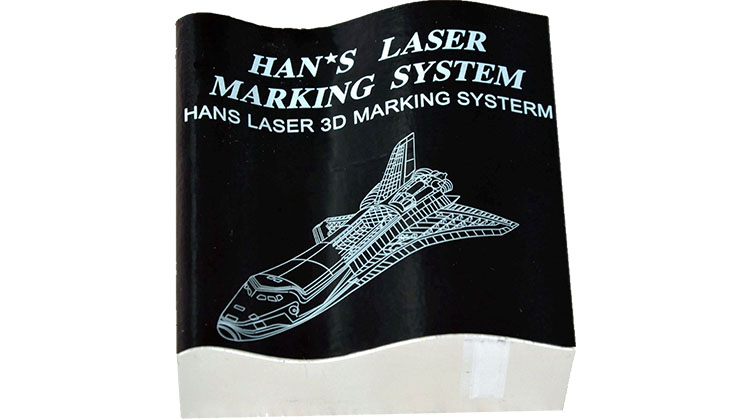

Marking sample

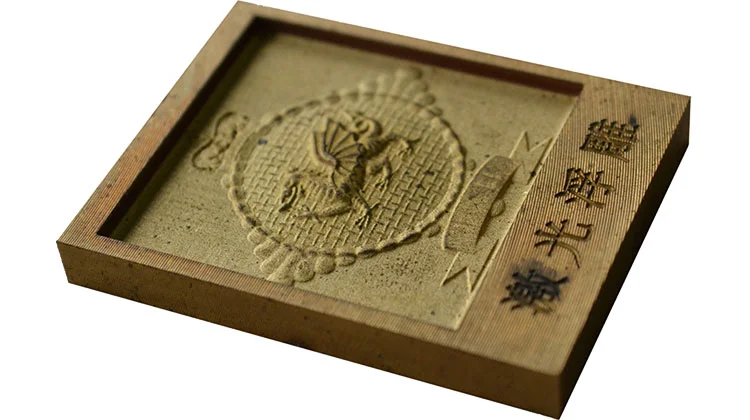

Marking sample
Marking sample
