Applicable for the digital products, wearable devices, automobile PCBA, mobile phone PCBA, FPC and so on.
Marking on the Rigid and flexible printed circuit board (PCBAs).
Support 1D barcodes, 2D Matrix, QR codes, logo, batch number marking.

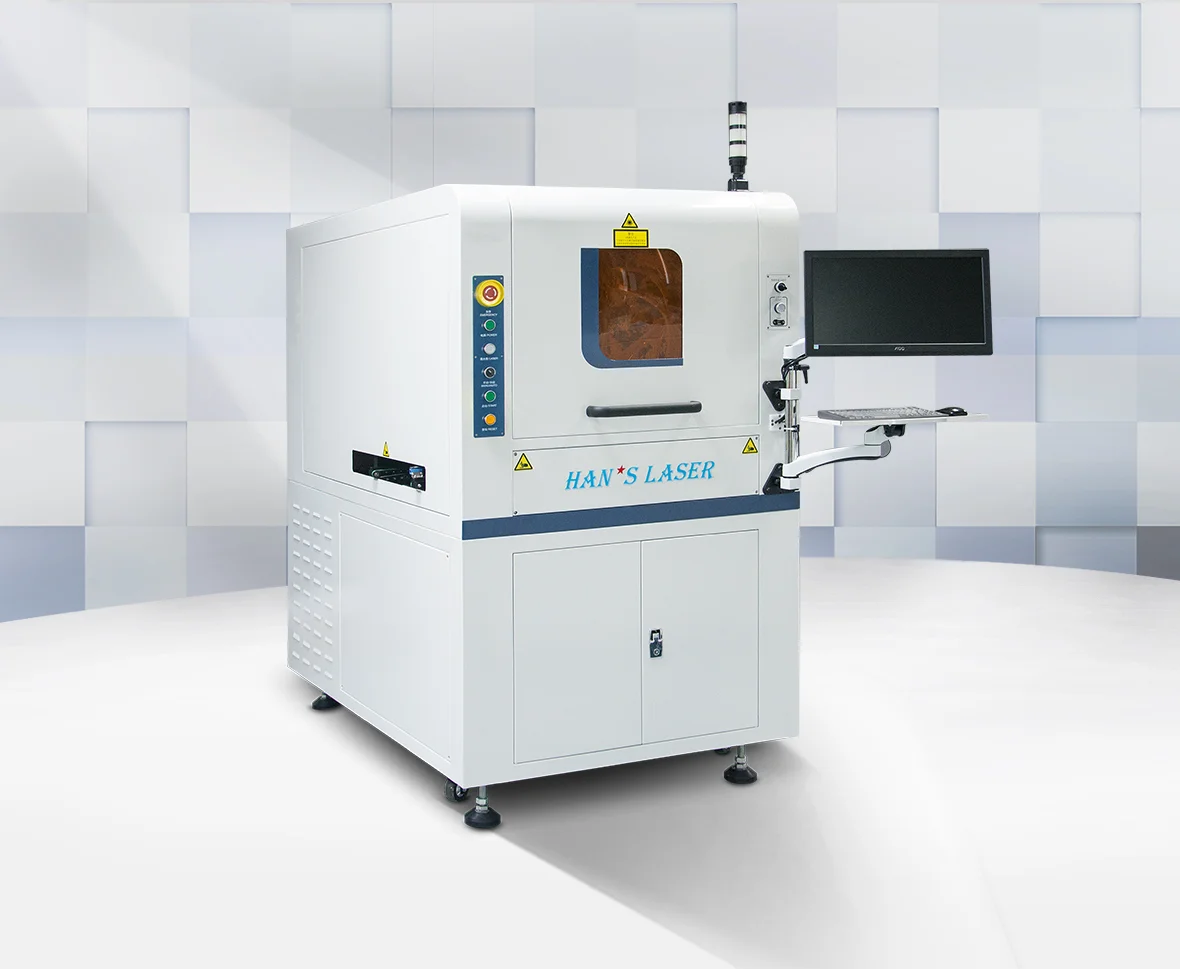

Built-in flip PCB marking system HDZ-PCB100F
Brief Description
Categories
PCBA & IC & Wafer marking
Contact Us
Features:
1. The equipment can achieve online (Integrated into SMT production line) automatic loading and unloading, positioning,
code marking, code reading and checking of PCBA.
2. The equipment technical parameters are mainly based on the SMEMA Standard of PCB industry.
3. Use the high-pixel CCD to do the positioning, code reading and checking.
4. It can connect with the customer’s MES system to read data.
code marking, code reading and checking of PCBA.
2. The equipment technical parameters are mainly based on the SMEMA Standard of PCB industry.
3. Use the high-pixel CCD to do the positioning, code reading and checking.
4. It can connect with the customer’s MES system to read data.
Specification:
| Model | HDZ-PCB100F | |
| Laser generator | Standard: CO2 Optional: UV laser, Green laser, Fiber laser |
|
| Laser marking area | 60*60mm | |
| Marking length | 100mm ± 2mm | |
| Applicable PCB board size | 50*50mm-460*460mm | |
| Cooling method | Air cooling | |
| Lifetime | 20000 hours | |
| Suitable substrate thickness | 0.6-3mm | |
| Suitable production line height | 900±20mm | |
| Final machining position accuracy | ±0.1 mm（CCD location） | |
| Gas supply | 0.6-0.8Mpa | |
| Power supply | 220V | |
| Power consumption | ＜ 2.2 KW | |
| Machine dimension |
1000mm*1600mm*1700mm |
|
| Weight | 600KG | |
| IP level | IP 54 | |
Sample
PCBA White Solder Mask Marking Sample

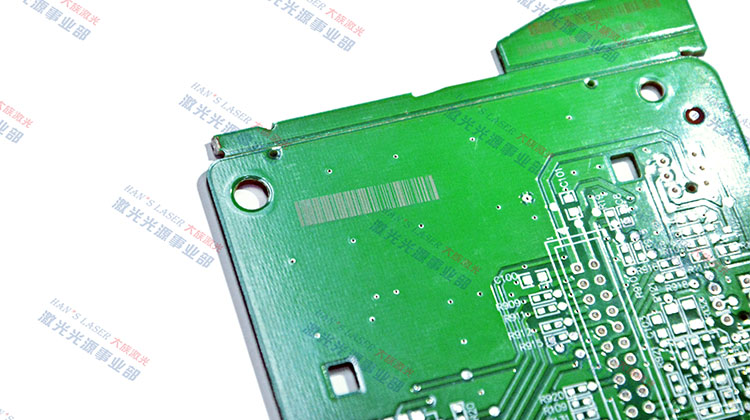

PCBA Green Solder Mask Marking Sample

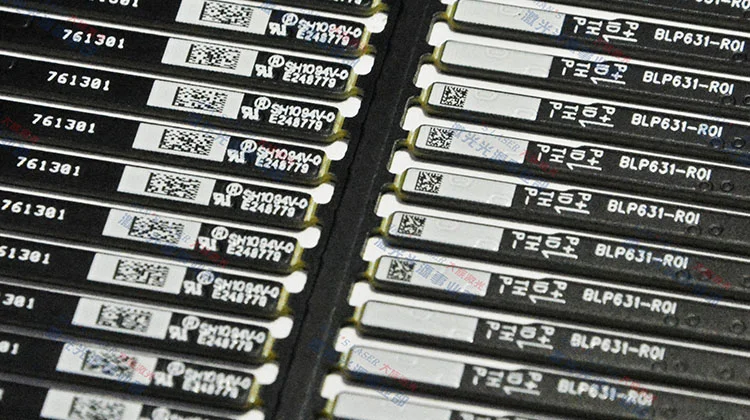

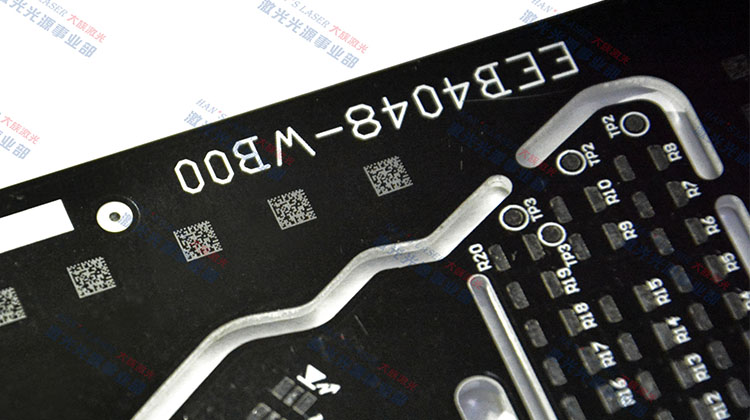

PCBA Black Solder Mask Marking Sample
