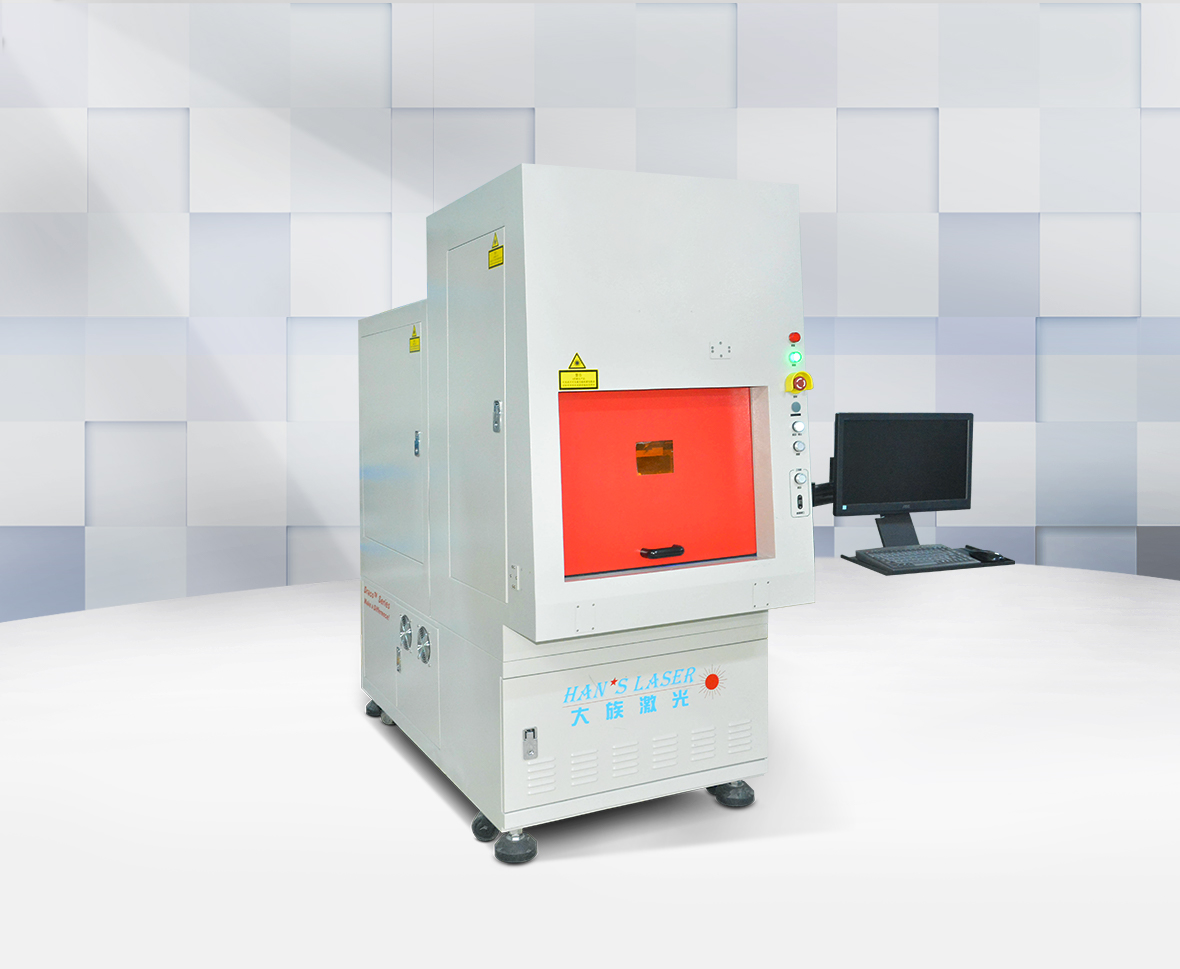

EP-IRPS-20
EP-IRPS-20

EP-IRPS-20

Brief Description
1. Cutting and drilling of brittle materials such as glass, sapphire and ceramics.
2. LCD, OLED screen cutting (C, R, U angle cutting).
3. Ultra-precise Mark points on the glass material, fine invisible QR code (0.2mm) and other fine marks.
Contact Us
Features:
1. Good beam quality, small spot size for ultra-fine marking.
2. The heat affected zone is small, avoiding damage to the processed material and high yield.
3. Marking speed, high efficiency, high precision.
4. No consumables, low cost of use and maintenance.
5. The machine performance is stable, long-term operation.
Specifications:
Machine model EP-IRPS-20
Laser wavelength 1064nm
Laser power 20W / 10ps / 1000kHz
Repeated frequency 1000KHz
Marking scope 100*100mm
Marking line width ≤0.03mm
Marking depth ≤0.1mm
Min. character 0.06mm
Marking speed ≤7000mm/s
Repeated accuracy ±0.01mm
[pwer supply AC 220V, 50Hz, 16A
Total power consumption ≤1.5kW
Sample

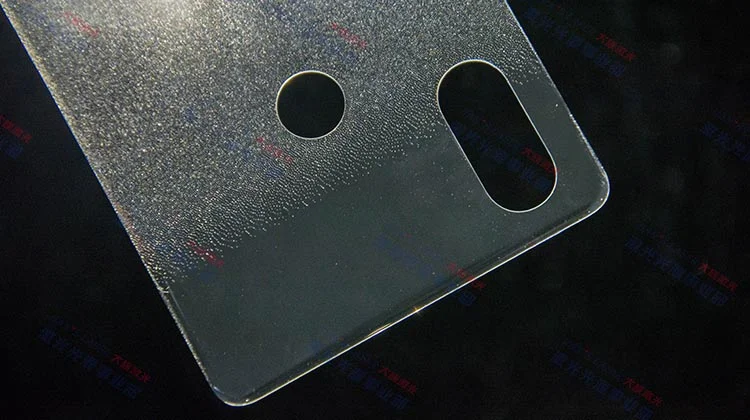

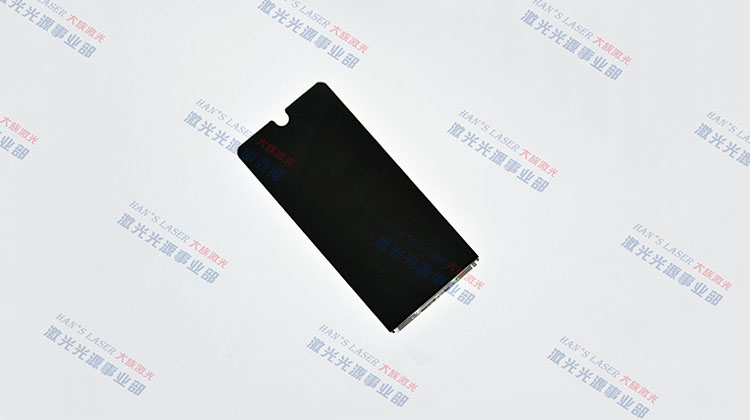

Mobile screen cutting
Mobile screen cutting

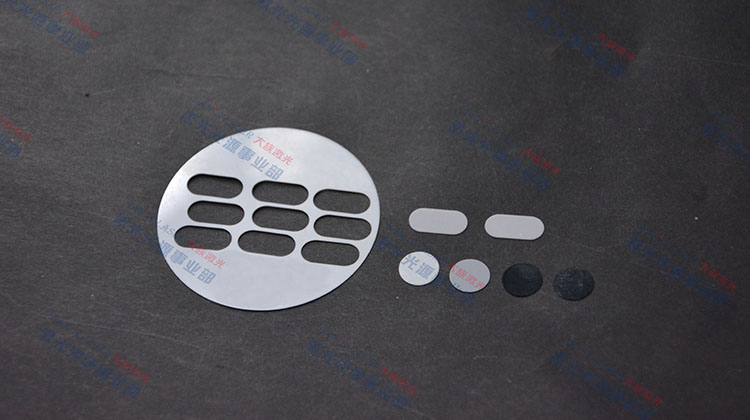

Ceramic cover cutting
Ceramic cover cutting

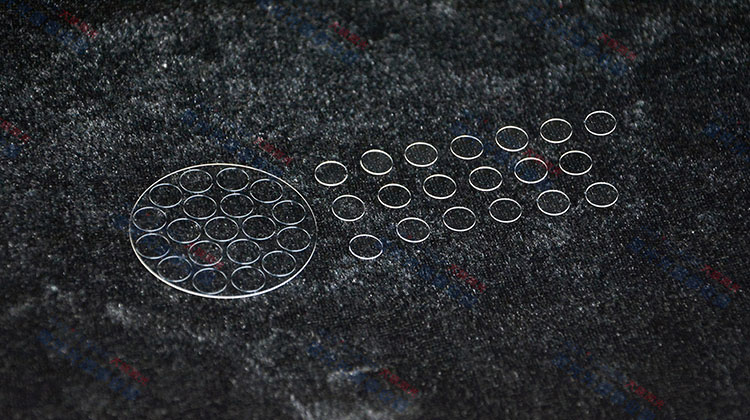

Sapphire camera lens cutting
Sapphire camera lens cutting

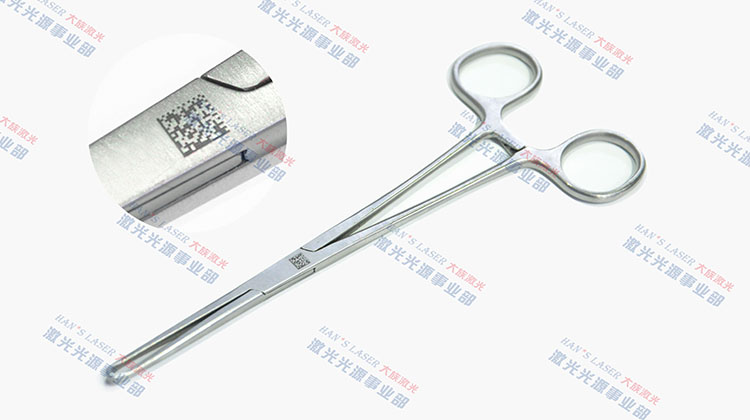

Medical instrument QR code marking
Medical instrument QR code marking

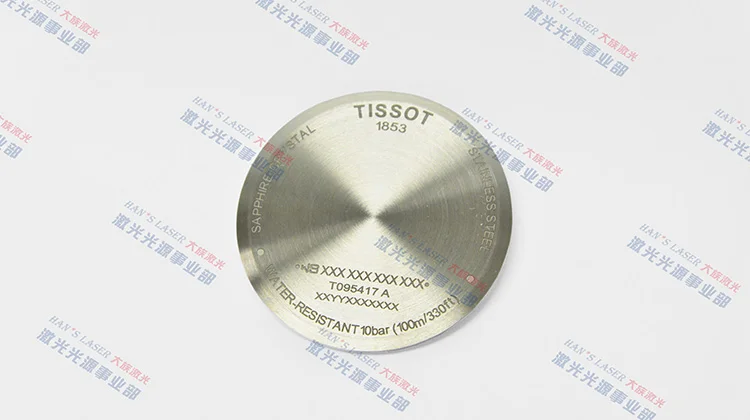

Metal watch plate characters marking
Metal watch plate characters marking
Material processing surface roughness
Material processing surface roughness
