HANS1500D

Brief Description

For white plastic caps, marking QR with size 11mm*11mm, marking contents is less than 35 characters, this system efficiency is about 600-800pcs/minute. Real productivity will have some difference according to plastic caps size, material, color, marking te

Categories Flying marking machine

Features:

1. With full self-designed DRACO series laser generator technology.

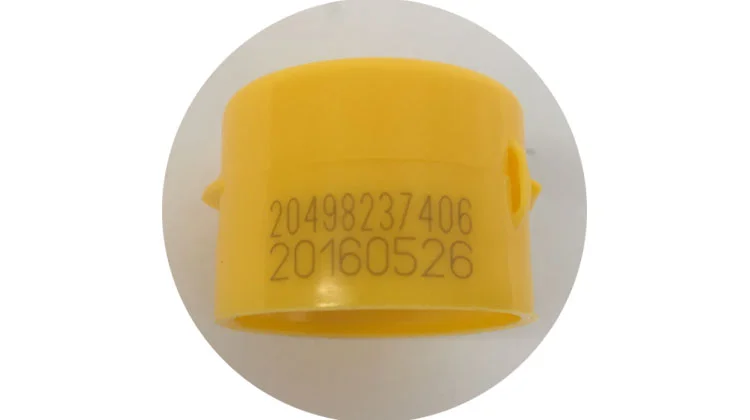

2. Can mark different characters, symbols, pictures or 2D code on various colors of plastic caps. 2D code marking effect is fast, clear, safe, recognizable.
3. No need any laser fertilizer on the caps.
4. After mark, the caps are available to pass the food safety certification.

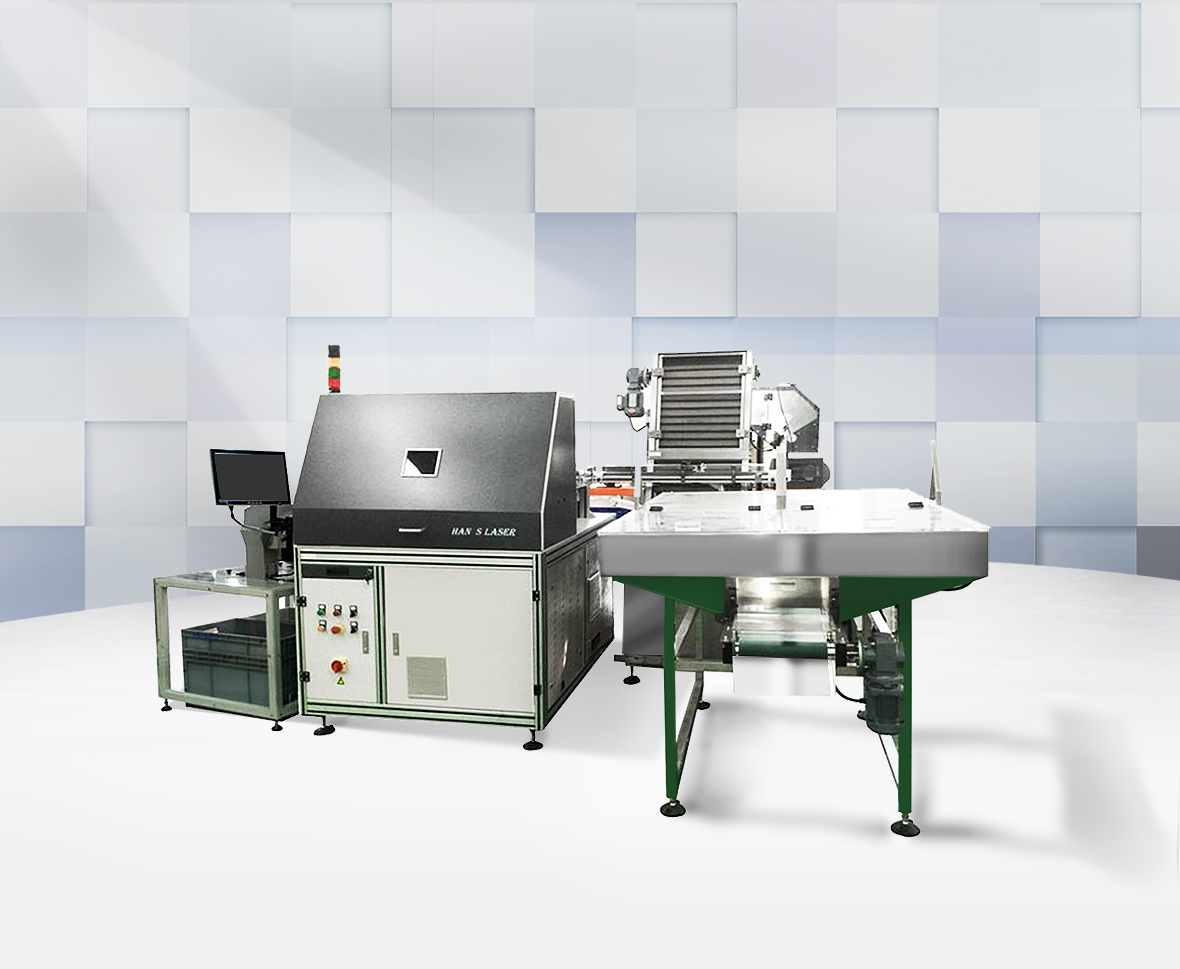

Professional plastic caps laser marking system, With the function like loading, sorting, marking, inspection, NG rejects, counting and unloading, data process etc.

Specification:

No.	Item	Specification
1	Laser type	UV laser
2	Laser power	≤15W
3	Repeated frequency	8-200KHz
4	Marking area	100mm×100mm
5	Marking line width	≤0.015mm
6	Marking depth	≤0.01mm
7	Min. character	0.06mm
8	Marking line speed	15000mm/s
9	Repeated accuracy	±0.01mm
10	Power supply	220V/single phase/50Hz/60Hz/10A
11	Machine power	≤2KW
12	Cooling method	Water cooling
