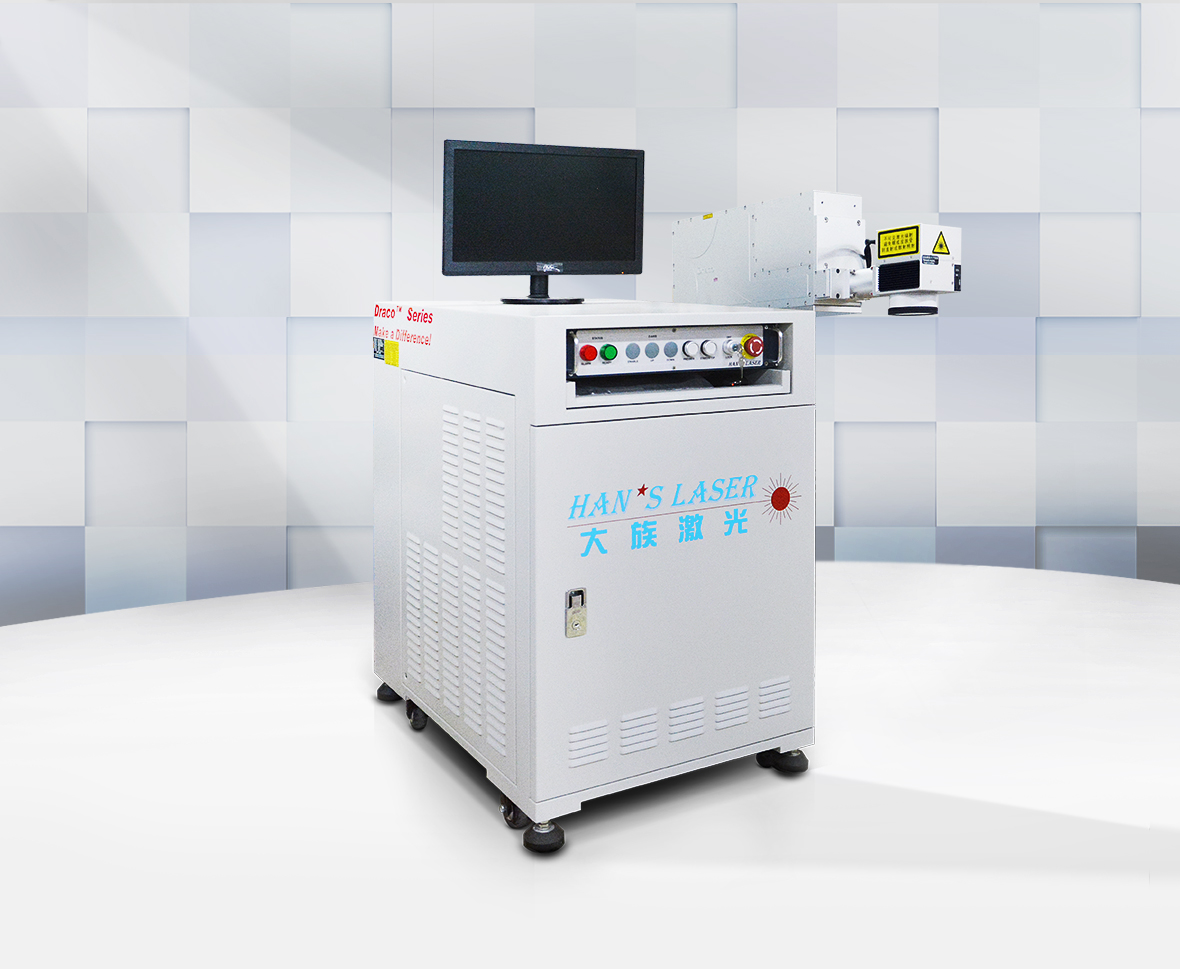

EP-15-THG-F
EP-15-THG-F

EP-15-THG-F

Brief Description
1. Marking of electronic products’ LOGO, model, place of origin and so on.
2. Marking of food, PVC pipe, medicine packaging material (HDPE, PO, PP and so on); micro-hole drilling, diameter d≤10μm.
3. PCB marking and cutting.
Categories UV laser marking
Contact Us
Features:
1. With split-type design, the laser can be integrated to the customer’s assembly line or directly installed on the lifting device.
2. Applicable for assembly line work like online processing.
3. This worktable can be used with UV, green light, infrared and other lasers together like EP-15-THG-F and the card marking machine EP-25-ID.
Specifications:
Machine model EP-15/25/30-THG-F
Laser wavelength 355nm
Laser power 4W / 7W / 10W /15W / 25W
Min. marking line width 10µm-15µm
Marking speed 250 characters/sec
Marking scope 100*100mm
Standard lens F160
Pulse repetition frequency 10-200kHz
Cooling mode Water cooling
Power supply AC 220V, 50Hz, 16A
Total power consumption ≤1.5kW
Overall dimension 600mm*800mm*1350mm
Sample

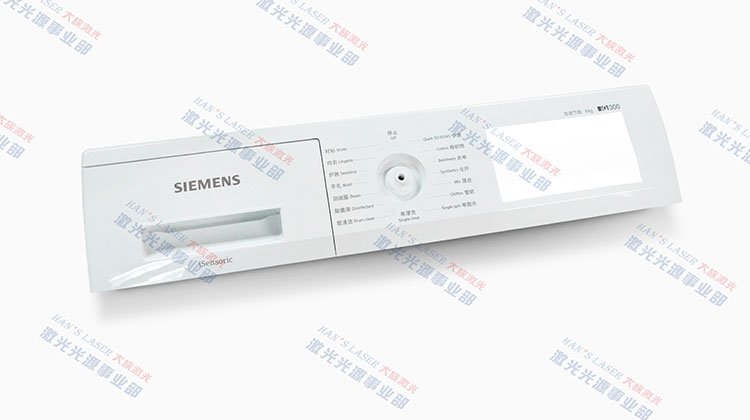

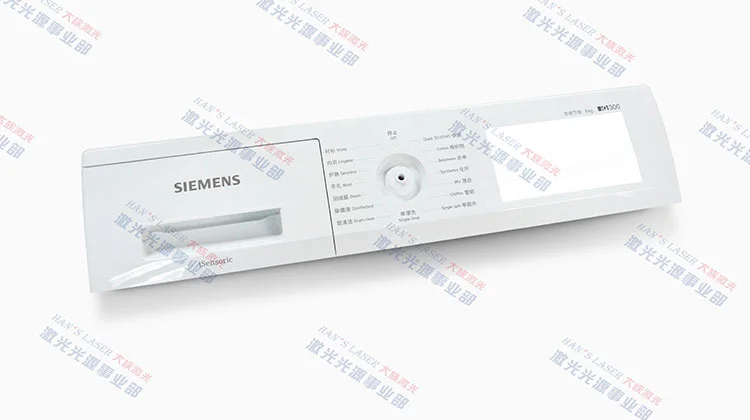

Washing machine panel marking
Washing machine panel marking

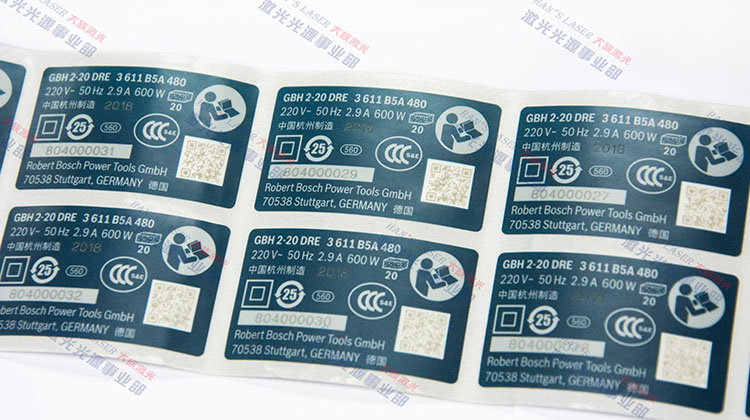

Label marking
Label marking

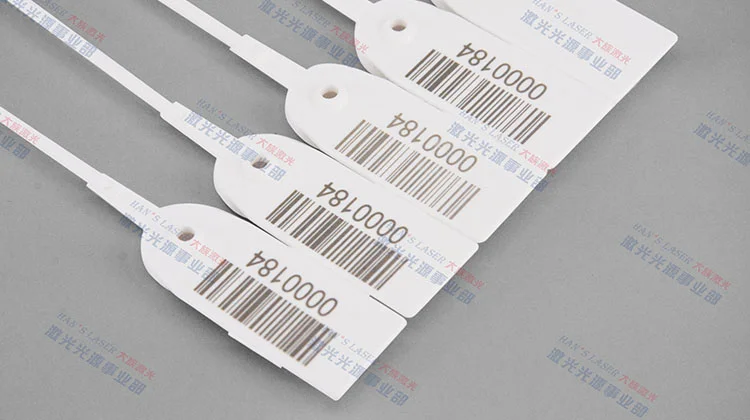

Plastic cable tie marking
Plastic cable tie marking

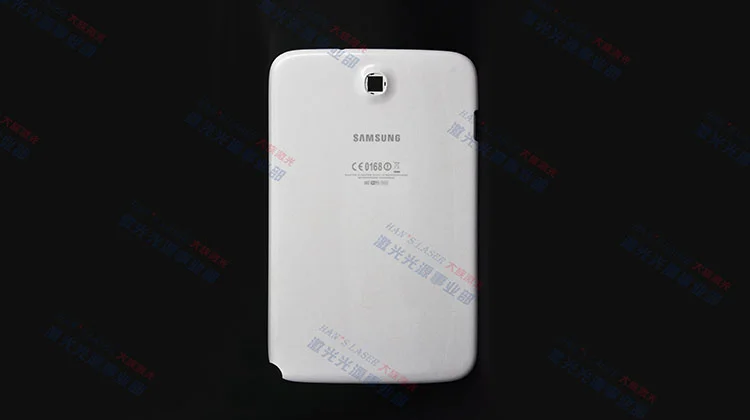

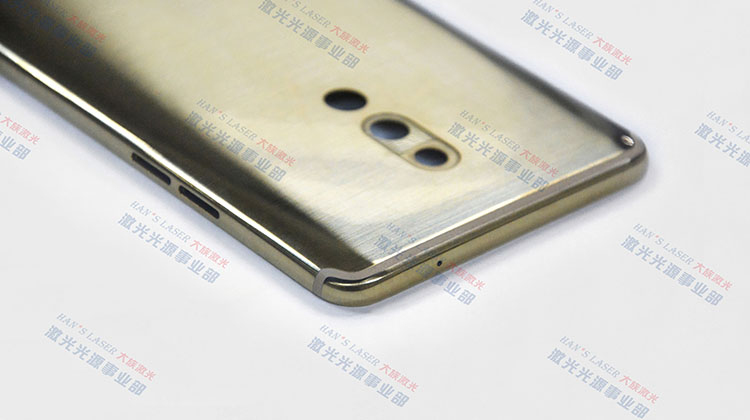

Removal of mobile phone shell coating
Removal of mobile phone shell coating

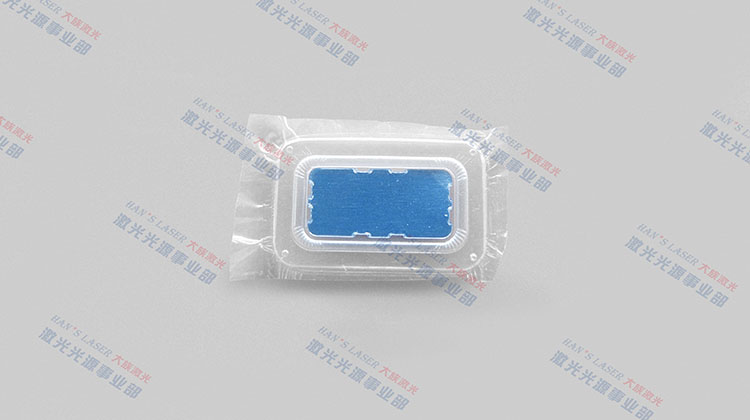

Earphone diaphragm cutting
Earphone diaphragm cutting
Electronic product Logo marking
Electronic product Logo marking

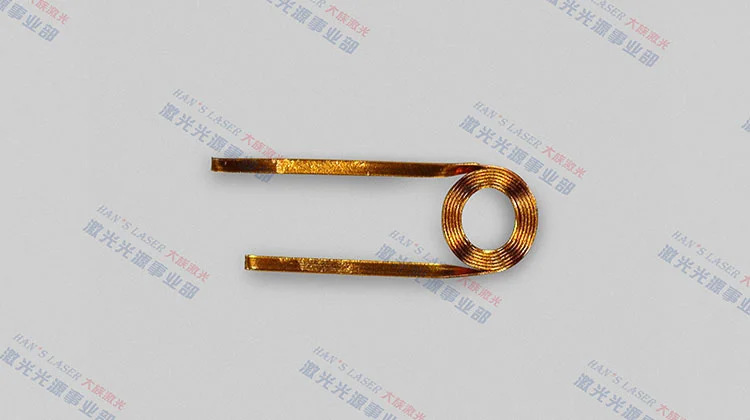

Micro-inductor paint removal
Micro-inductor paint removal

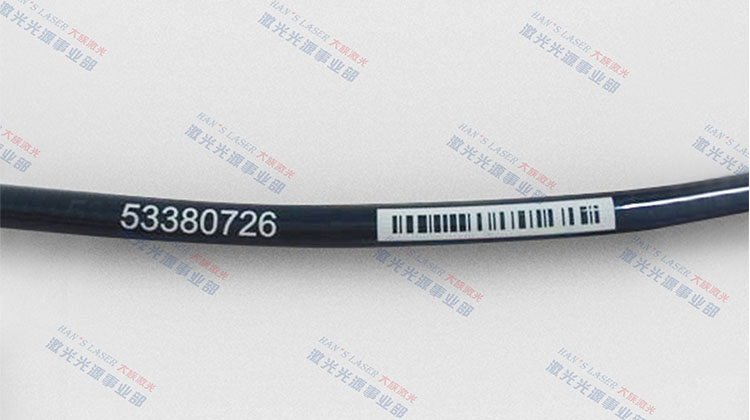

Mobile Phone Wire Marking
Mobile Phone Wire Marking

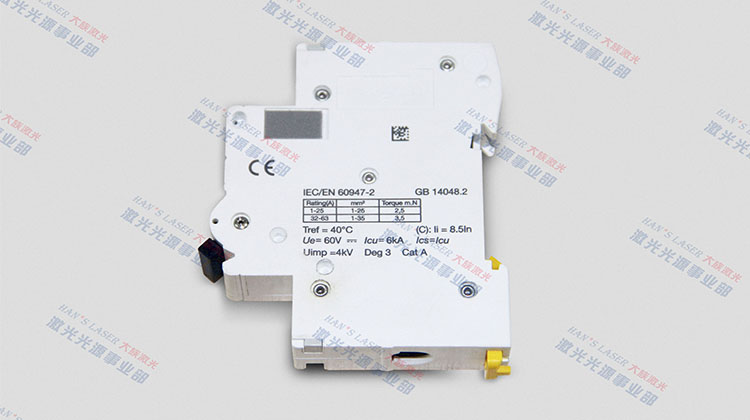

Air switch marking
Air switch marking

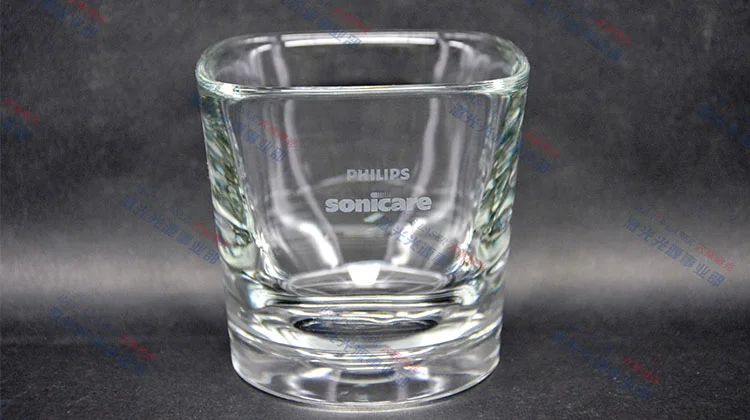

Glass surface marking
Glass surface marking
