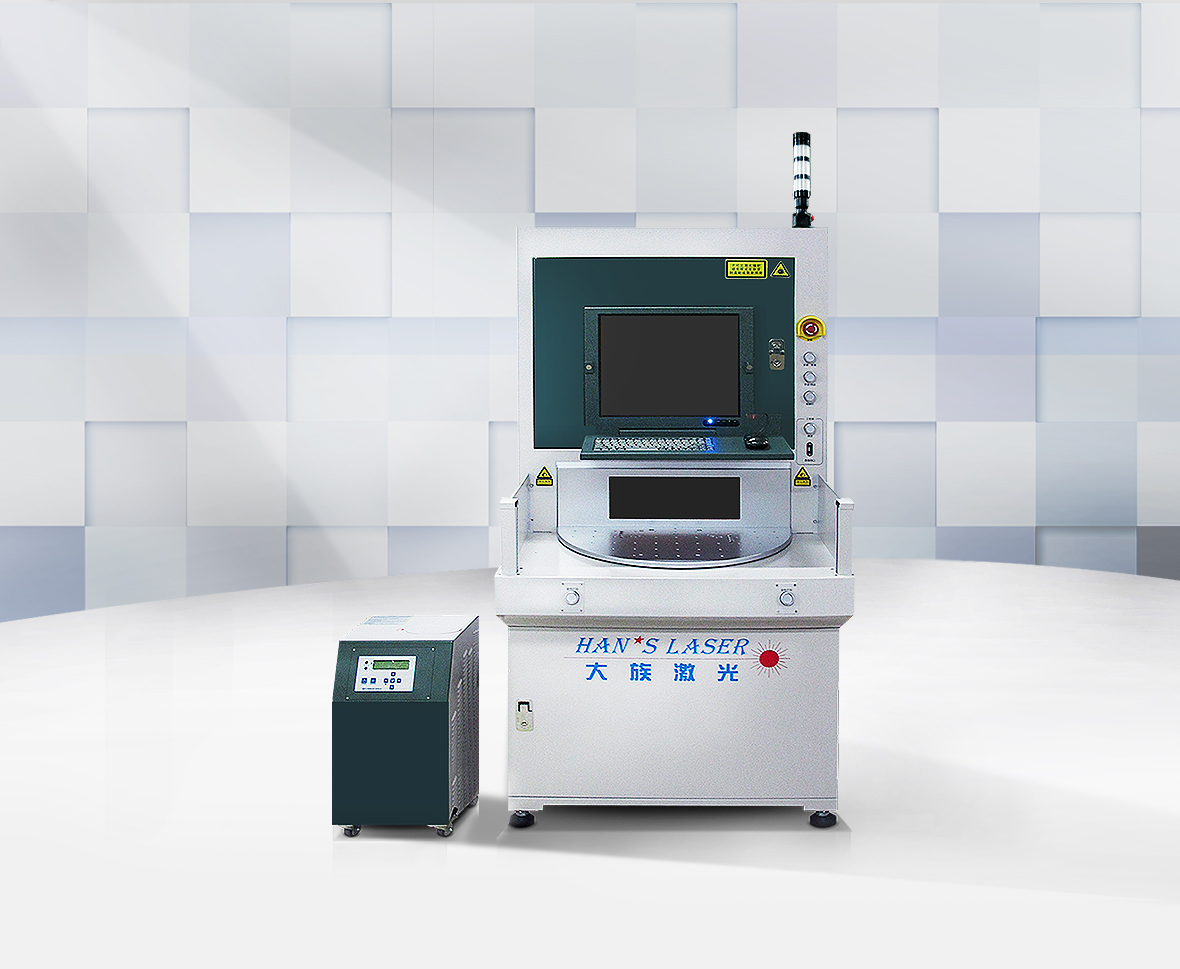

EP-15-THG-D
EP-15-THG-D

EP-15-THG-D

Brief Description
1. Marking of electronic products’ LOGO, model, place of origin and so on.
2. Marking of food, PVC pipe, medicine packaging material (HDPE, PO, PP and so on); micro-hole drilling, diameter d≤10μm.
3. PCB marking and cutting.
Categories UV laser marking
Contact Us
Features:
1. Dual-station rotary worktable; one is used for loading and unloading and the other is used for marking, which can efficiently improve the working efficiency
2. With safety light curtain, it can achieve safe and high-efficient production.
3. This worktable can be used with UV, green light, infrared and other lasers together. It has several models such as EP-15-THG-D and EP-15-SHG-D.
Specifications:
Machine model EP-15/25/30-THG-D
Laser wavelength 355nm
Laser power 4W / 7W / 10W /15W / 25W
Min. marking line width 10µm-15µm
Marking speed 250 characters/sec
Marking scope 100*100mm
Standard lens F160
Pulse repetition frequency 10-200kHz
Cooling mode Water cooling
Power supply AC 220V, 50Hz, 16A
Total power consumption ≤1.5kW
Overall dimension 800mm*1025mm*1500mm
Sample
Glass surface marking
Glass surface marking
Air switch marking
Air switch marking
Mobile Phone Wire Marking
Mobile Phone Wire Marking
Micro-inductor paint removal
Micro-inductor paint removal
Electronic product Logo marking
Electronic product Logo marking
Earphone diaphragm cutting
Earphone diaphragm cutting
Removal of mobile phone shell coating
Removal of mobile phone shell coating
Plastic cable tie marking
Plastic cable tie marking
Label marking
Label marking
Washing machine panel marking
Washing machine panel marking
