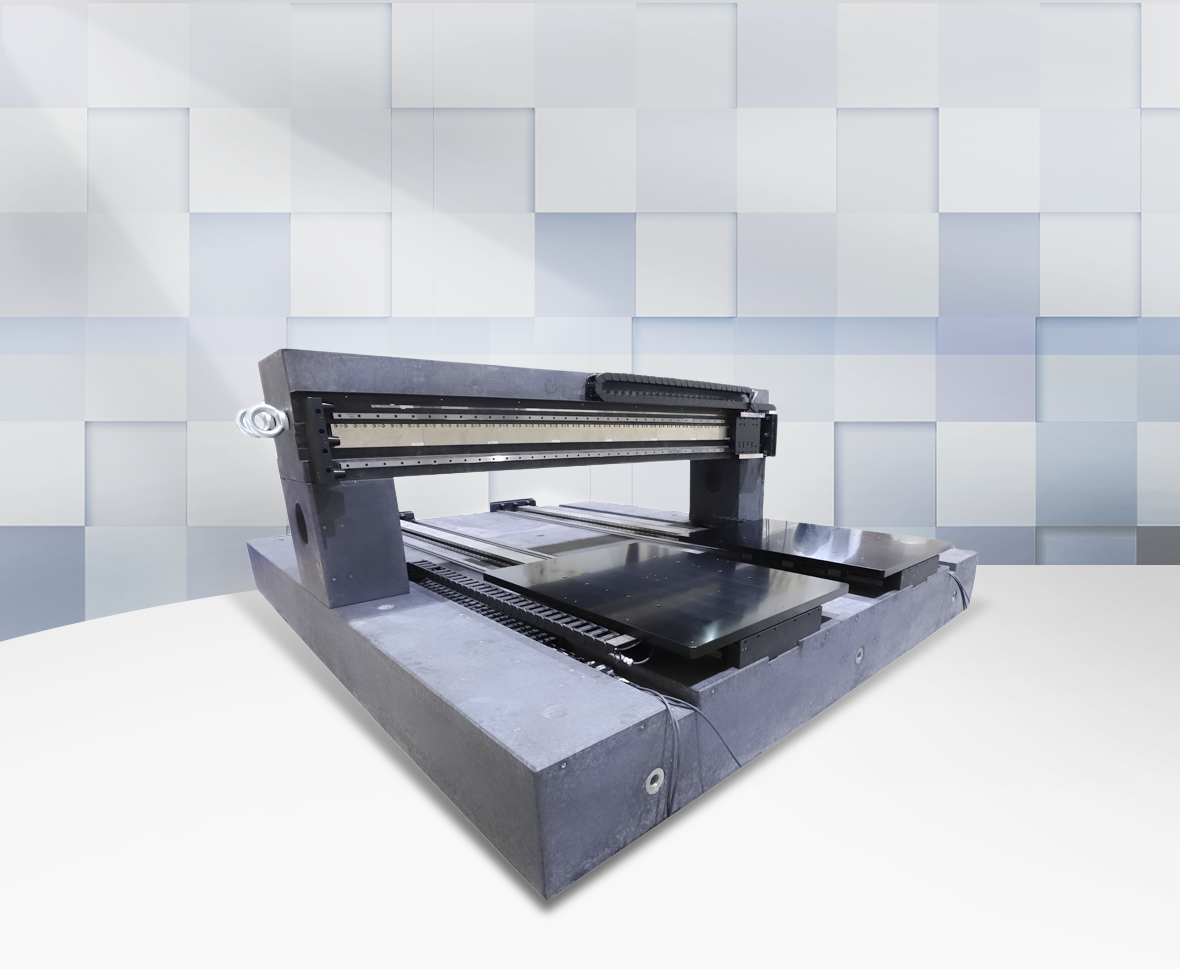

1. A customized motor stage;
2. Adopt an incremental optical scale feedback system;
3. Assemble to single-drive, double-drive and static gantry stage.
Features
1. Adopt Han's brand U-type linear motor and ACS high-performance control system;
2. The base and beam are made of marble, double-drive gantry structure, strong load capacity and good stability;
3. Adopt high-precision optical ruler feedback system and ultra-high-precision linear guide;
4. It is suitable for high-end inspection equipment, welding and micro-cutting production;
5. Different types of linear motors can be configured as needed, with optional Z-axis expansion available.
1. Adopt Han's brand U-type linear motor and ACS high-performance control system;
2. The base and beam are made of marble, double-drive gantry structure, strong load capacity and good stability;
3. Adopt high-precision optical ruler feedback system and ultra-high-precision linear guide;
4. It is suitable for high-end inspection equipment, welding and micro-cutting production;
5. Different types of linear motors can be configured as needed, with optional Z-axis expansion available.
| Product code | Stroke range | Load (Kg) | Velocity (m/s) | Acceleration (g) | Straightness (μm) | Verticality (μm) | Repeat accuracy(μm) |
| X-axis (crossbeam axis) | 100-1000 | 25 | 0.5 | 0.5 | 6/400 | 5/400 | ±1.5 |
| Y1-axis (Lower axis) | 100-1000 | / | 0.5 | 0.5 | 6/400 | 5/400 | ±1.5 |
| Y2-axis (Lower axis) | 100-1000 | / | 0.5 | 0.5 | 6/400 | 5/400 | ±1.5 |
