Product Features
1.High material utilization rate;
2.High forming accuracy and uniform and stable energy distribution;
3.Highly flexible and safe for environmental protection;
4.Deposition and repair at specific locations, alloy design, and 3D printin

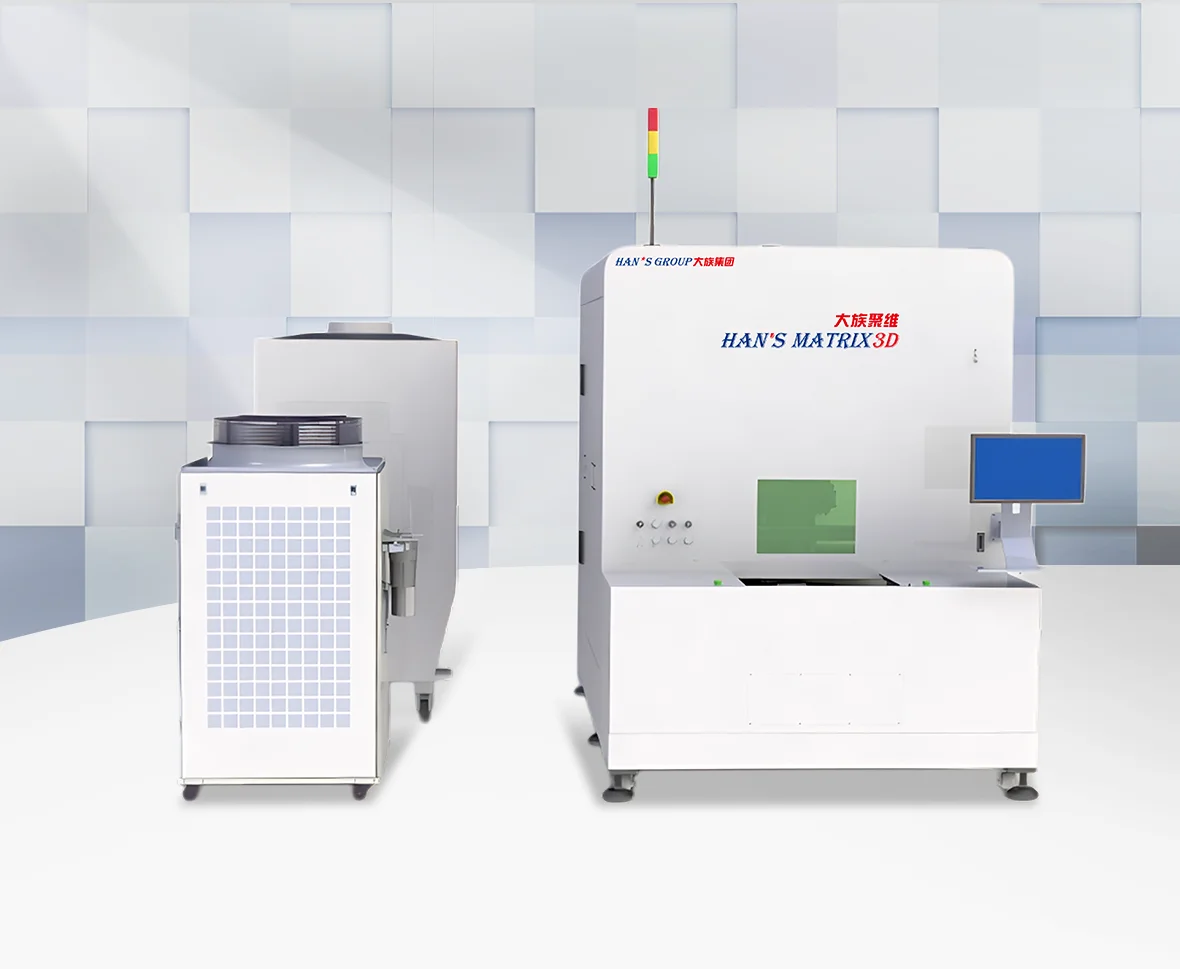

HM3D-PRINT
Brief Description
Contact Us
Product Features:
High material utilization rate.
High forming accuracy and uniform and stable energy distribution;
Highly flexible and safe for environmental protection;
Deposition and repair at specific locations, alloy design, and 3D printing of complex shapes;
Optional product height measurement and visual positioning system;
Integrated design integrates multiple systems such as cooling water, protective gas, laser light path, wire feeding path, electrical control, etc.
Product parameters:
High material utilization rate.
High forming accuracy and uniform and stable energy distribution;
Highly flexible and safe for environmental protection;
Deposition and repair at specific locations, alloy design, and 3D printing of complex shapes;
Optional product height measurement and visual positioning system;
Integrated design integrates multiple systems such as cooling water, protective gas, laser light path, wire feeding path, electrical control, etc.
Product parameters:
| Specification parameter | HS3D-PRINT |
| Equipment size | 3250mm × 2330mm × 2300mm (including dust removal and water cooling system) |
| Printable range | 120mm×150 mm |
| Feeding method | Coaxial wire feeding |
| Wire diameter | 0.8~1.2 mm |
| Fiber Diameter | 600 μm |
| Laser power | ≤6KW |
| Forming efficiency | ≤80g/min |
| Maximum power | 15KW |
| Gas Shield | Ar |
| Control software | PLC/CNC system |
| Applicable materials | Titanium alloy, aluminum alloy, etc |
Sample
