Product Features:
1. Full open process parameters package, easy to secondary development;
2. Feed powder, efficient two-way laying powder;
3. Precision adjustable scraper, to ensure the powder laying accuracy;
3. Six vibrator layout, suitable for batc
Product parameters:
| Equipment size | 2300mm×1300mm×2600mm |
| Maximum molding size | 450mm×350mm×400mm |
| Laser power | 500W*2/4/6 |
| Beam quality | M²＜1.1 |
| Laser wavelength | 1060nm~1080nm |
| Spot diameter | ≤90μm |
| Powder layer thickness | 20μm ~ 100μm |
| Optical components | F-theta lens, scanning galvanometer |
| Scanning speed | ≤10m/s |
| Oxygen content | ≤100ppm |
| Powder supply method | Upper Powder Feed |
| Gas protection | Nitrogen/Argon |
| Software | Magics+BP |
| Weight of equipment (without accessories) | ＜4000kg |
| Power supply/power consumption | 380V±10%, 72A/40KW |
| Applicable materials | stainless steel, mold steel, cobalt based alloys, high-temperature alloys, titanium alloys, aluminum alloys, etc |
Sample

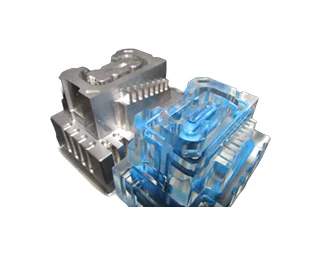

Mold

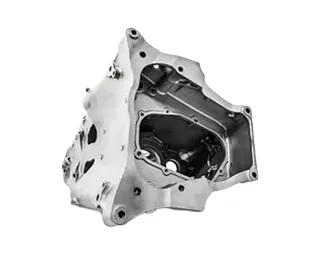

Gearbox

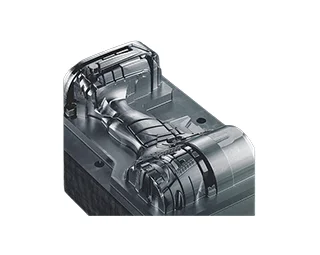

Electrical Appliance Mold

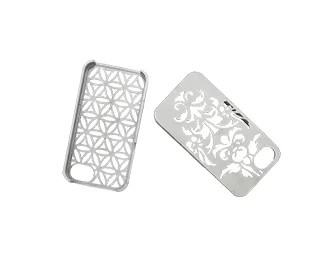

Shell
Topological Structure
Instrument Mold
