Product Features:
1.Full open process data package, easy to process secondary development;
2.Flexible or rigid scraper system can be selected;
3.Optional double galvanometer;
4.Remote cloud platform and APP monitoring;
5.Ruitable for high-throughput
Product application:
Suitable for complex water mold, hydraulic parts, automobile, aerospace and other industries.
Mold industry:
The application of 3D printing in the mold industry reduces the production cycle of the mold and reduces the manufacturing cost; The improvement of mold design has increased the diversity and functionality of end products, such as water cooling, shoe mold, etc.
Automotive industry:
Structural optimization, research and development trial production, small batch production, personalized products and spare parts are several important application points of additive manufacturing in the automotive field. Structure optimization design, can significantly reduce the weight of the vehicle, reduce fuel consumption; Development and trial production without opening mold, can shorten the vehicle development cycle; Mass production can realize digital manufacturing, no tooling fixture; Personalized products can be designed according to the individual needs of customers, and multiple products are produced in the same version; Spare parts manufacturing can solve the problem of uncertainty, reduce the occupation of capital, space and production capacity.
Product parameters:
Suitable for complex water mold, hydraulic parts, automobile, aerospace and other industries.
Mold industry:
The application of 3D printing in the mold industry reduces the production cycle of the mold and reduces the manufacturing cost; The improvement of mold design has increased the diversity and functionality of end products, such as water cooling, shoe mold, etc.
Automotive industry:
Structural optimization, research and development trial production, small batch production, personalized products and spare parts are several important application points of additive manufacturing in the automotive field. Structure optimization design, can significantly reduce the weight of the vehicle, reduce fuel consumption; Development and trial production without opening mold, can shorten the vehicle development cycle; Mass production can realize digital manufacturing, no tooling fixture; Personalized products can be designed according to the individual needs of customers, and multiple products are produced in the same version; Spare parts manufacturing can solve the problem of uncertainty, reduce the occupation of capital, space and production capacity.
Product parameters:
| Equipment size | 2200mm X 1000mm X 2350mm |
| Maximum molding size | 250mm X 250mm x 300m |
| Laser power | 500W/500W*2 (optional） |
| Beam quality | M²＜1.1 |
| Laser wavelength | 1060nm~1080nm |
| Spot diameter | ≦90μ |
| Powder layer thickness | 20μm ~ 100μm |
| Optical components | F-theta lens, scanning galvanometer |
| Scanning speed | ≤10m/s |
| Oxygen content | ≤100ppm |
| Powder supply method | Downward powder delivery |
| Gas protection | Nitrogen/Argon |
| Software | Magics+BP/Hans M Path |
| Weight of equipment (without accessories) | <2500Kg |
| Power supply/power consumption | 380V±10%, 44A/25K |
| Applicable materials | stainless steel, mold steel, cobalt based alloys, high-temperature alloys, titanium alloys, aluminum alloys, etc |
Sample

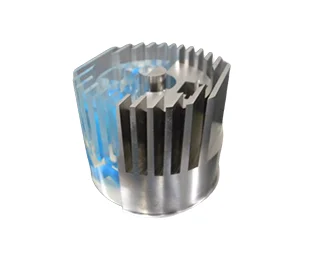

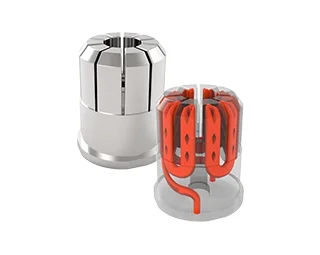

Mold
Wheel Hub
Electronic Product Mold
Electrical Appliance Mold
Household Appliance Mold

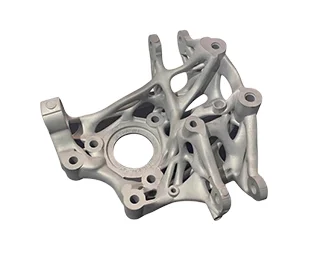

Steering Knuckle
