Product features:
1. Dental medical dedicated open parameters;
2. Fast molding rate, up to 120 teeth per 5 hours;
3. Optional flexible or rigid scraper system;
4. Remote cloud platform and APP monitoring;
4. Compact in size, highly integrated, and ea
Product application:
Suitable for medical, dental, jewelry, scientific research, teaching and other applications.
Dental Medicine:
3D printing is currently most widely used in two major fields of healthcare:
(1) The manufacturing of personalized prostheses can be used in orthopedics, dentistry, plastic surgery, etc;
(2) Medical device products with complex structures and difficult to process, including implants and non-implants such as porous hip joints, medical models simulating human organs, dentures, scaffolds, etc.
Product parameters:
Suitable for medical, dental, jewelry, scientific research, teaching and other applications.
Dental Medicine:
3D printing is currently most widely used in two major fields of healthcare:
(1) The manufacturing of personalized prostheses can be used in orthopedics, dentistry, plastic surgery, etc;
(2) Medical device products with complex structures and difficult to process, including implants and non-implants such as porous hip joints, medical models simulating human organs, dentures, scaffolds, etc.
Product parameters:
| Equipment size | 1000mm X 1000mm X 1900mm |
| Maximum molding size | 100mm X 100mm X 100mm |
| Laser power | 500W |
| Beam quality | M²＜1.1 |
| Laser wavelength | 1060nm~1080nm |
| Spot diameter | ≤50μm |
| Powder layer thickness | 20μm ~ 100μm |
| Optical components | F-theta lens, scanning galvanometer |
| Scanning speed | ≤10m/s |
| Oxygen content | ≤100ppm |
| Powder supply method | Downward powder delivery |
| Gas protection | Nitrogen/Argon |
| Software | Magics+BP/Hans M Path |
| Weight of equipment (without accessories) | ＜1000kg |
| Power supply/power consumption | 200V±10%, 55A/12KW |
| Applicable materials | stainless steel, mold steel, cobalt based alloys, high-temperature alloys, titanium alloys, aluminum alloys, etc |
Sample

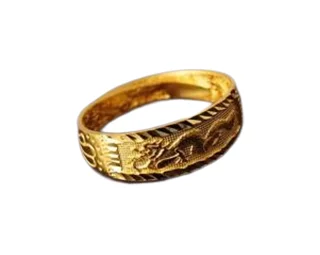

Ring

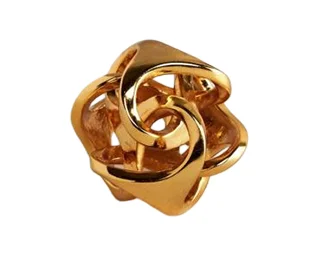

Necklace Pendant
Metal Dental Crown

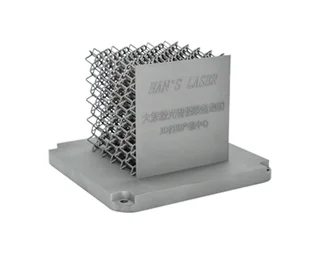

Lightweight Lattice (scientific research)
