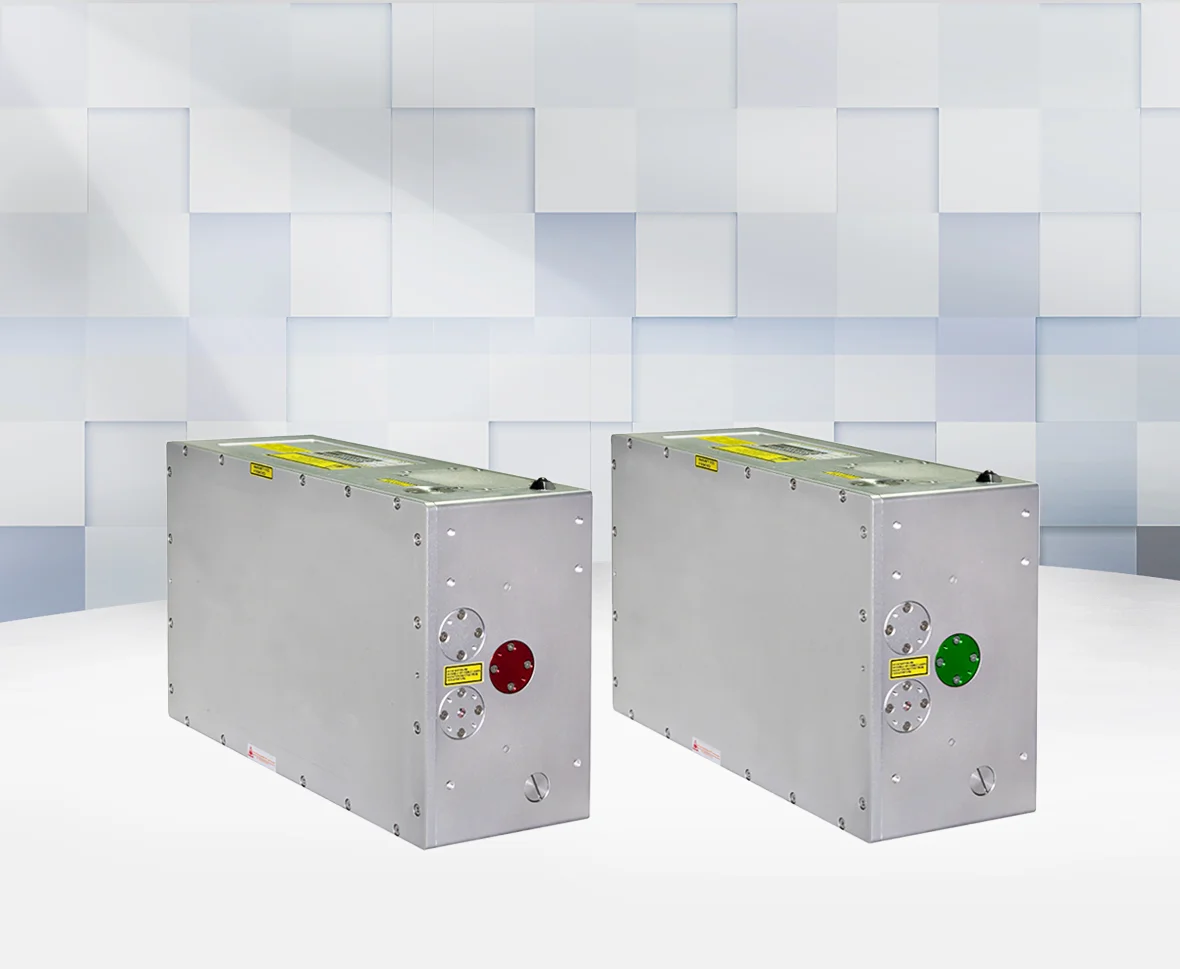

Water-cooled IR nanosecond
Water-cooled IR nanosecond

Water-cooled IR nanosecond

Brief Description
Adjustable repetition frequency
Modular design
TEM00 mode output
Contact Us
Founded in 2009, it is a strong and durable industrial laser, which meets the 24/7 industrial demand. It has long-term excellent performance and is widely used in various fine processing fields. With modular design, it can be flexibly combined into different optical designs as required, to achieve output combinations of different wavelengths, different powers and different pulse widths, catering to various industry requirements.

Applications
Laser marking of various buttons
Plastic shell marking for electronics
Laser marking of phone card & smart card
Jewelry & hardware tool marking

Water-cooled nanosecond models HL-NS-1064-50 HL-NS-532-10/20/40
Output parameters
Wavelength 1064nm 532nm
Power 50W 10-40W
Repetition frequency 2—200kHz
Pulse width 10-100ns
Pulse energy stability 3%rms,1σ
Beam parameters
Spatial pattern TEM00, M21.2
Polarization ratio 100:1 (horizontal) 100:1 (vertical)
Spot diameter 1.2±0.2mm 1.1±0.2mm
Divergence full angle 3 mrad 2 mrad
Beam pointing stability ±25μrad/°C
Working conditions/requirements
Power supply 100—240V, 50—60Hz
Ready time Standby to ready<10 minutes; Cold start to ready<30 minutes
Temperature range Working: 18~35°C; Non-working: 0~50°C
Humidity 10—90%, no condensation
Cooling requirements Water cooling, chiller accuracy ±0.1°C & flow rate≥6L/min
Total power 1000W

Air-cooled nanosecond models HL-NS-1064-15-A HL-NS-532-10-A
Output parameters
Wavelength 1064nm 532nm
Power 15W 10W
Repetition frequency 2—200kHz
Pulse width 10-100ns
Pulse energy stability 3%rms,1σ
Beam parameters
Spatial pattern TEM00, M21.2
Polarization ratio 100:1 (vertical) 100:1 (horizontal)
Spot diameter 1.1±0.2mm
Divergence full angle 2 mrad 2 mrad
Beam pointing stability ±50μrad/°C
Working conditions/requirements
Power supply 100—240V, 50—60Hz
Ready time Standby to ready<10 minutes; Cold start to ready<30 minutes
Temperature range Working: 15 ~ 30°C; Non-working: 0 ~ 50°C
Humidity 10—90%, no condensation
Cooling requirements Air cooling & TEC temperature control accuracy ±0.1
Total power 300W

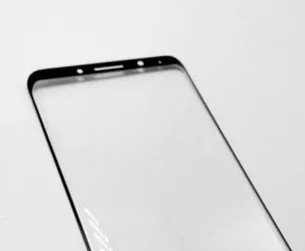

Sample
Laser marking machines
Laser marking machines
Laser marking machines
Laser marking machines
Laser cutting machines
Laser cutting machines
