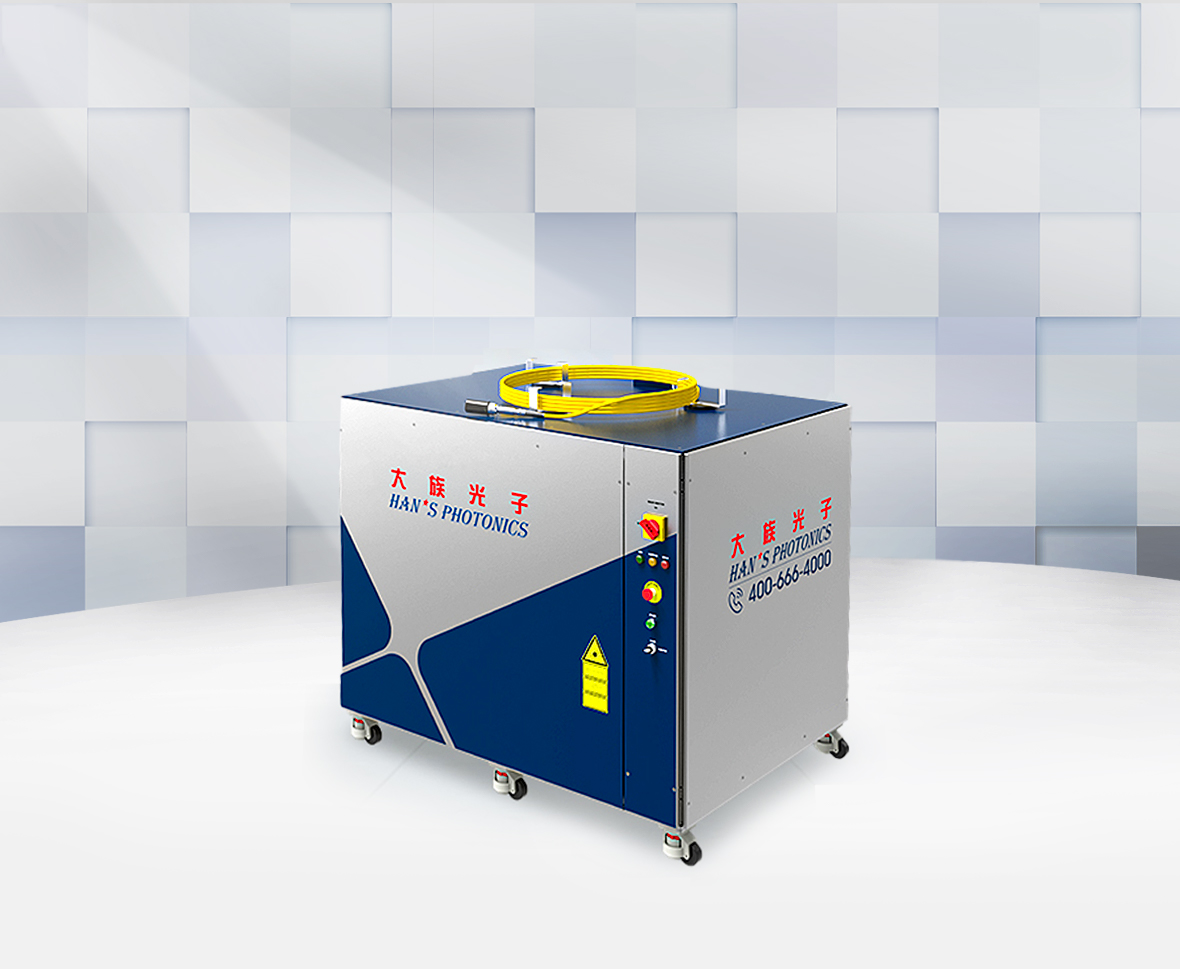

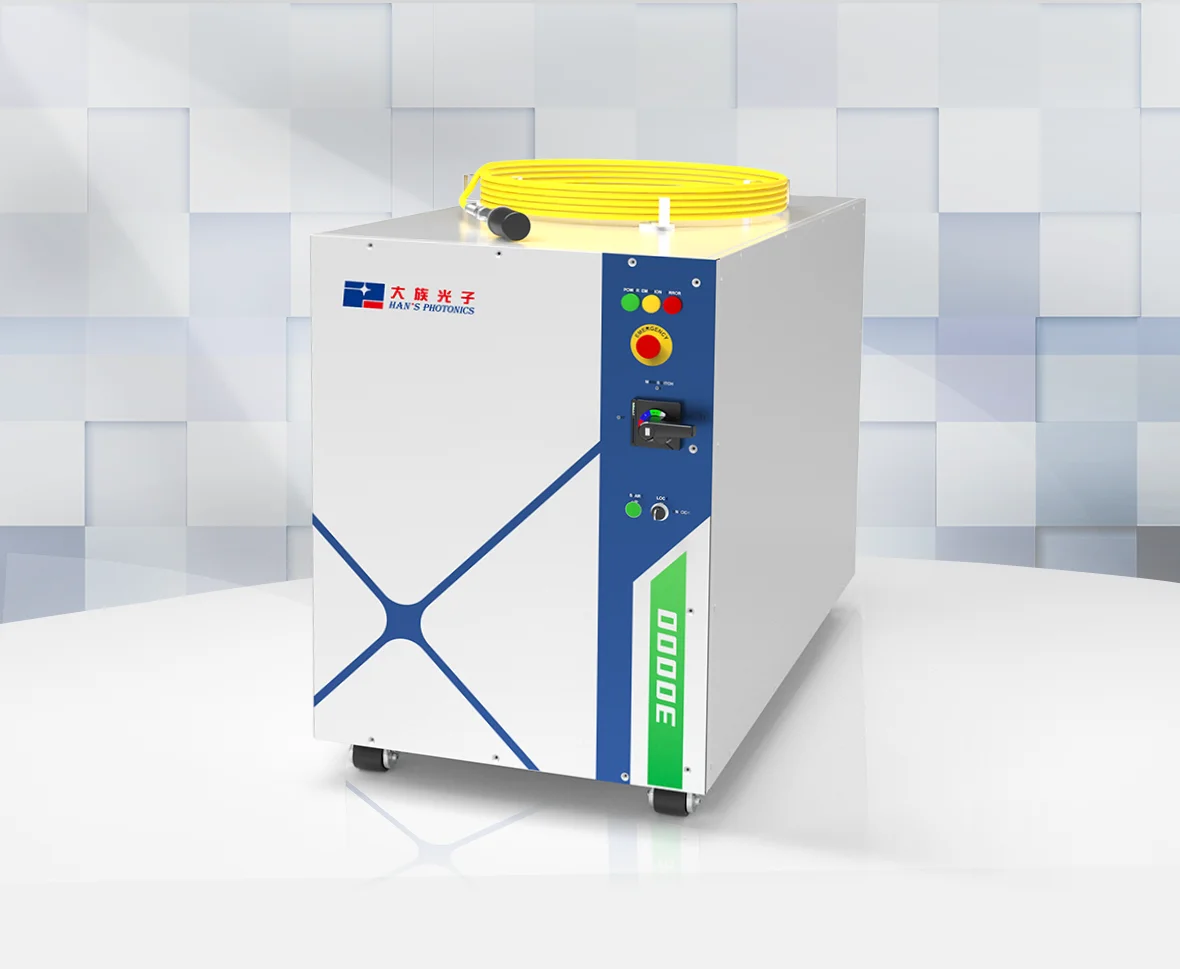

Multi-module Series 12000-50000W CW Fiber Laser
Brief Description
Laser cutting, laser welding, laser cladding, laser cleaning, additive manufacturing, etc.
Categories
CW Fiber Laser
Contact Us
Product description
Han's Photonics Multi-module Continuous Fiber Lasers not only has high power stability and strong anti-reflection ability, but also has high photoelectric conversion efficiency over 40%, fundamentally improving processing performance and reducing machine power consumption. Its new generation of self-developed electronic control system is more compatible, easier and more user-friendly, and provides real-time internal monitoring, fast data feedback response and modulation pulse response in microseconds. The laser can fully perform its function with strict beam quality control and professional application scenario analysis of Han's Laser!
Product features
1. 976nm Pumping technology，and photoelectric conversion rate up to 40%;
Han's Photonics Multi-module Continuous Fiber Lasers not only has high power stability and strong anti-reflection ability, but also has high photoelectric conversion efficiency over 40%, fundamentally improving processing performance and reducing machine power consumption. Its new generation of self-developed electronic control system is more compatible, easier and more user-friendly, and provides real-time internal monitoring, fast data feedback response and modulation pulse response in microseconds. The laser can fully perform its function with strict beam quality control and professional application scenario analysis of Han's Laser!
Product features
1. 976nm Pumping technology，and photoelectric conversion rate up to 40%;
2. Power unstability less than ±1% (8 hours);
3. Great anti-reflection capability, no need to worry about processing high-reflection material;
4. Selectable functions of wave form editing and bus controlling.
| MODLE | HLC-12000 | HLC-15000 | HLC-20000 | HLC-30000 | HLC-40000 | HLC-50000 | |
| Output Power | W | 12000 | 15000 | 20000 | 30000 | 40000 | 50000 |
| Wave Length | nm | 1080±5 | |||||
| 3DB Bandwidth | nm | 6±1 | |||||
| Power Range | % | 10-100 | |||||
| Power Stability | % | ±1 | |||||
| Max. Modulation Frequency | kHz | 5 | |||||
| Operation Mode | Continuous / Modulated | ||||||
| Polarization Mode | Random | ||||||
| Optical Interface | Q+ / HPC | ||||||
| Delivery Fiber Length | m | 20 (Can be customized) | |||||
| Operating Voltage | 350-430 VAC, 50Hz, 3-phase 5-wire | ||||||
| Control Mode | External control interface / Network interface card | ||||||
| Dimension | mm | 1200*740*690 （Excluding castors） | 1260*700*920 （Excluding castors） | 1260*700*1045 （Excluding castors） | |||
| Weight | kg | ＜300 | ＜350 | ＜400 | ＜580 | ＜650 | |
| Cooling | Water cooling | ||||||
