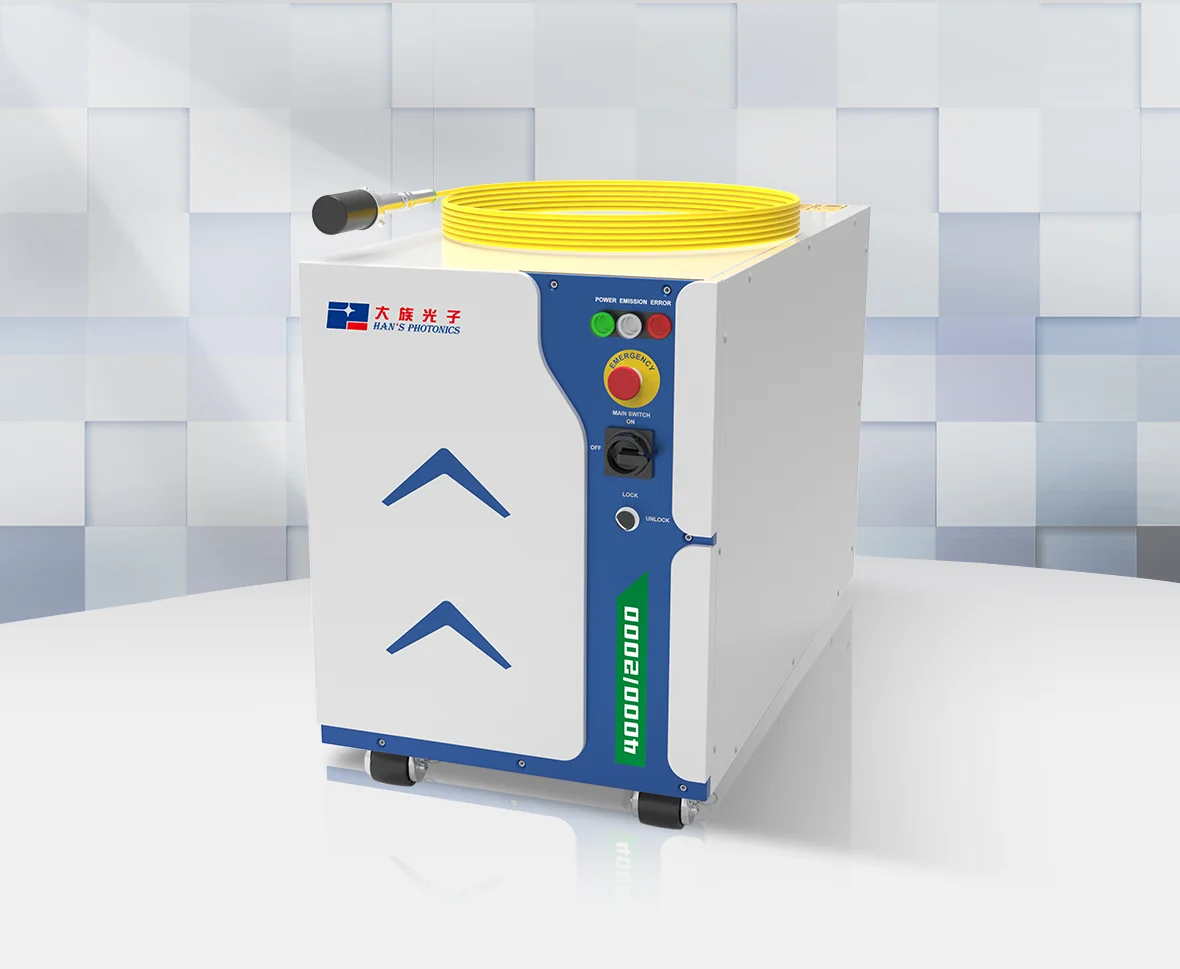

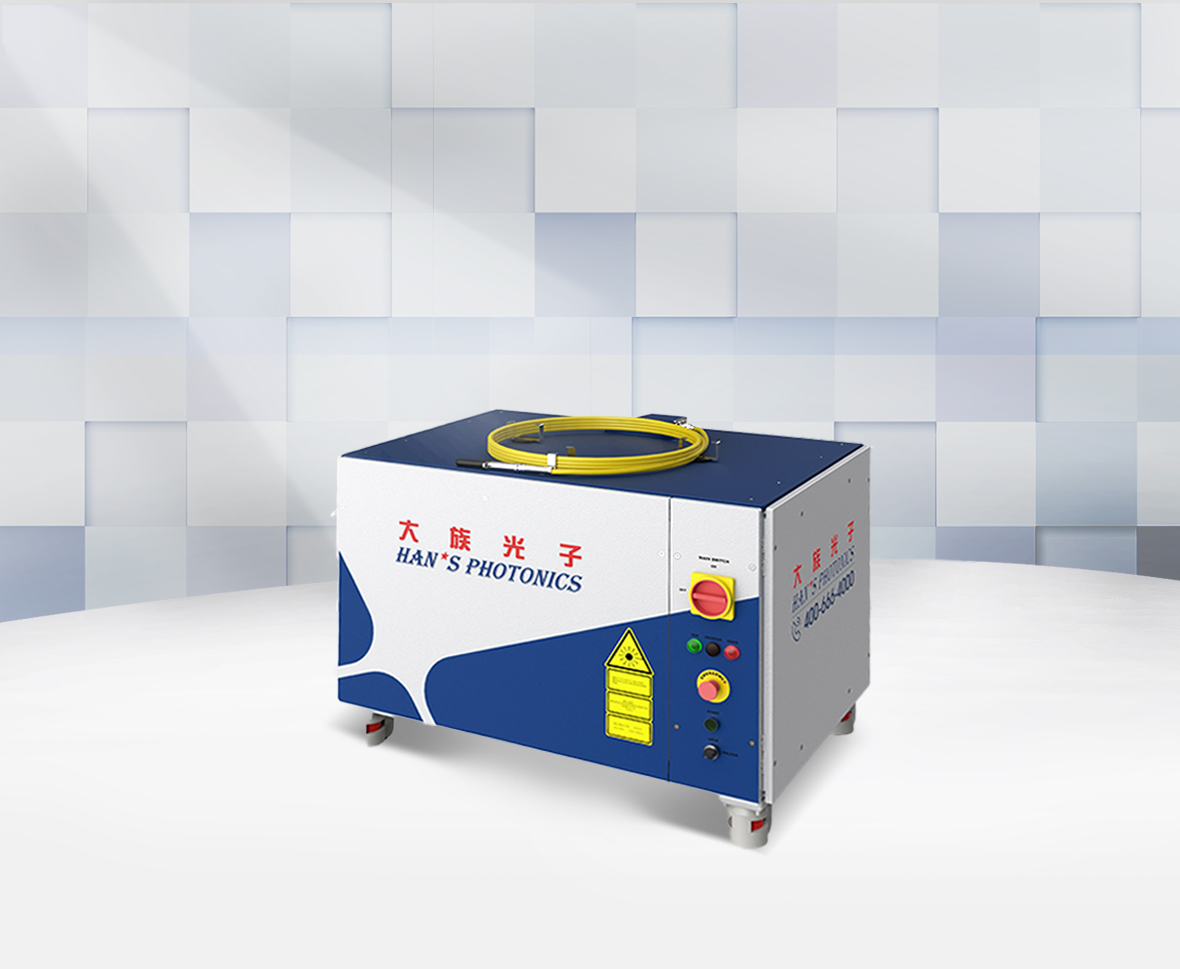

ABS Series 4000-10000W Variable Spot Fiber Laser
Brief Description
Laser welding
Categories
CW Fiber Laser
Contact Us
Product description
Han's Photonics ABS Fiber Lasers are specifically designed for copper and aluminum material welding. Its beam is a composite beam consisting of a central high-energy density laser and an outer low-energy density laser. This unique design can greatly improve welding efficiency and effectively reduce welding spatter, improving welding quality. It can be used in various processes of welding new energy battery components, such as battery tabs, connectors, top covers, sealing nails, terminals, anti-explosion valves and module frames, welding flat wires for new energy motors, and welding copper parts for IGBT.
Product features
Han's Photonics ABS Fiber Lasers are specifically designed for copper and aluminum material welding. Its beam is a composite beam consisting of a central high-energy density laser and an outer low-energy density laser. This unique design can greatly improve welding efficiency and effectively reduce welding spatter, improving welding quality. It can be used in various processes of welding new energy battery components, such as battery tabs, connectors, top covers, sealing nails, terminals, anti-explosion valves and module frames, welding flat wires for new energy motors, and welding copper parts for IGBT.
Product features
1. Large proportion of self-developed key devices, and vertical integration of resources from upstream to downstream;
2. Power unstability less than ±1% (8 hours)，and anti-attenuation gain fiber;
3. Advanced optical spot control technology,and separately adjustable core/ring power;
4. Selectable functions of waveform editing and bus controlling.
|
MODLE |
HLW-2000/2000-ABS |
HLW-3000/3000-ABS |
HLW-4000/2000-ABS |
HLW-5000/5000-ABS |
|
|
Output Power |
W |
2000(core) / 2000(ring) |
3000(core) / 3000 (ring) |
4000(core) / 2000(ring) |
5000(core) / 5000(ring) |
|
Wave Length |
nm |
1080±5 |
|||
|
3DB Bandwidth |
nm |
6±1 |
|||
|
Power Range |
% |
10-100 |
|||
|
Power Stability |
% |
±1 |
|||
|
Max. Modulation Frequency |
kHz |
5 |
|||
|
Operation Mode |
|
Continuous/Modulated |
|||
|
Polarization Mode |
|
Random |
|||
|
Optical Interface |
|
QBH |
|||
|
Delivery Fiber Length |
m |
20 |
|||
|
Operating Voltage |
|
330-430VAC, 50Hz, 3-phase 5-wire |
|||
|
Control Mode |
|
External control interface / Network interface card |
|||
|
Dimension |
mm |
815×450×120 |
1020×540×650 |
892×480×278 |
1150×630×540 |
|
Weight |
kg |
＜80 |
＜200 |
＜150 |
＜220 |
|
Cooling |
|
Water cooling |
|||
