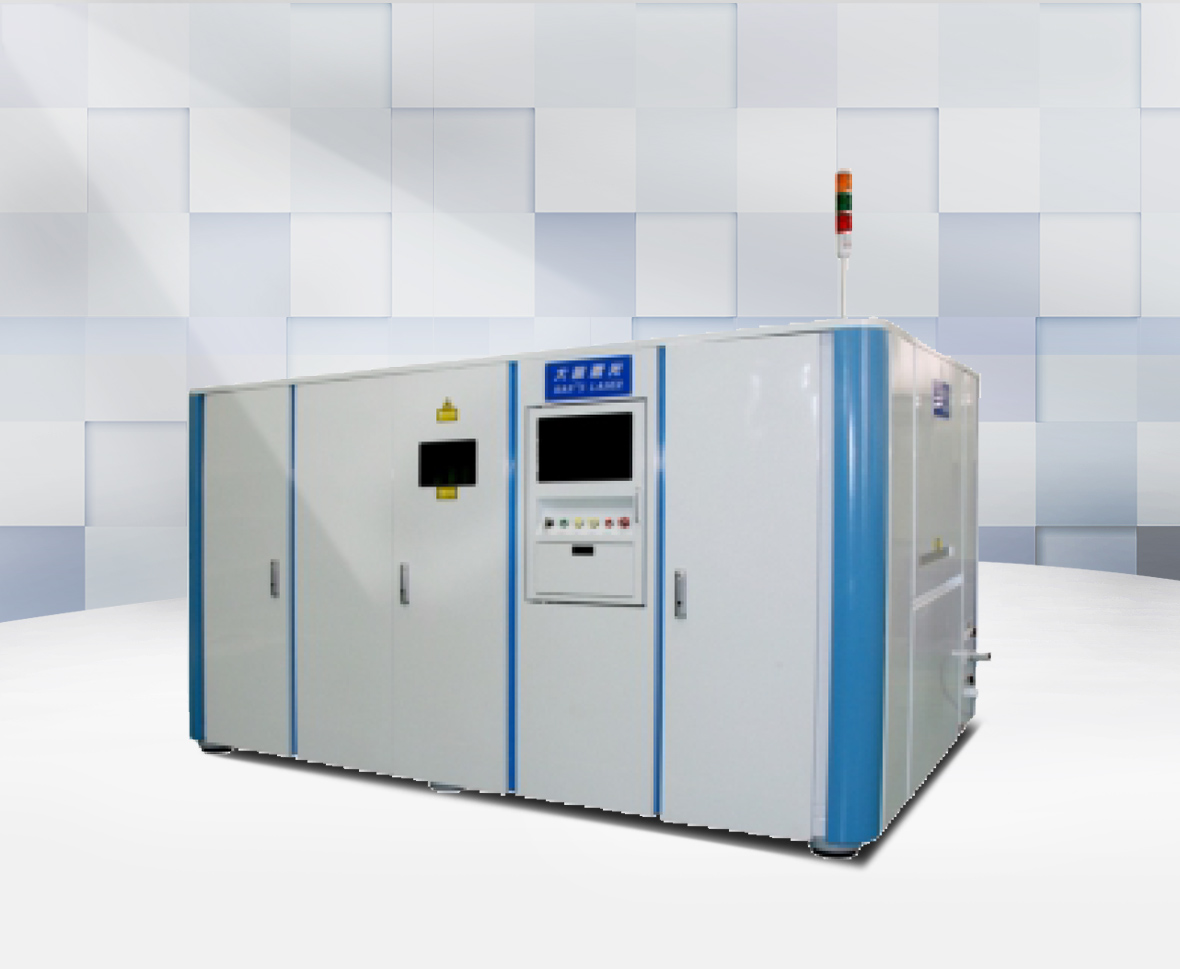

Laser Scribing Machine for Thin-film Solar Cell
Brief Description
Suitable for thin film batteries such as CIGS, CdTe, perovskite, and color-changing glass.
Categories
PV Industry
Contact Us
Mainly used in P1/P2/P3 laser scribing of thin film solar cells, and laser insulation scribing
The thin film battery is divided into small pieces by laser scribing and connected in series at the same time, so as to reduce the loss of electric energy and increase the output voltage
Main features
The thin film battery is divided into small pieces by laser scribing and connected in series at the same time, so as to reduce the loss of electric energy and increase the output voltage
Main features
- The processing quality is good, cut without residue and does not hurt the bottom. The line width is consistent, and the process flow is stable;
- Different processing graphics;
- Multi-head simultaneous processing, high processing efficiency.
Main Parameters
| Basic function | Thin-film solar cells P1/ P2/ P3/ laser scribing/ P4 laser edge cleaning (select laser corresponding to different processes) Can customize thin film solar cell/BIPV/smart photovoltaic glass solution |
| Laser generator lifetime | 10000 hours |
| Work hole diameter | 1500mm/s |
| The position of the holes that can be machined | multi-channel simultaneous machining |
| Minimum center distance of machinable holes | Round, square spot |
| Machining hole position accuracy | ±0P1: 20-60um, P2: 40um-80um P3: 40um-80um |
| Laser power | >2MΩ |
| Hole appearance requirements | >1GΩ@1KV |
Sample
Laser Scribing
Laser Scribing
Laser Scribing
