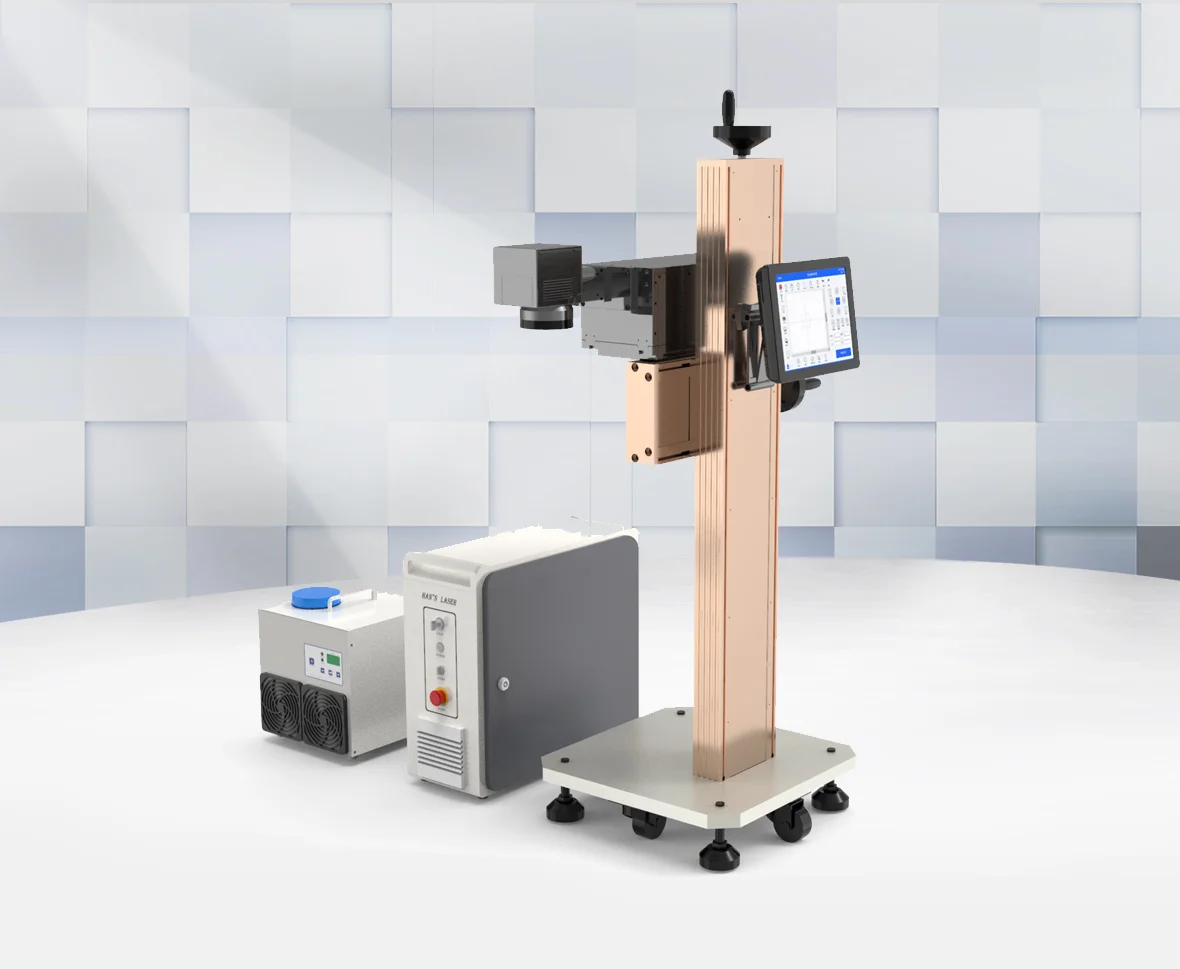

HANS600S-M
Brief Description
HANS UV series products can be used on most materials on normal 3rd level flight marking, especially useful on materials like： plastic, PE Bottle, package bag, PVC pipe line, etc. It is also used for data communication marking.
Categories
Flying marking machine
Contact Us
Applicatioin
HANS UV series products can be used on most materials on normal 3rd level flight marking, especially useful on materials like： plastic, PE Bottle, package bag, PVC pipe line, etc. It is also used for data communication marking.
Main Parameter
HANS UV series products can be used on most materials on normal 3rd level flight marking, especially useful on materials like： plastic, PE Bottle, package bag, PVC pipe line, etc. It is also used for data communication marking.
Main Parameter
| Item | Parameter |
| Wavelength | 355nm |
| Power | ≥5W |
| Working Frequency | 8-200KHz |
| Minimum Code Width | 0.15mm |
| Minimum Character Size | 0.40mm |
| Repeatability Accuracy | ±0.01mm |
| Standard Marking Range | 100mm×100mm |
| Standard Focal Length | 186±2mm(From laserhead baseboard to focus area) |
| Optional Marking Range | 60mm×60mm至to 360mm×360 mm |
| Nominal Line Speed | ≥10000mm/s |
| Printing Code | ＞700 Chars/Sec |
| Power Requirement | AC 220V/50HZ/10A |
| Overall Power Consumption | Peak≤1.5KW，Average≤0.75KW |
| Cooling Mode | Thermostat water cooling |
| Level of Protection | IP54 |
| Cable Length | 3m |
| Machine Size | main beam：611.5mm×162mm×189mm |
| main control cabinet：512mm×220mm×456mm | |
| Water cooler：270mm×315mm×305mm | |
| lifting platform：450mm×450mm×1100mm(Customized) |
Sample
Sample
Sample
Sample
