HANS36K-M
Brief Description
HANS CO2 series products are mainly applicable to non-metallic materials of high-speed flight marking, such as paper boxes (boxes, labels), plastic bottles, flexible packaging films (bags), coated metal cover (boxes, cans), glass bottles, ceramic bottles
Categories
Flying marking machine
Contact Us
Application
HANS CO2 series products are mainly applicable to non-metallic materials of high-speed flight marking, such as paper boxes (boxes, labels), plastic bottles, flexible packaging films (bags), coated metal cover (boxes, cans), glass bottles, ceramic bottles, wood, and so on. It is also used for data communication marking.
Main parameter
HANS CO2 series products are mainly applicable to non-metallic materials of high-speed flight marking, such as paper boxes (boxes, labels), plastic bottles, flexible packaging films (bags), coated metal cover (boxes, cans), glass bottles, ceramic bottles, wood, and so on. It is also used for data communication marking.
Main parameter
| Item | Parameter |
| Laser Type | CO2 Laser Coder |
| Minimum Code Width | 0.15mm |
| Minimum Character Size | 0.40mm |
| Repeatability Accuracy | ±0.01mm |
| Standard Marking Range | 100mm×100mm |
| Standard Focal Length | 135mm |
| Optional Marking Range | 60mm×60mm ~ 360mm×360 mm |
| Nominal Line Speed | ≥7000mm/s |
| Printing Code | ＞500 Chars/Sec |
| Power Requirement | AC 220V/50HZ/10A |
| Overall Power Consumption | Peak≤1KW，Average≤0.5KW |
| Cooling Mode | 风冷Air Cooling |
| Level of Protection | IP54 |
| Cable Length | 3m |
| Machine Size | main beam：824mm×140mm×189.5mm |
| main control cabinet：512mm×220mm×456mm | |
| lifting platform：450mm×450mm×1100mm(Customized) |

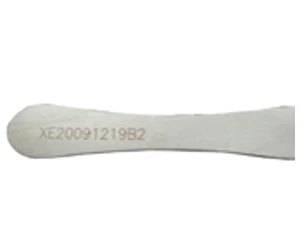

Sample
