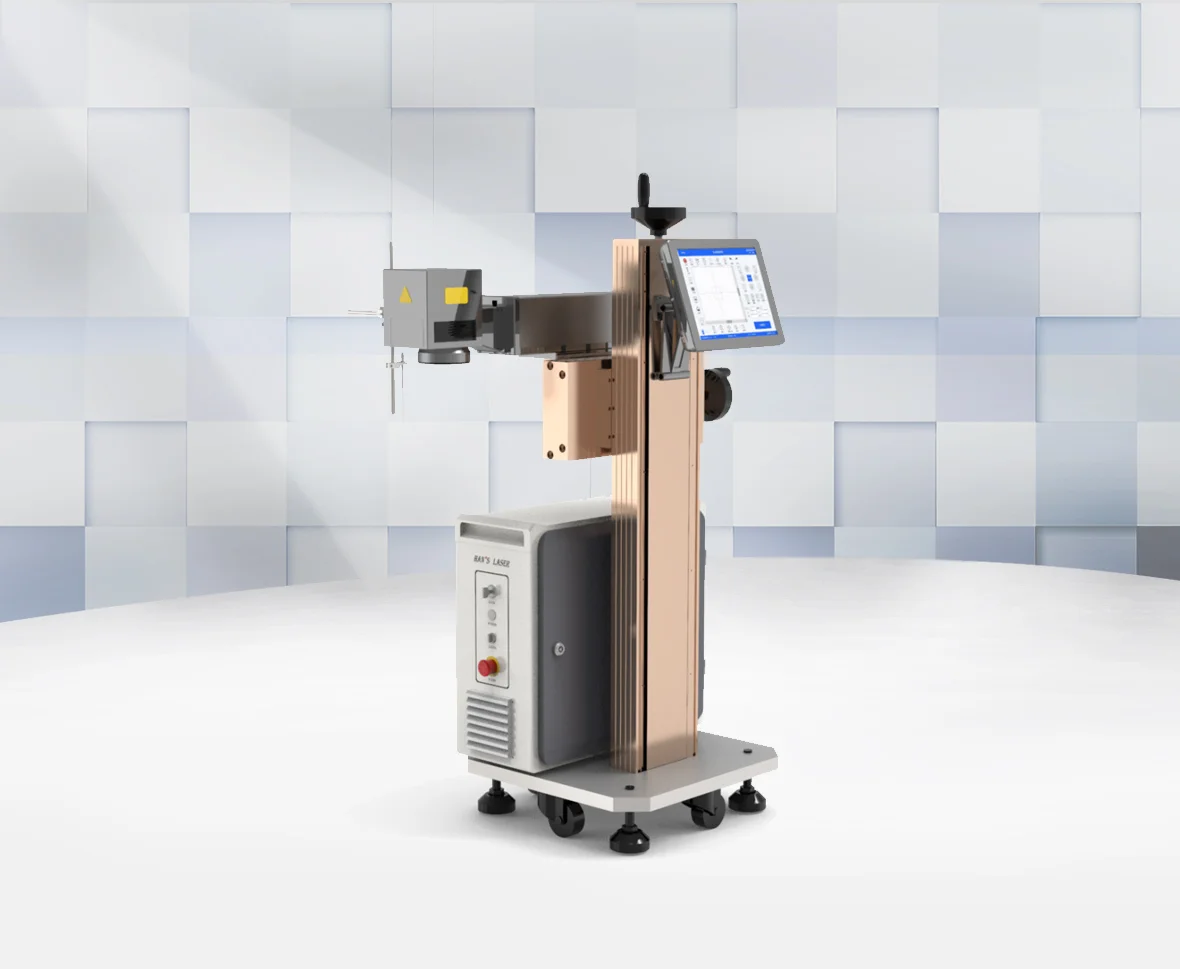

HANS20Y-M
Brief Description
HANS Fiber Laser mainly applicable to metal materials, partial plastic materials and coated non-metal materials by high-speed flight marking. Such as aluminum、stainless steel、copper etc., and few plastic material, metal can with coating layer, color print
Categories
Flying marking machine
Contact Us
Industry Application
HANS Fiber Laser mainly applicable to metal materials, partial plastic materials and coated non-metal materials by high-speed flight marking. Such as aluminum、stainless steel、copper etc., and few plastic material, metal can with coating layer, color printing paper etc.
Main Parameter
HANS Fiber Laser mainly applicable to metal materials, partial plastic materials and coated non-metal materials by high-speed flight marking. Such as aluminum、stainless steel、copper etc., and few plastic material, metal can with coating layer, color printing paper etc.
Main Parameter
| Item | Parameter |
| Wavelength | 1064nm |
| Power | 20W |
| Stability | ≤5% |
| Single Pulse Energy | 1mJ |
| Working Frequency | 20-200KHz |
| Minimum Code Width | 0.1mm |
| Minimum Character Size | 0.30mm |
| Repeatability Accuracy | ±0.01mm |
| Standard Marking Range | 100mm×100mm |
| Standard Focal Length | 188±2mm(From laserhead baseboard to focus area) |
| Optional Marking Range | 70mm×70mm to 400mm×400 mm |
| Nominal Line Speed | ≥10000mm/s |
| Printing Code | ＞700 Chars/Sec |
| Power Requirement | AC 220V/50HZ/3A |
| Overall Power Consumption | Peak≤0.5KW，Average≤0.25KW |
| Cooling Mode | Air Cooling |
| Level of Protection | IP54 |
| Cable Length | 3m |
| Machine Size | main beam：578mm×96.5mm×124mm |
| main control cabinet：515mm×220mm×456mm | |
| lifting platform：450mm×450mm×1100mm(Customized) |

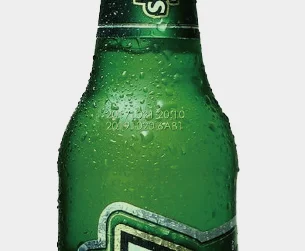

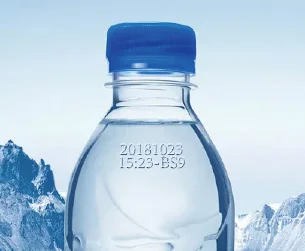

Sample
Sample
Sample
Sample
