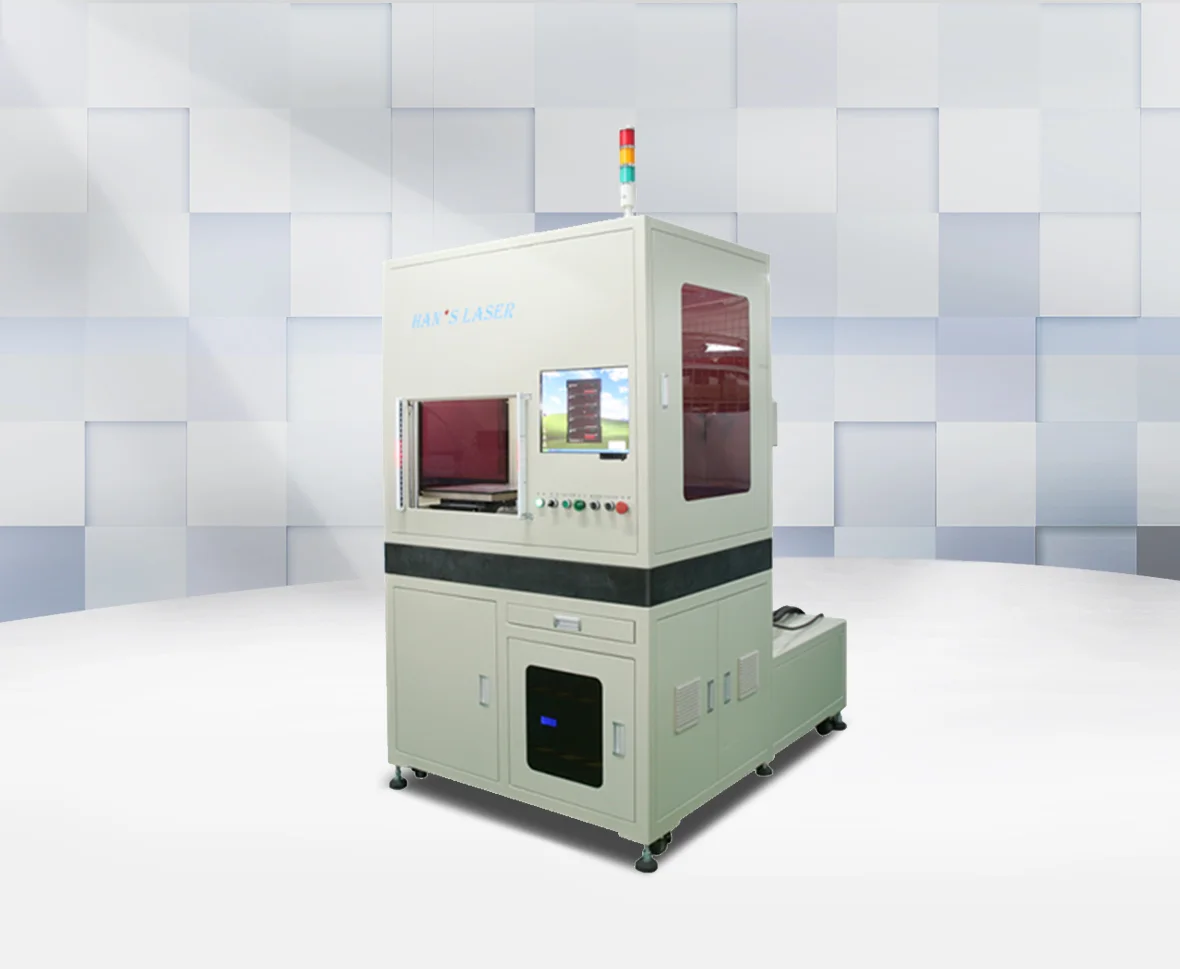

Thin film laser cutting system
Brief Description
The movement is realized by high-precision linear motor, which drives the X-Y axis to the corresponding position, and the software triggers the light cutting and marking according to the pattern; After all products are cut and marked, there are audible an
Categories
Precision cutting
Contact Us
Characters
The movement is realized by high-precision linear motor, which drives the X-Y axis to the corresponding position, and the software triggers the light cutting and marking according to the pattern; After all products are cut and marked, there are audible and visual instructions. This scheme has the characteristics of high production efficiency, convenient operation, stable performance and good cutting and marking effect.
Control mode: Motion control card
Cutting mode: CO2 laser
Automation level: Manually feeding, adsorption and fixation, automatic cutting.
Other characters: It is equipped with vacuum adsorption platform and exhaust system; It locates the product on the loading platform easily; A smoking pipe is installed near the cutting point to extract the smoke generated during cutting.
Application: label, PET film such products
Specification
The movement is realized by high-precision linear motor, which drives the X-Y axis to the corresponding position, and the software triggers the light cutting and marking according to the pattern; After all products are cut and marked, there are audible and visual instructions. This scheme has the characteristics of high production efficiency, convenient operation, stable performance and good cutting and marking effect.
Control mode: Motion control card
Cutting mode: CO2 laser
Automation level: Manually feeding, adsorption and fixation, automatic cutting.
Other characters: It is equipped with vacuum adsorption platform and exhaust system; It locates the product on the loading platform easily; A smoking pipe is installed near the cutting point to extract the smoke generated during cutting.
Application: label, PET film such products
Specification
| Motion platform | linear platform X axis(300mm), Y axis(300mm), The manual up and down lifting stroke of the worktable is 250mm |
| Platform precision | repeated positioning precision 0.02mm |
| Max processing area | 400mm*300mm |
| Power | single phase220V/50HZ |
| Air source | 0.6~0.9MPa |
| Overall size(L*W*H) | 1250mm*2100mm*1750mm |
