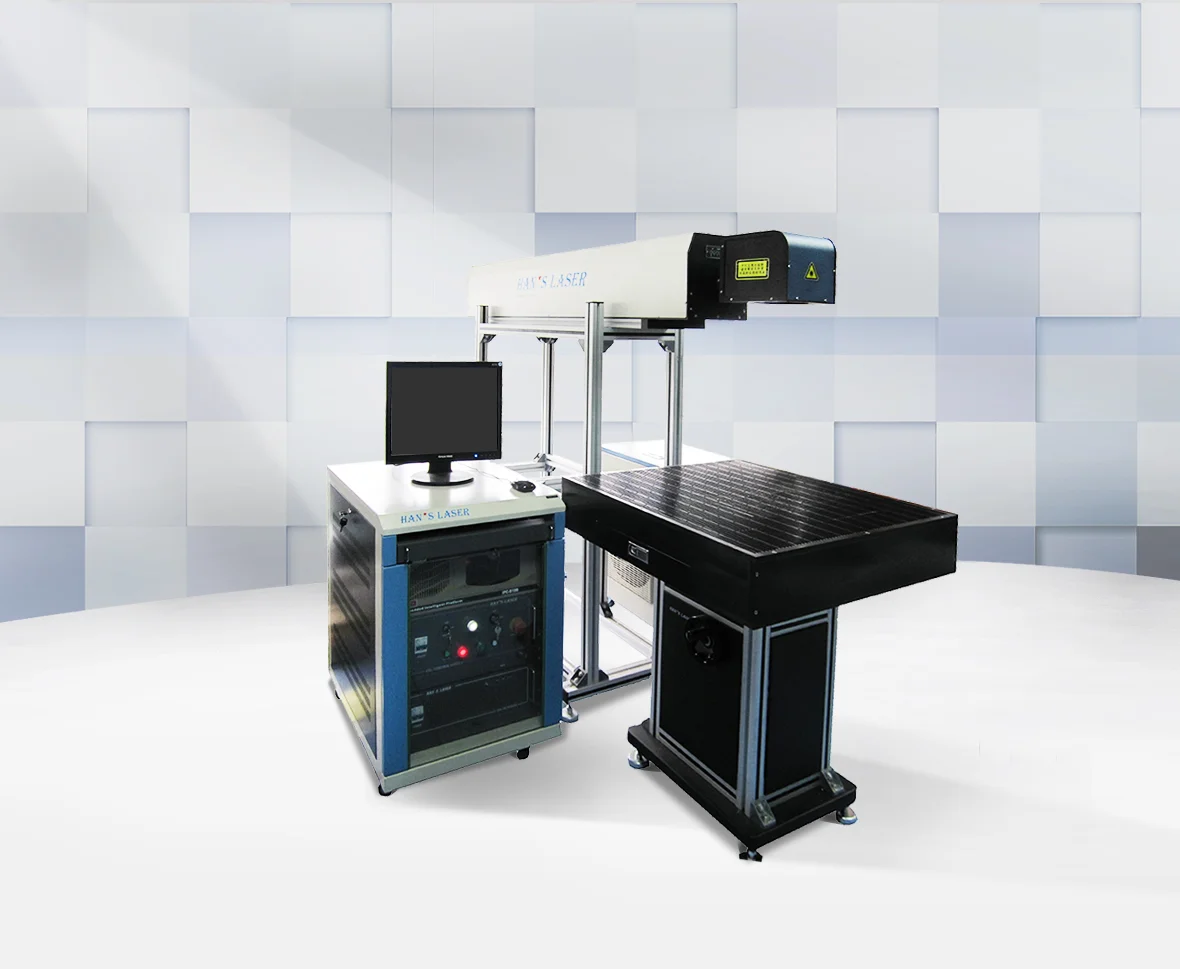

CO2-D200
Brief Description
It can be widely used in graphic marks on craft gifts, clothing leather, wood paper, food packaging, FPC, ceramics, semiconductors, crystal glass, plastic parts, silicone rubber products and other non-metallic materials, as well as cutting.
Categories
CO2 laser marking
Contact Us
Characters
Advanced processing model, high efficiency, low cost;
Full automation, easy to operate;
Environmental friendly;
Easy to identify products.
Specification
Advanced processing model, high efficiency, low cost;
Full automation, easy to operate;
Environmental friendly;
Easy to identify products.
Specification
| Mode | CO2-D200 |
| Laser | CO2 metal RF laser |
| Wavelength | 10.64um |
| Max output power | 200W |
| Repetition frequency | ≤25kHz |
| Marking area | 500mm×500mm |
| Marking speed | ≤7000mm/s |
| Min line width | 0.15mm |
| Min Character | 0.8mm |
| Cooling mode | Water cooling |
| Repetition accuracy | ±0.01mm |
| Overall size | 2115mm×730mm×1400mm |
| Power suply | 220V/Single phase/50Hz/20A |
| Lens | Front focus |
| IPC | Great Wall |
| Monitor | 17” LED monitor |
| Galvanometer system | CXY30 |
| Software | HLM＿V1.0 |
| Marking control card | EMCC marking control card |
Sample

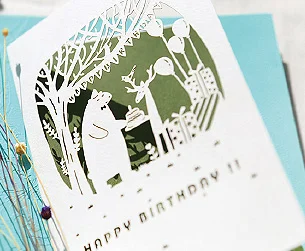

CO2 marking sample

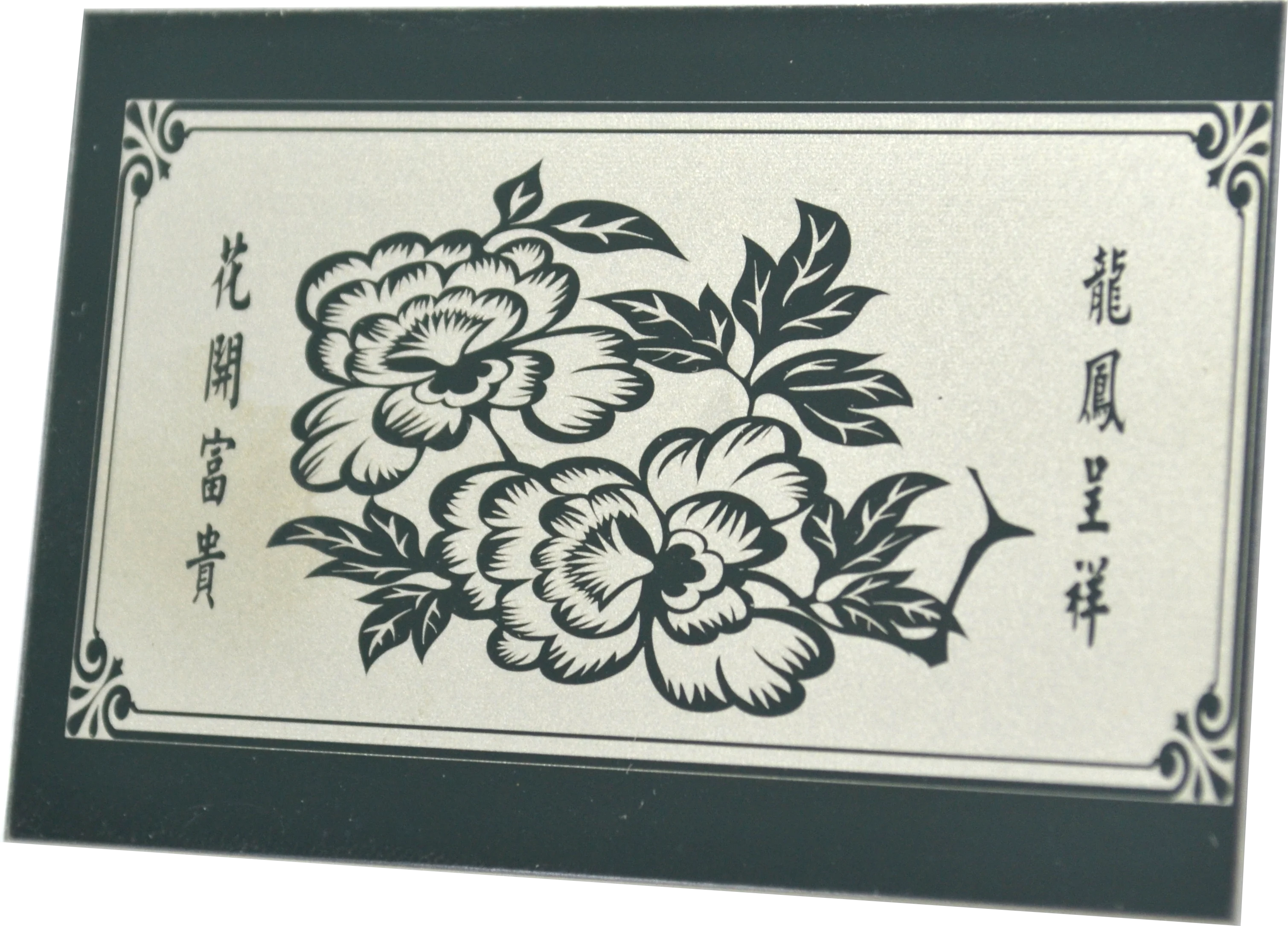

CO2 marking sample
