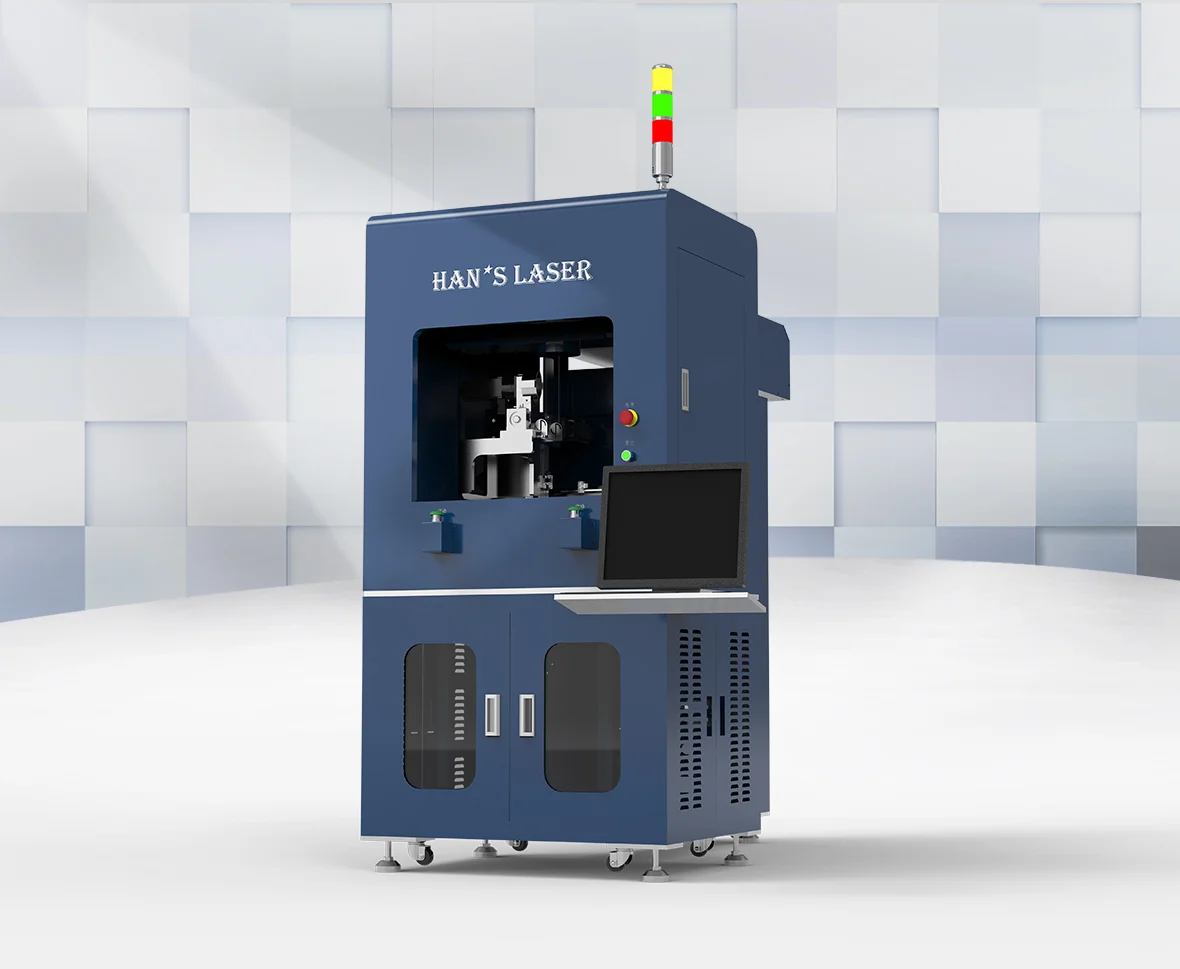

Basic parameters of equipment
Environmental requirements for equipment use
1 The ambient temperature is required to be between 15-30 ℃, and air conditioning is required.
2 The humidity requirement is 40% - 80%. If there is no condensation, a dehumidifier should be installed.
3 Power supply grid requirements: 220V; 50Hz 。
4 Fluctuation of power supply network: ± 5%, and the power grid ground wire meets international requirements. Electronic automatic voltage stabilizing and current stabilizing devices shall be installed in areas where the voltage amplitude is more than 5%.
5 There shall be no strong electromagnetic signal interference near the installed equipment. Avoid radio transmitting stations (or relay stations) around the installation site.
6 Foundation amplitude: less than 50um; Vibration acceleration: less than 0.05g. Avoid a large number of stamping and other machine tools and equipment nearby. The equipment space shall be smoke-free and dust-free, and the working environment with serious dust such as metal polishing and grinding shall be avoided.
7 Air pressure: 5-8KG / cm2.
8 Some environments should be equipped with anti-static floor, strengthen shielding, etc.
9 There are strict requirements for the water quality of working cooling circulating water, which requires the use of purified water, deionized water or distilled water. Tap water, mineral water and other water containing high metal ions or other minerals are not allowed.
Equipment size | 1950L)X950W)X2200 (H) |
Marking machine power | 80W |
Galvanometer repetition accuracy | ±0.01mm |
Marking lens focal length | 290±10mm |
Z-axis stroke | 100mm |
X \ Y axis stroke | 200mm |
X \ y \ Z axis repeated positioning accuracy | ±0.02mm |
Power situation | AC 220V±10%/50Hz |
Smoking interface | Φ100mm |
Environmental requirements for equipment use
1 The ambient temperature is required to be between 15-30 ℃, and air conditioning is required.
2 The humidity requirement is 40% - 80%. If there is no condensation, a dehumidifier should be installed.
3 Power supply grid requirements: 220V; 50Hz 。
4 Fluctuation of power supply network: ± 5%, and the power grid ground wire meets international requirements. Electronic automatic voltage stabilizing and current stabilizing devices shall be installed in areas where the voltage amplitude is more than 5%.
5 There shall be no strong electromagnetic signal interference near the installed equipment. Avoid radio transmitting stations (or relay stations) around the installation site.
6 Foundation amplitude: less than 50um; Vibration acceleration: less than 0.05g. Avoid a large number of stamping and other machine tools and equipment nearby. The equipment space shall be smoke-free and dust-free, and the working environment with serious dust such as metal polishing and grinding shall be avoided.
7 Air pressure: 5-8KG / cm2.
8 Some environments should be equipped with anti-static floor, strengthen shielding, etc.
9 There are strict requirements for the water quality of working cooling circulating water, which requires the use of purified water, deionized water or distilled water. Tap water, mineral water and other water containing high metal ions or other minerals are not allowed.
