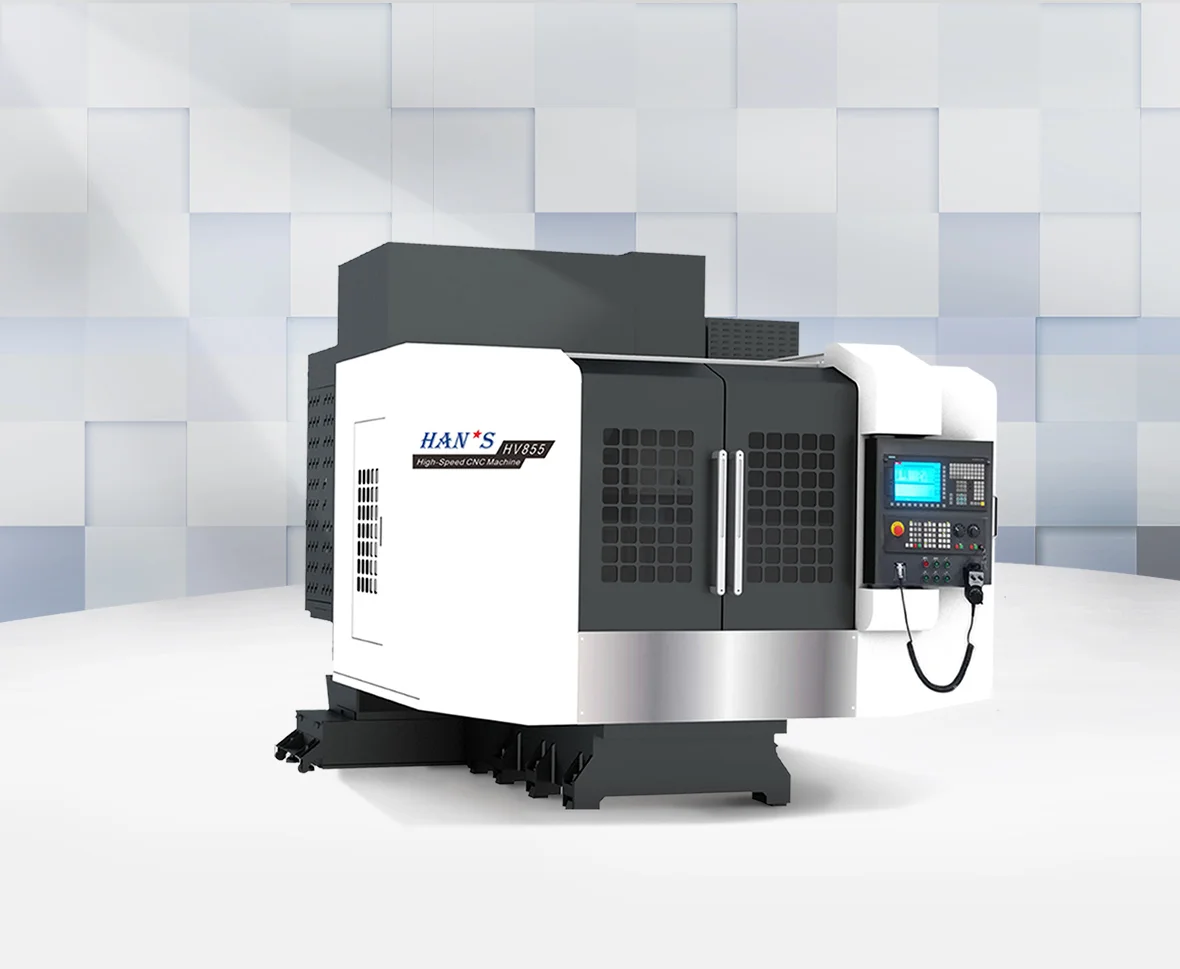

HV855
Brief Description
Can be widely used in automation machine parts, molds, medical, electronics, machinery, automotive, aircraft, aerospace, shipbuilding, defense and other fields of product processing.
Categories
Vertical machining cernter
Contact Us
Features:
1. The mechanical bed is made of castings, the material is stable and annealed to eliminate internal stress, ensuring long-term mechanical precision and life.
2. The column is a variable layer structure, which greatly improves the mechanical rigidity.
3. The three-axis screw rods are pre-tensioned in two sections, which are more rigid than single-ended pre-tensioning, have less influence on thermal variables, and have excellent precision stability.
4. The three-axis adopts the rail support, which can support heavy load and move quickly to ensure accurate positioning.
5. High-precision imported grinding grade ball screw, pre-tightening nut, higher transmission precision, ensuring long time mechanical error.
6. The rib reinforcement structure inside the spindle receptor provides stable support of the spindle to ensure reliable operation at high speed.
7. The moving parts are fully sealed and protected.
8. Gas source filtration: all Japanese SMC parts.
9. Automatic lubrication system: regular automatic oil supply system, long-term maintenance-free, grease lubrication, anti-drip, intimate maintenance.
10. Equipped with automatic tool change system to greatly improve processing efficiency.
2. The column is a variable layer structure, which greatly improves the mechanical rigidity.
3. The three-axis screw rods are pre-tensioned in two sections, which are more rigid than single-ended pre-tensioning, have less influence on thermal variables, and have excellent precision stability.
4. The three-axis adopts the rail support, which can support heavy load and move quickly to ensure accurate positioning.
5. High-precision imported grinding grade ball screw, pre-tightening nut, higher transmission precision, ensuring long time mechanical error.
6. The rib reinforcement structure inside the spindle receptor provides stable support of the spindle to ensure reliable operation at high speed.
7. The moving parts are fully sealed and protected.
8. Gas source filtration: all Japanese SMC parts.
9. Automatic lubrication system: regular automatic oil supply system, long-term maintenance-free, grease lubrication, anti-drip, intimate maintenance.
10. Equipped with automatic tool change system to greatly improve processing efficiency.
Specifications:
| No. | Item | Unit | HV855 | |
| 1 | Working area | X/Y/Z axis stroke | mm | 800/520/550 |
| 2 | Minimum distance from the spindle nose to the worktable | mm | 120~670 | |
| 3 | Work table | Table size | mm | 1000*500 |
| 4 | Max. load | Kg | 450 | |
| 5 | T-slot size | mm | 5-18*110 | |
| 6 | Main drive | Max rotation speed | rpm | 12000 |
| 7 | Max torque（S6 40% DC） | Nm | 95 | |
| 8 | Rated torque（S1 100% DC） | Nm | 45 | |
| 9 | Max power（S6 40% DC） | Kw | 15 | |
| 10 | Rated power（S1 100% DC） | Kw | 7 | |
| 11 | Tool charger | Tool type | BT40 | |
| 12 | Tool magazine | Pockets | 24 | |
| 13 | Tool magazine form | Knife arm | ||
| 14 | Max tool diameter (full tools/adjacent tools) | mm | 80/150 | |
| 15 | Max tool length | mm | 350 | |
| 16 | Max tool weight | Kg | 8 | |
| 17 | Tool-tool change time（T to T） | sec | 3.9 | |
| 18 | Chip-chip change time（C to C） | sec | 5.9 | |
| 19 | Feed | Feed velocity（X/Y/Z） | m/min | 30/30/30 |
| 20 | Rapid moving speed（X/Y/Z） | m/min | 48/48/48 | |
| 21 | Acceleration（X/Y/Z） | m/s2 | 10/10/10 | |
| 22 | Linear guide size（X/Y/Z） | mm | 35/35/35 | |
| 23 | Ball screw size（X/Y/Z） | ∮* incline | 32/32/40 | |
| 24 | Position accuracy（X/Y/Z） | mm | 0.01/300 | |
| 25 | Repeated accuracy（X/Y/Z） | mm | ±0.005 | |
| 26 | Mechnical data | Mechnical size（with water tank） | mm | 2874*2575*2720 |
| 27 | Mechnical weight（without water tank） | Kg | 4000 | |
| 28 | Control system | Mitsubishi M80 or Siemens 828D | ||

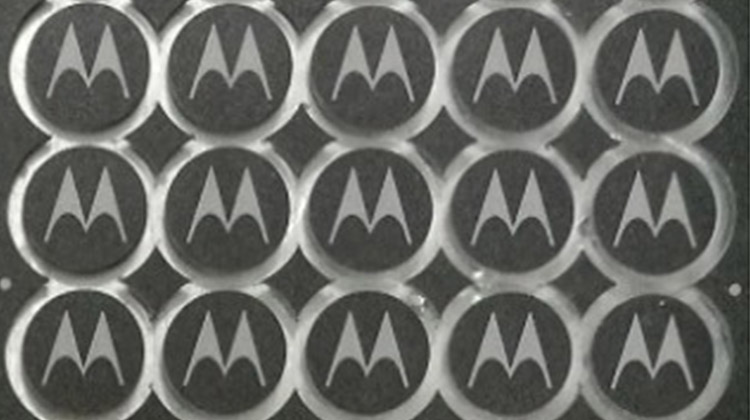

Sample

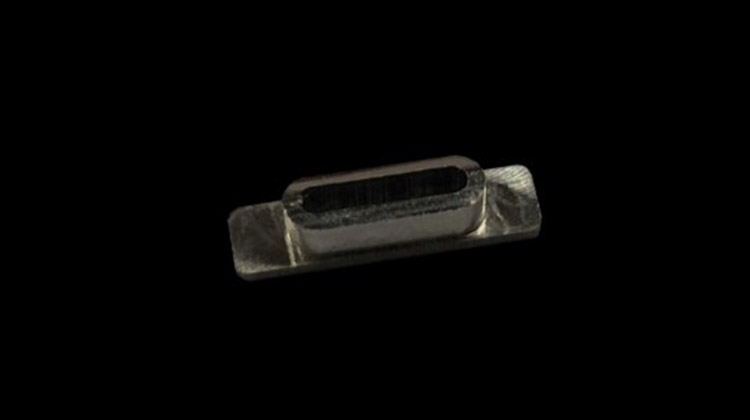

Sample

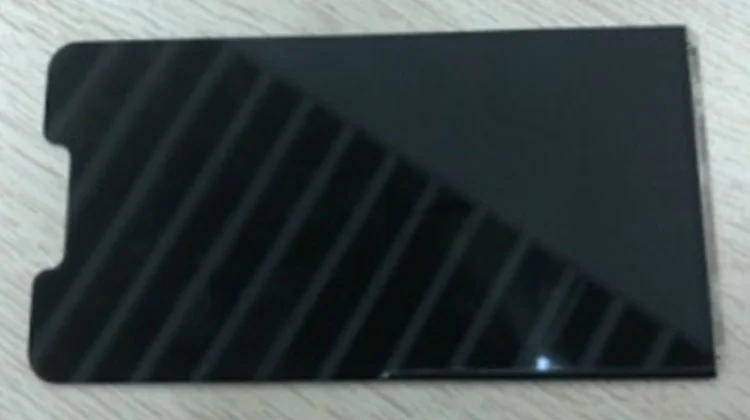

Sample

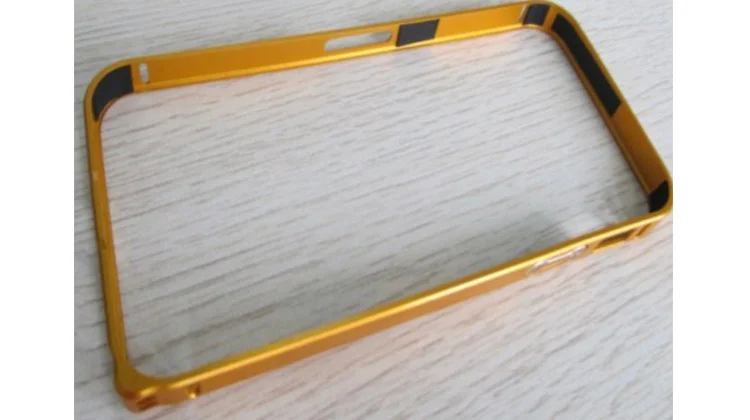

Sample

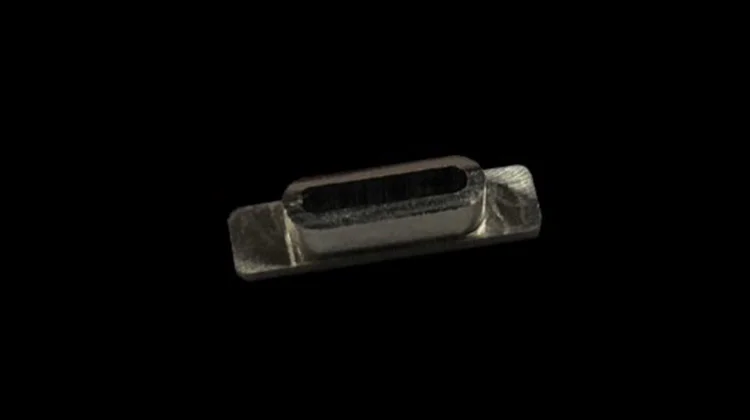

Sample

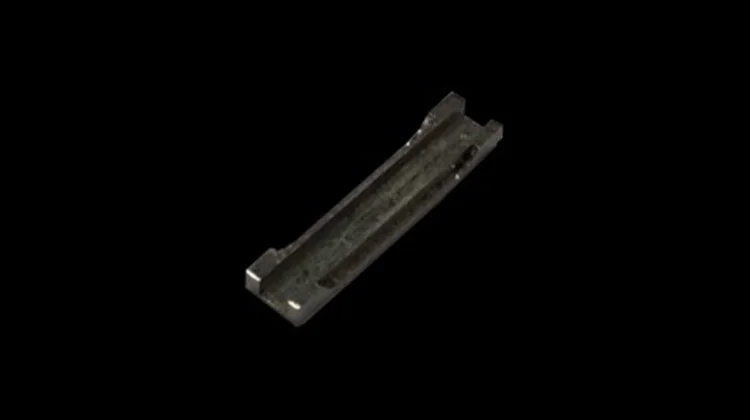

Sample

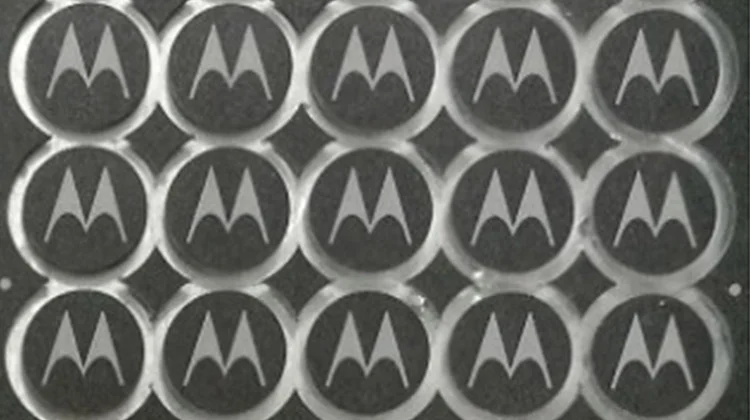

Sample
