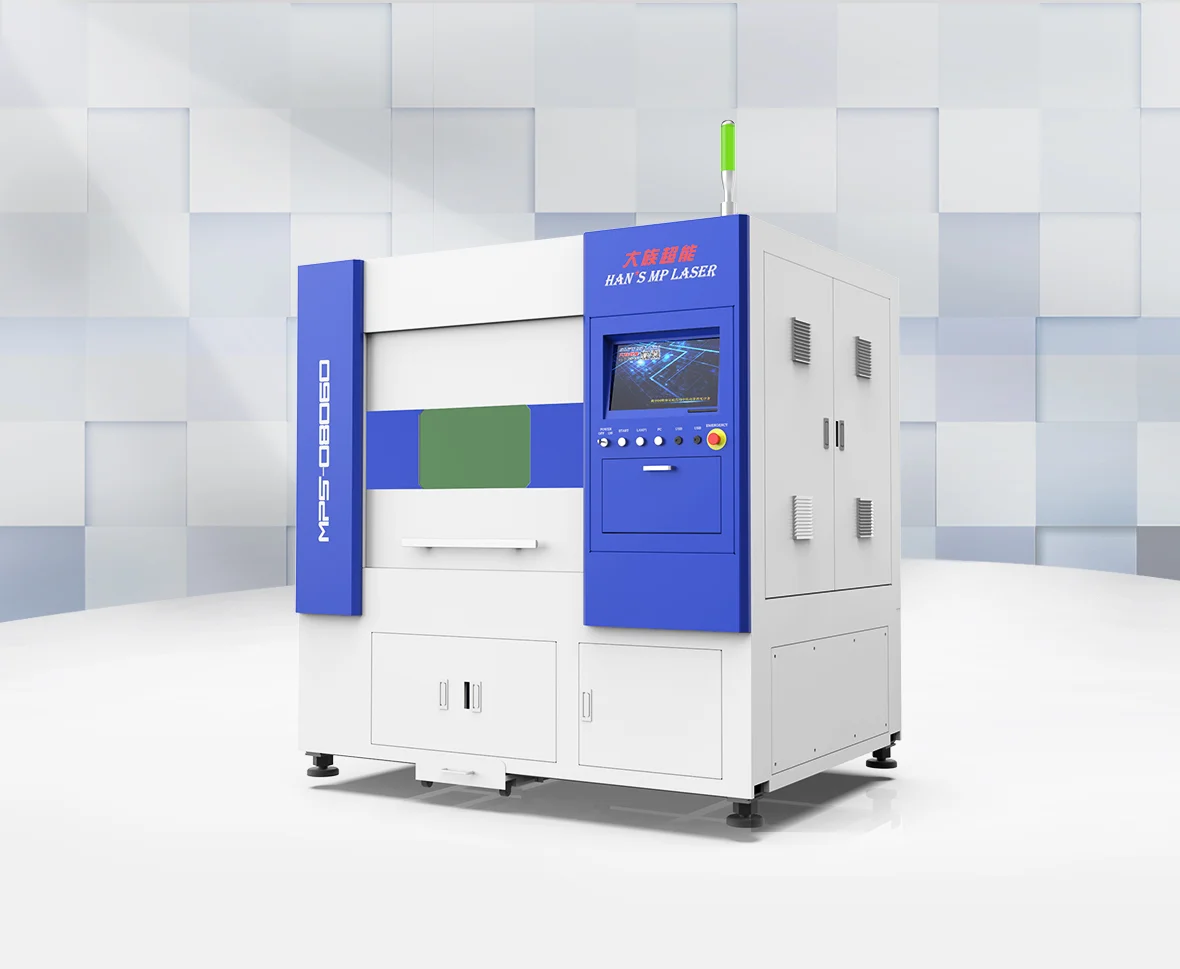

MP series Small format precision laser cutting machine
Brief Description
High processing accuracy: Equip with high torque servo motor and high precision imported reducer, high efficiency, favorable dynamic characteristics;
Categories
Sheet metal cutting
Contact Us
Good dynamics & cutting ability: High rigidity welded body with die-cast aviation aluminum gantry, improve the gantry strength and much lighter, enjoy good stability & durability;
Easy operation & intelligent: Adopt the professional digital control system, which is developed by Han’s MP, achieving the HANS digital control system with the features of good performance, high reliability and convenient operation.
Applications
Glasses/Jewelry Crafts/Watch Accessories Saw Blades/Silicon Steel Sheets Textile Machinery Accessories (Dropouts)/Advertising Signs/Hardware Too
Easy operation & intelligent: Adopt the professional digital control system, which is developed by Han’s MP, achieving the HANS digital control system with the features of good performance, high reliability and convenient operation.
| Item | MPS-0606LM | MPS-0806D |
| Processing area | 680mm×680mm | 800mm×600mm |
| XY axis location accuracy | ±0.002mm/m | ±0.03mm/m |
| XY axis repeat location accuracy | ±0.002mm | ±0.02mm |
| Max running speed | 48m/min | 30m/min |
| Max load of worktable | 5kg | 25kg |
| Power supply | 380V/50HZ | 380V/50HZ |
| Machine tool weight | 3.0 T | 1.0T |
| Dimension(L*W*H) | 1880×2000×1700mm | 2000×1500×2000mm |
Applications
Glasses/Jewelry Crafts/Watch Accessories Saw Blades/Silicon Steel Sheets Textile Machinery Accessories (Dropouts)/Advertising Signs/Hardware Too

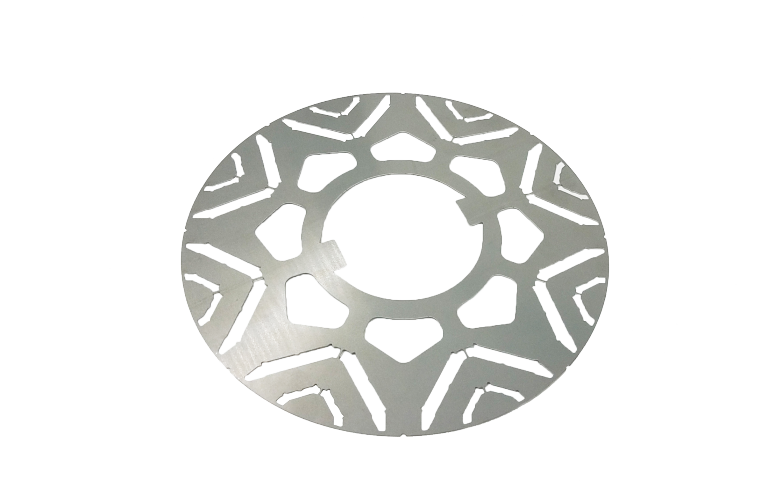

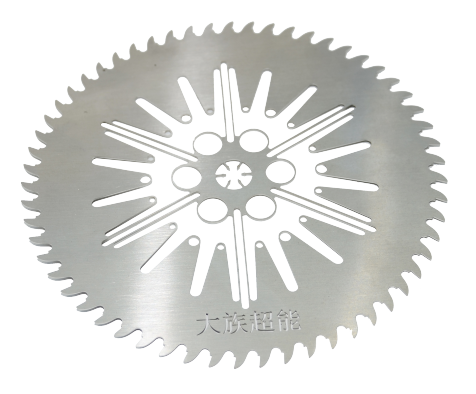

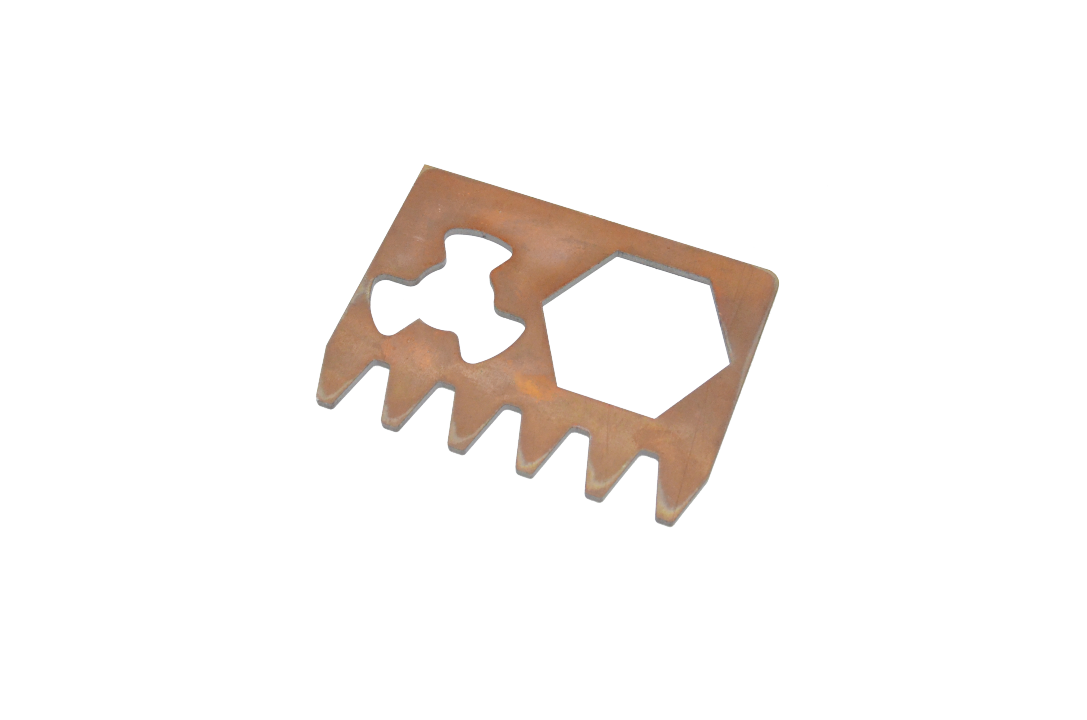

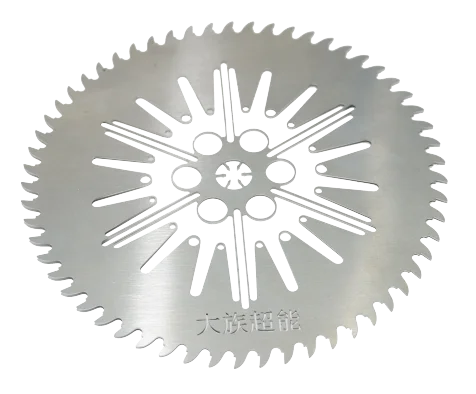

Sample
laser cutting
laser cutting
laser cutting
