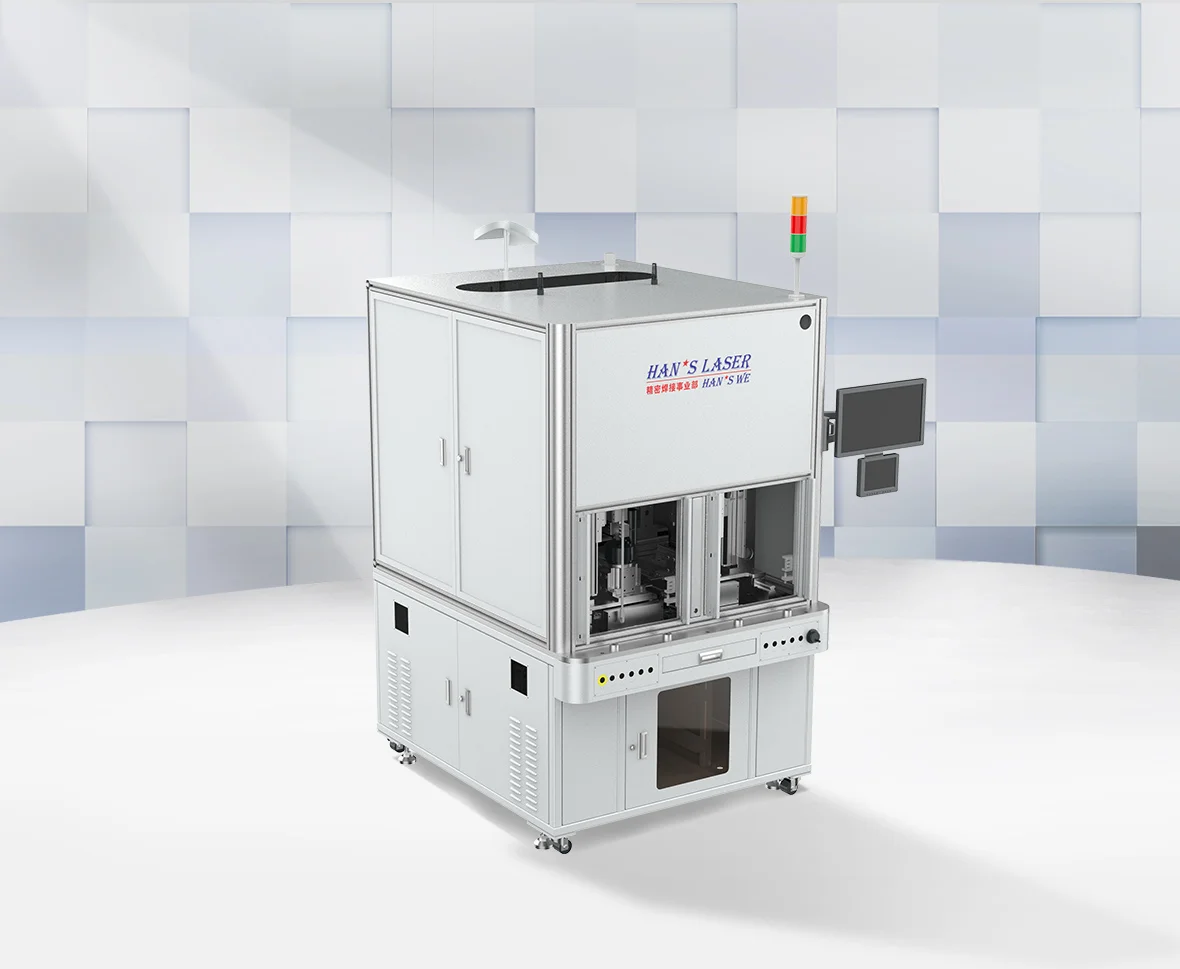

Sensor welding system
Brief Description
The sensor welding system is a solution for the assembly and welding of three parts: sensor pressure ring, sensor sheet and sensor core base. In view of the lack of coordination in the assembly of sensor products and the high demand of coaxiality, special
Categories
Precision welding machine
Contact Us
系统特点
Double worktables, increasing output.
Strong university, the replacement of fixture is simple and can be compatible with different products with different outer diameters,
Equipped with dust extraction function to reduce the welding smoke
Equipped with air blowing protection to ensure the effect of welding surface
Industrial control system, good man-machine interface, simple operation
Fully enclosed safety protection cover, set up access control and safety interlock to secure operation safety.
Double worktables, increasing output.
Strong university, the replacement of fixture is simple and can be compatible with different products with different outer diameters,
Equipped with dust extraction function to reduce the welding smoke
Equipped with air blowing protection to ensure the effect of welding surface
Industrial control system, good man-machine interface, simple operation
Fully enclosed safety protection cover, set up access control and safety interlock to secure operation safety.
System parameter
| Laser | WFF1000 |
| Welding joint | High power welding joint |
| Platform configuration | 7 axis |
| （X,Y,Y1,Y2,Z,R1,R2） Platform trail |
400mm* 200mm*500mm*500mm* 300mm |
| Control system | Industry PC+PLC |
| Worktable | double worktables |
| Automation degree | Manually loading and unloading, automatically welding |
| welding trail | CNC programming or demonstrating |
| Power demand | Single phase AC220V |
Sample
welding
