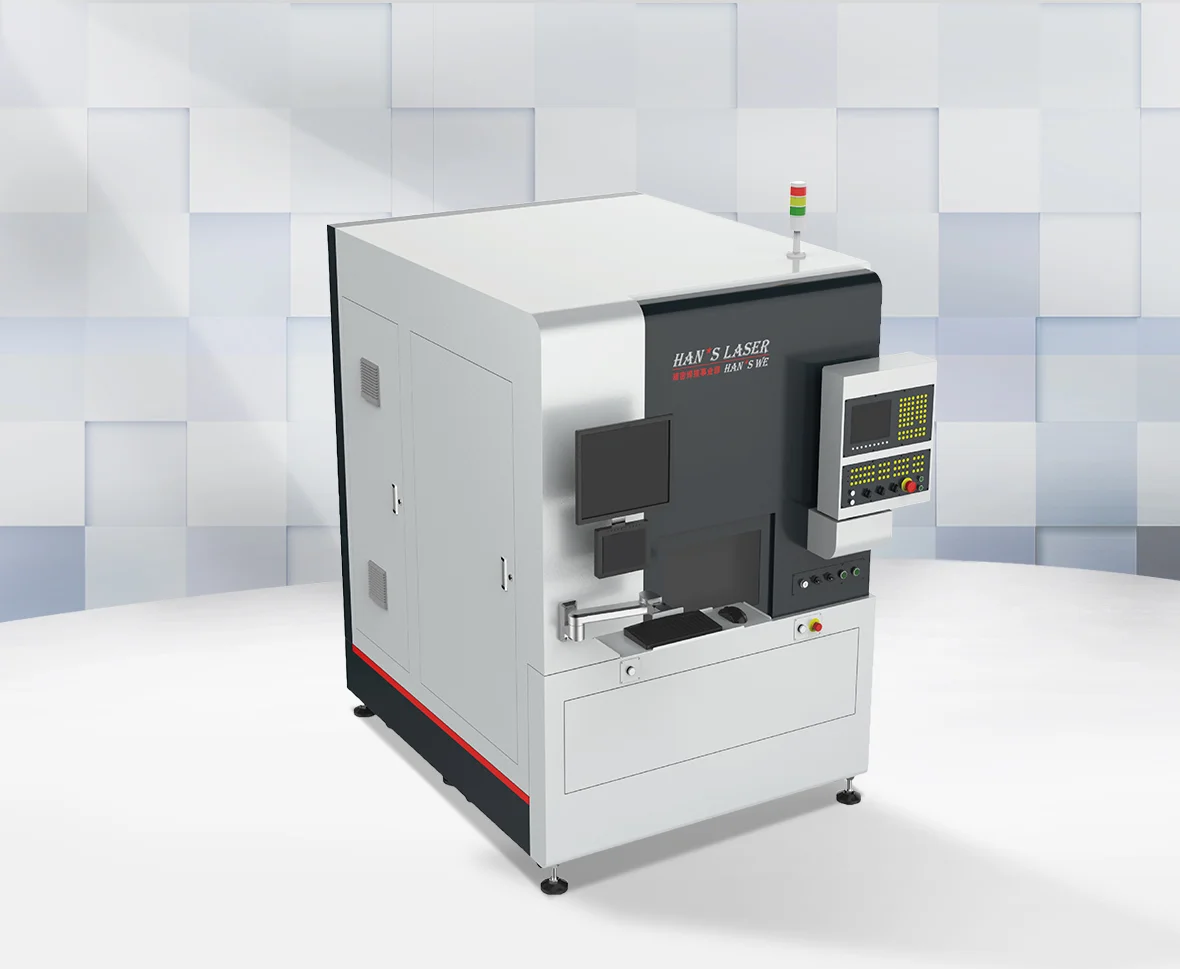

High precision five axis linkage welding system
Brief Description
The system is mainly used for laser welding of components of wearable products.
Categories
Precision welding machine
Contact Us
System introduction
The system is mainly used for laser welding of components of wearable products.
Equipped with a 5-dimensional electric platform, the system can realize the welding of multiple planes of components. It has obvious advantages for the welding of nonlinear components.
The system is also equipped with CNC operating system, which is convenient to control.
System characters
The special fixture of the system has ingenious design, high positioning accuracy and high yield
The system conforms to the ergonomic structure, and the software is humanized and easy to operate and use
The system has good compatibility, can replace fixtures to realize the production of different sizes.
Product advantages
The equipment can be switched quickly for products of various specifications
Automatic track adjusting device.
High performance, high cost performance ratio,
Customization based on customers’ requirement.
Application
Widely used in IT manufacturing, electronic circuits, instruments and meters, mobile communication, hardware tools, household applications, kitchenware, precision machinery, building materials, jewelry, pharmaceutical packaging such industries.
The system is mainly used for laser welding of components of wearable products.
Equipped with a 5-dimensional electric platform, the system can realize the welding of multiple planes of components. It has obvious advantages for the welding of nonlinear components.
The system is also equipped with CNC operating system, which is convenient to control.
System characters
The special fixture of the system has ingenious design, high positioning accuracy and high yield
The system conforms to the ergonomic structure, and the software is humanized and easy to operate and use
The system has good compatibility, can replace fixtures to realize the production of different sizes.
Product advantages
The equipment can be switched quickly for products of various specifications
Automatic track adjusting device.
High performance, high cost performance ratio,
Customization based on customers’ requirement.
Application
Widely used in IT manufacturing, electronic circuits, instruments and meters, mobile communication, hardware tools, household applications, kitchenware, precision machinery, building materials, jewelry, pharmaceutical packaging such industries.
System parameter
| Configuration | Technical parameters and description |
| Model | HW-X5-200 |
| Laser | all series of lasers |
| Control way | PC + 5-axis linkage control, Galvanometer control |
| Platform configuration | 3 sets pf electric platforms, 1 set of rotary table |
| maximum synthetic speed of 5 axis | 60rpm |
| Repeated positioning precision of motion platform | <±0.005mm |
| Repeated positioning precision of rotary platform | ±5″ |
| Worktable | Single worktable |
| Automation Degree | Manually loading and unloading, automatically welding |
| Welding trail | Point, straight line, circle, square or any spatial curved figure of straight line and arc |
| Application scope | Linear / nonlinear parts track |
| Processing dimension | 300X*300Y*200Z(mm) |
| Dimension | 1750W*1400D*2200H(mm) |
| Torque | 3N.M(A)、10N.M |
| Power demand | AV220V±10%/50Hz |

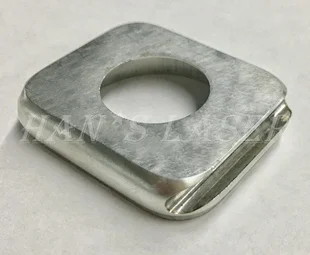

Sample
welding
