HE20
HE20
Brief Description
With Han's MOPA series fiber laser source.
Short start time, narrow optical pulse, high peak power and
wide repeated frequency domain
Categories Fiber laser marking
Contact Us
Features

1.Economic, with high performance cost ratio
2.High performance and stability
3.High speed, efficiency and accuracy
4.High optical quality and small light spot
5.Advanced software; be compatible with mass production



Configuration

1.Fully enclosed design, Hans Mopa Laser Source
2.Power 20W/30W/50W/100W
3.Marking area 110*110-300*300mm
4.Light fence and safety circuits
5.Automatic  Hans EMCC software
6.Dimension: 750*1100*1700mm (L*W*H)


1

Laser wavelength

1064nm

2

Laser power

20W,30W,50W,100W

3

Repeat frequency

10-20KHz

4

Min line width

≥0.05mm

5

Min character

0.3mm

6

Marking area

100*100mm, 175*175mm, 300*300mm

7

Repeat accuracy

 ±0.003mm

8

Marking speed

≤7000mm/s

9

Power consumption

1KW (20W laser)

10

Power supply

220V/single phrase/50Hz/60Hz/5A

11

Cooling system

Air cooling

12

Software

EMCC Hans

14

Computer

Win7/10 English version

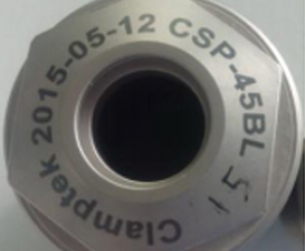

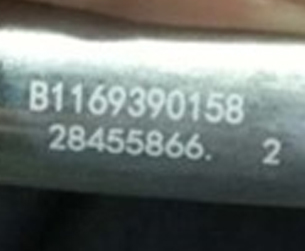

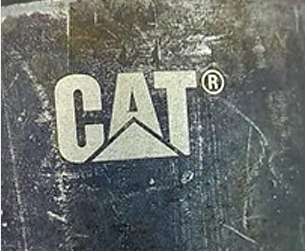

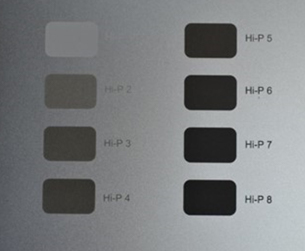

Sample
