Brief Description

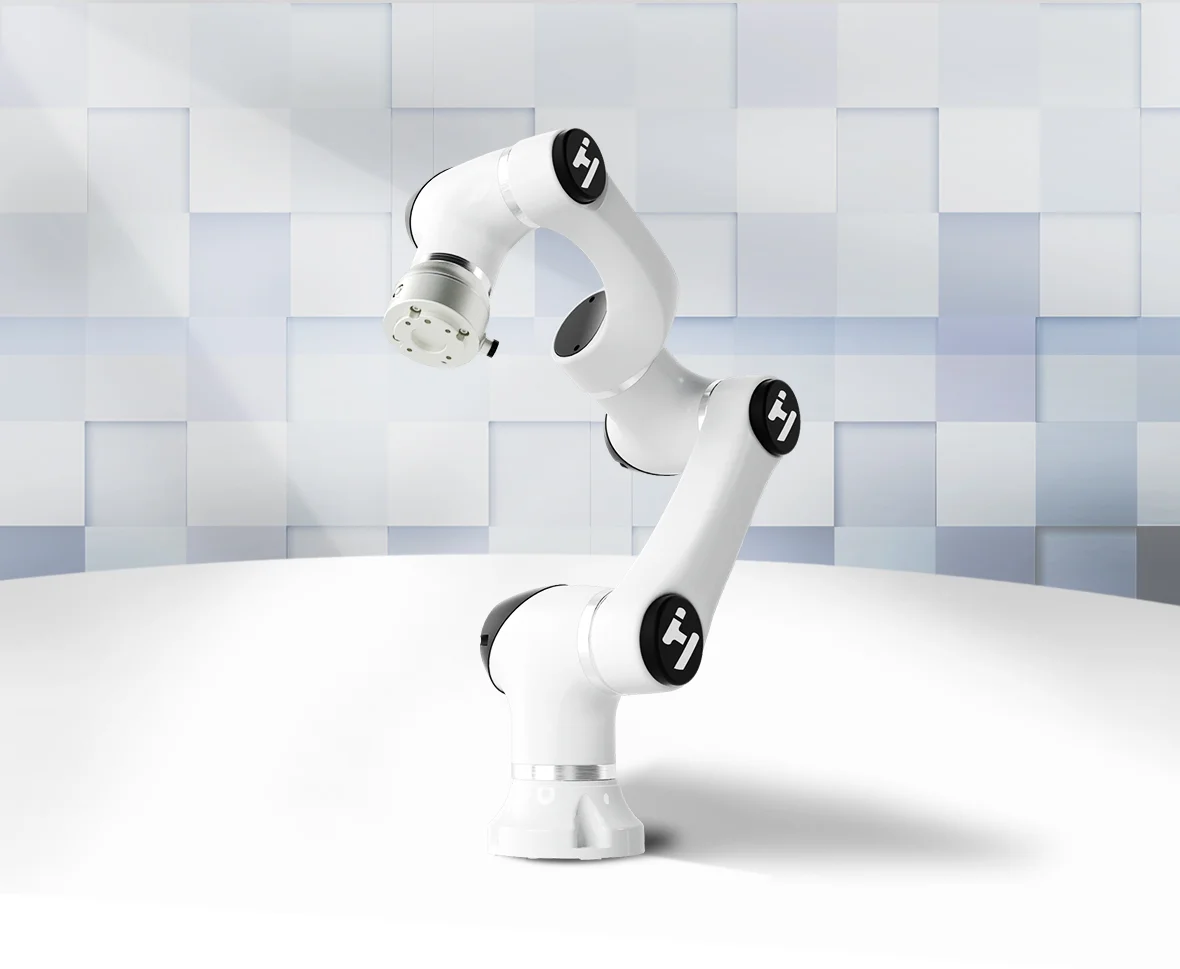

Elfin-PRO collaborative robot is developed on the basis of elfin collaborative robot.
Categories Collaborative Robot
Contact Us
It not only has all the advantages of the elfin collaborative robot such as a variety models, easy deployment, high precision, high flexibility, double-joint module design and modular design, but also has upgraded the product capability through the integration of cutting-edge AI technology, end force control integration, end vision integration. In addition, it adopts a new elegant and practical surface treatment process which is more stable and reliable. With all these advantages, Elfin PRO offers a better human-robot collaboration experience and could support wider application scenarios.

Advantage
Force Control Integration
  • Internal wiring with better anti-interference ability
  • Constant force control for perfect trajectory
  • Fast programming
  • Soft control with smooth free-drive teaching
  • Force exploration suitable to intelligent assembly which makes the small batches and flexible production of multiple varieties to be possible.
Camera System
  • Internal wiring enables the robot to have better anti-interference ability and supports fast deployment
  • AI application capabilities such as visual positioning,visual classification recognition, object detection and QR Code recognition
  • Han's Robot's self-developed hardware and software which is easy to operate and pretty interactive and scalable.
Higher Protection,
more applications
With IP66 protection, E PRO robot can  be adapted to different production environments which further extending the range of applications.
High Sensitivity,
much safer
E PRO robot realizes 1000Hz real-time control refresh frequency, which can achieve the industry-leading trajectory  precision control, stable and reliable  performance, faster response and safer human-machine collaboration.
Parameter
Model E03-Pro E05-Pro E05L-Pro E10-Pro E10L-Pro
Weight 18kg 25kg 26kg 43kg 45kg
Payload 3kg 5kg 3.5kg 10kg 8kg
Reach 590mm 800mm 950mm 1000mm 1300mm
Control Box Dimension 536*445*319mm
Joint Range ±360°
Joint Speed J1-J4 180°/S
J5-J6 200°/S
J1-J4 180°/S
J5-J6 200°/S
J1-J4 180°/S
J5-J6 200°/S
J1-J2 100°/S
J3-J4 150°/S
J5-J6 180°/S
J1-J2 100°/s
J3-J4 135°/s
J5-J6 180°/s
Maximum tool speed 2m/s
Repeatablity ±0.02mm ±0.02mm ±0.02mm ±0.03mm
Degree of freedom 6
End I/O Port Digital input3  Digital output3  analog input2
Control Box I/O Port Digital input16    Digital output16   analog input2    analog output2
I/O Source 24V 2A
Communication TCP/IP ModbusTCPProfinetOptional),Ethernet/IPOptional
Programming Graphical programming, remote call interface
IP Classification IP 66
Collaborative Operation 10 advanced security configuration functions
Main Material Aluminium alloy
Working Temperature 0-50
Power input 200-240V AC, 50-60Hz
Cable Cable to the control box:5m,Cable to the teach pendant:5m
