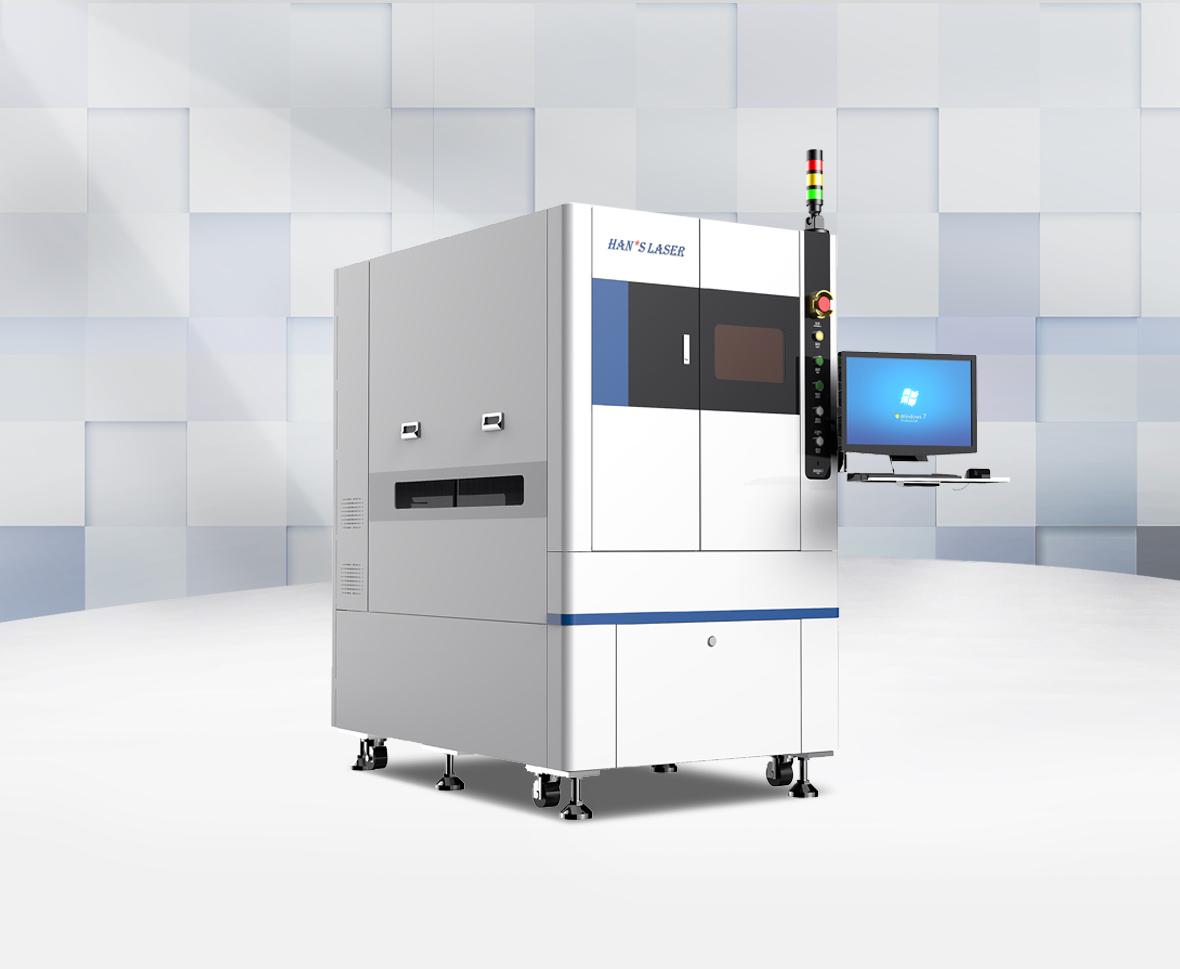

Online PCBA/FPCBA laser cutting machine HDZ-CL4030
Online PCBA/FPCBA laser cutting machine HDZ-CL4030

Online PCBA/FPCBA laser cutting machine HDZ-CL4030

Brief Description
Product Characteristics

1. With high-performance UV laser and self-developed control software.
2. With the high-precision motion platform system and high-precision galvanometer scanner.
3. With high-precision CCD positioning system.
Contact Us

Product Characteristics



1. With high-performance UV laser, the laser cutting heat-affected zone is small and it can more efficiently process the high-density and highly integrated PCBA product

2. The self-developed control software has functions of multiple jointed board cutting, automatic focusing and distortion compensation to achieve high-precision processing

3. With the high-precision motion platform system and high-precision galvanometer scanner, the cutting precision is high

4. The high-precision CCD positioning system can ensure the product’s processing precision

5. The machine can be integrated into the production lines and connected to various loading and unloading devices for cutting without manual operation.



Application Field



1. Suitable for precision cutting, half cutting, trenching of materials such as FPCBA, PCBA, RF, CVL and SIP.

2. Applicable for the product precise processing of auto industry and electronic industry.

Equipment parameters
Machine model HDZ-CL4030
Control system (imported from Germany) square head + control card, Windows 7
Final processing repeated positioning precision ±0.025mm
Max. processing area 300mm*300mm
Camera positioning system 5MP
Support file format Dxf, plt and so on
Overall dimension (for reference) 1160*1600*1600mm
Power supply 220V, 50Hz, 6kW
Laser
Wavelength 355nm
Power 10W/15W
Min. line width 0.03mm
Fθ lens Box50*50mm
Cooling mode Water cooling
2D platform
Stroke 400mm*300mm
Repeated positioning precision ±0.002mm
Sample

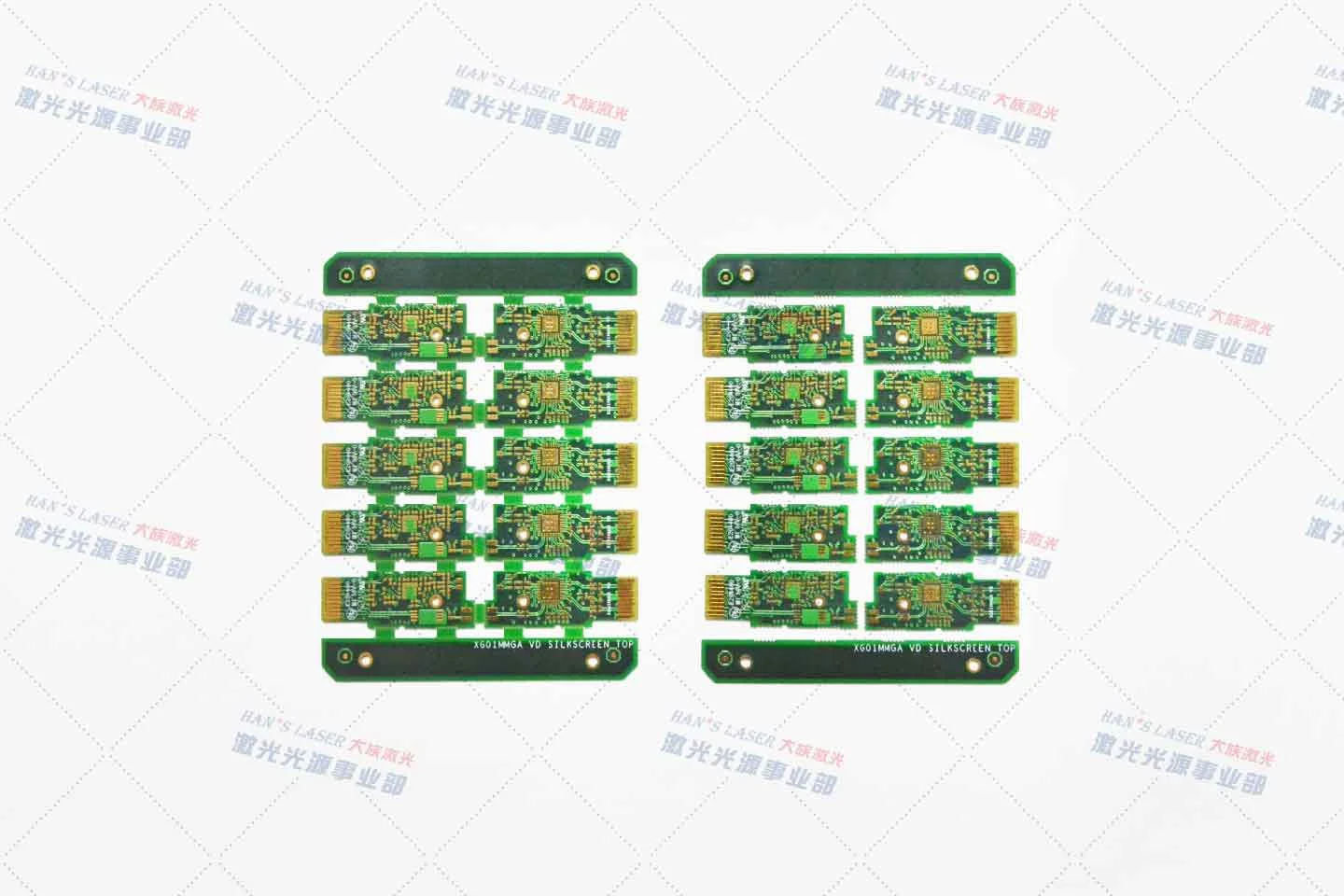

PCBA cutting
PCBA cutting

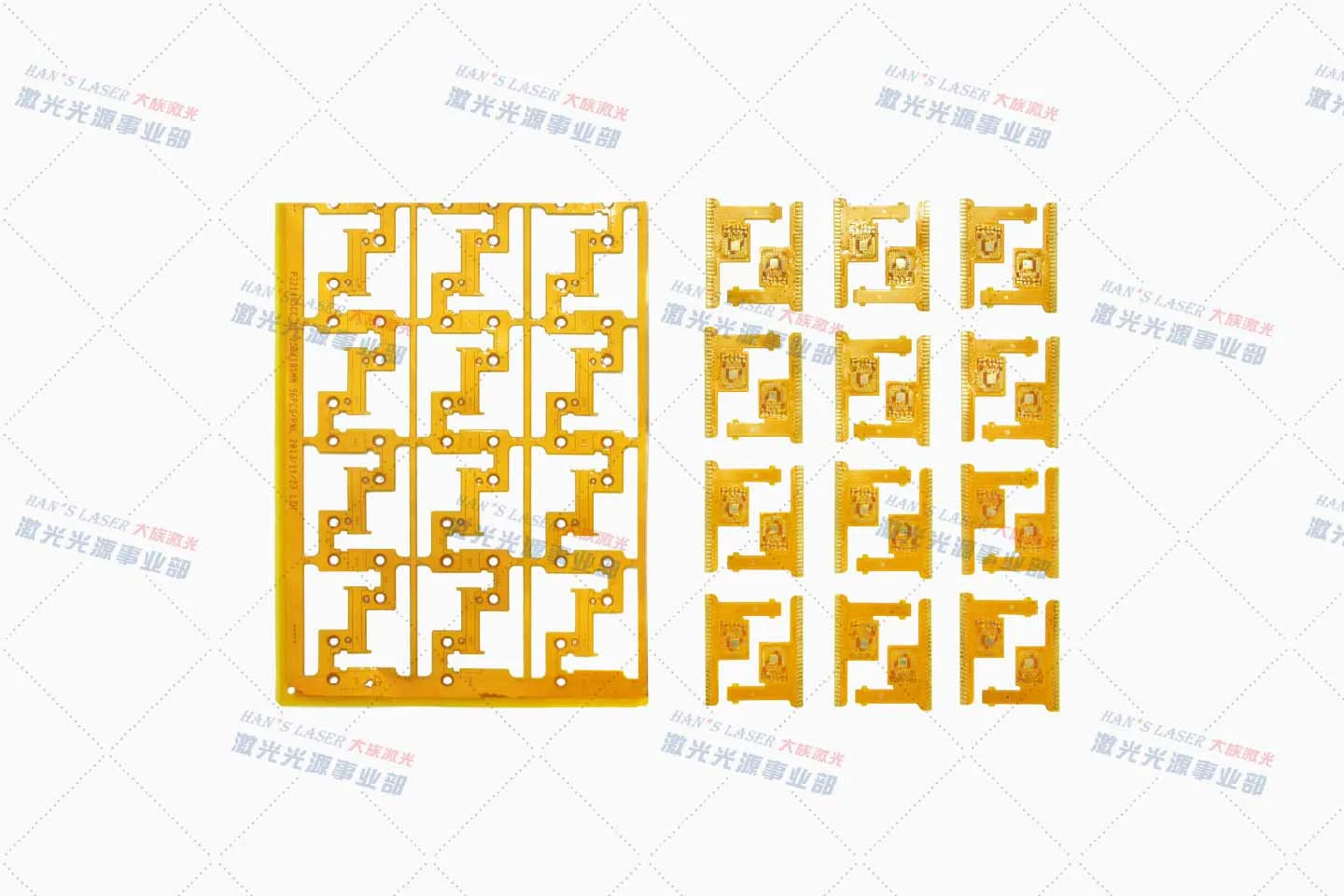

FPCBA cutting
FPCBA cutting

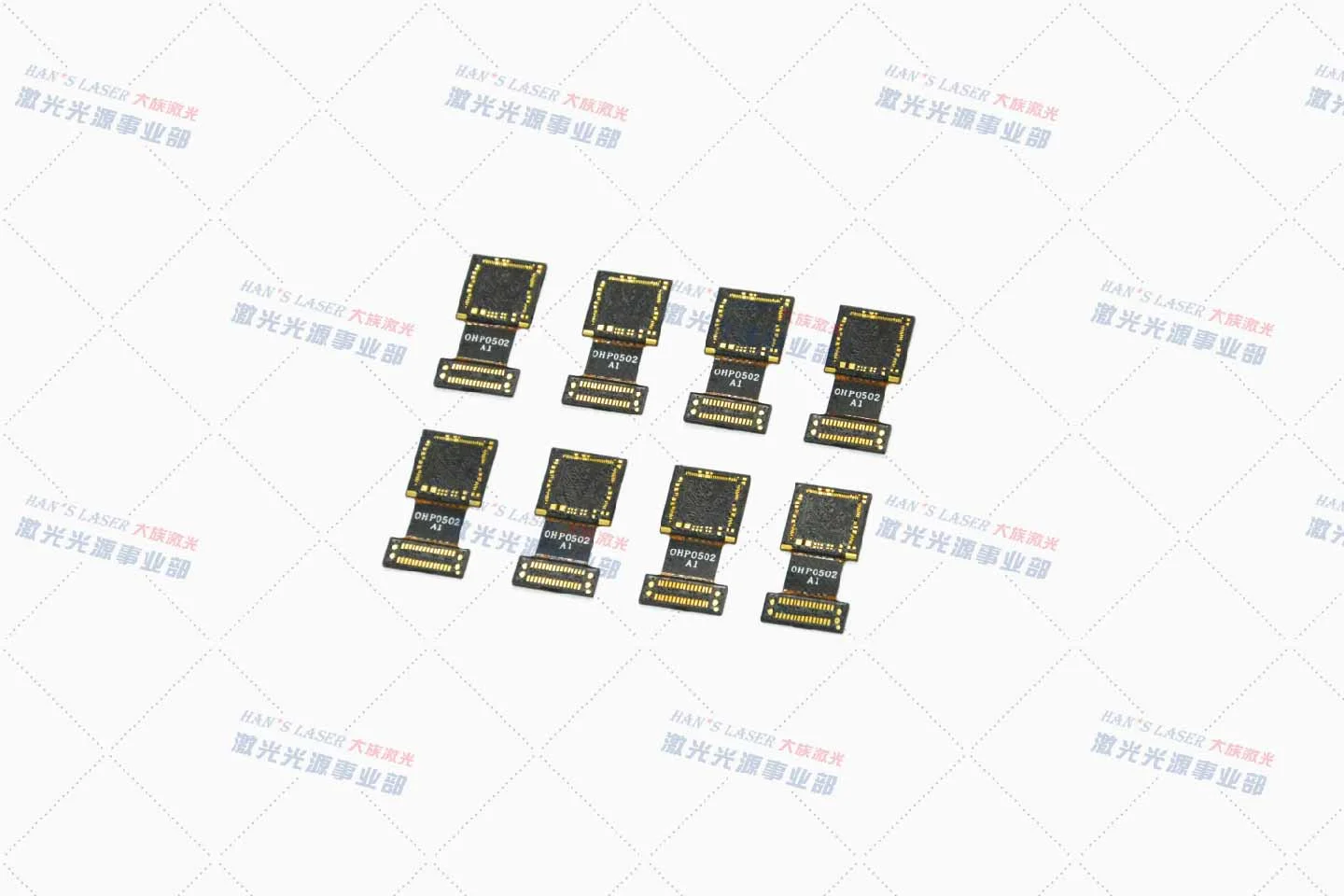

Camera PCBA cutting
Camera PCBA cutting
