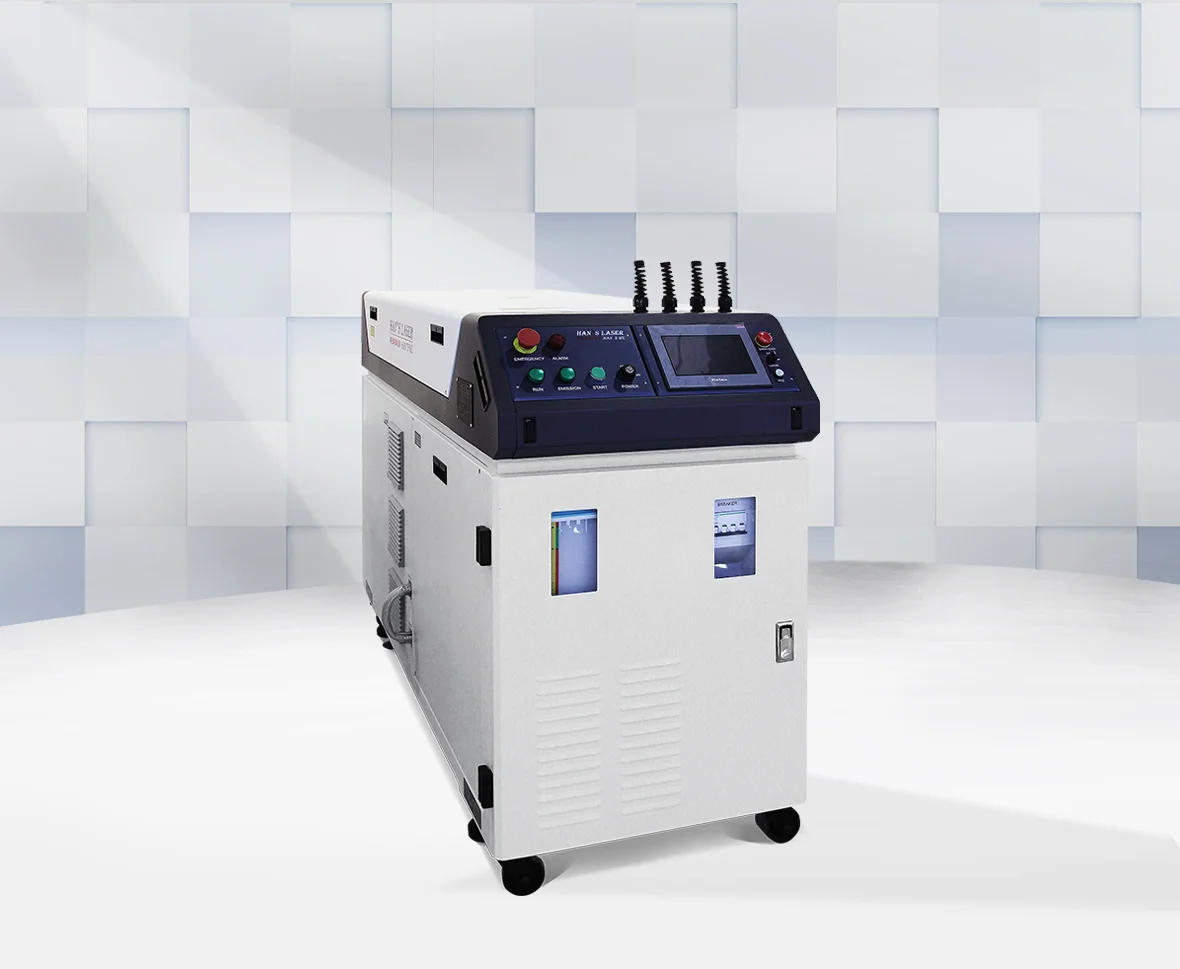

PB25CE
Brief Description
The laser power source first points the pulsed xenon lamp, and discharges the xenon lamp pulse through the laser power source to form a certain frequency, a pulse wave of a certain pulse width, and the light wave is radiated onto the Nd3+:YAG laser crysta
Categories
YAG welder
Contact Us
特点和应用：
Specification:
1. It has a high aspect ratio, small welding width, small heat affected zone, small deformation and fast welding speed;
2. The welding line is smooth and beautiful, no need to be treated after welding, or only simple processing might be ok;
3. High welding quality, no porosity, can reduce and optimize the impurities of the base metal, can be refined after the welding, the weld strength and toughness are at least equal to or even exceed the base metal;
4. It can be precisely controlled, the focus spot is small, it can be positioned with high precision, and easy to realize automation;
5. It can realize welding between certain dissimilar materials;
6. Spot welding, butt welding, stack sealing welding, etc. can be realized.
Application:
1. It can be applied to the connection and sealing of metal;
2. Suitable for spot welding, butt welding, lamination welding, sealing welding, etc. of various small devices, such as inductors, crystal oscillators, magnetic heads, micro motors, optical communication connectors and other components;
3. Now widely used in mobile communication, electronic components, glasses and watches, jewelry, precision instruments, medical equipment, craft gifts and other industries.
1. It has a high aspect ratio, small welding width, small heat affected zone, small deformation and fast welding speed;
2. The welding line is smooth and beautiful, no need to be treated after welding, or only simple processing might be ok;
3. High welding quality, no porosity, can reduce and optimize the impurities of the base metal, can be refined after the welding, the weld strength and toughness are at least equal to or even exceed the base metal;
4. It can be precisely controlled, the focus spot is small, it can be positioned with high precision, and easy to realize automation;
5. It can realize welding between certain dissimilar materials;
6. Spot welding, butt welding, stack sealing welding, etc. can be realized.
Application:
1. It can be applied to the connection and sealing of metal;
2. Suitable for spot welding, butt welding, lamination welding, sealing welding, etc. of various small devices, such as inductors, crystal oscillators, magnetic heads, micro motors, optical communication connectors and other components;
3. Now widely used in mobile communication, electronic components, glasses and watches, jewelry, precision instruments, medical equipment, craft gifts and other industries.
性能参数：
| Model | PB25CE |
| Laser type | YAG |
| Laser wavelength | 1064nm |
| Average output power | 25W |
| Peak laser power | 3kW |
| Maximum laser energy | 25J |
| Pulse width | ≤50ms |
| Pulse frequency | ≤100Hz |
| Waveform number | 50 groups |
| Fiber output number | 1 path standard configuration, 4 paths at most |
| Beam split mode | Energy splitting or time splitting |
| Fiber core diameter | 0.2mm |
| Closed-loop feedback mode | Laser power feedback |
| Aiming positioning mode | Red light guide (CCD optional) |
| Cooling mode | Built-in air cooling |
| Main machine power consumption | 2.8kW |
| Power supply | 220V±10%/50Hz/12A |
| Main machine weight | 180kg |
| Machine dimension (L*W*H) | 1100x440x850mm |
Sample

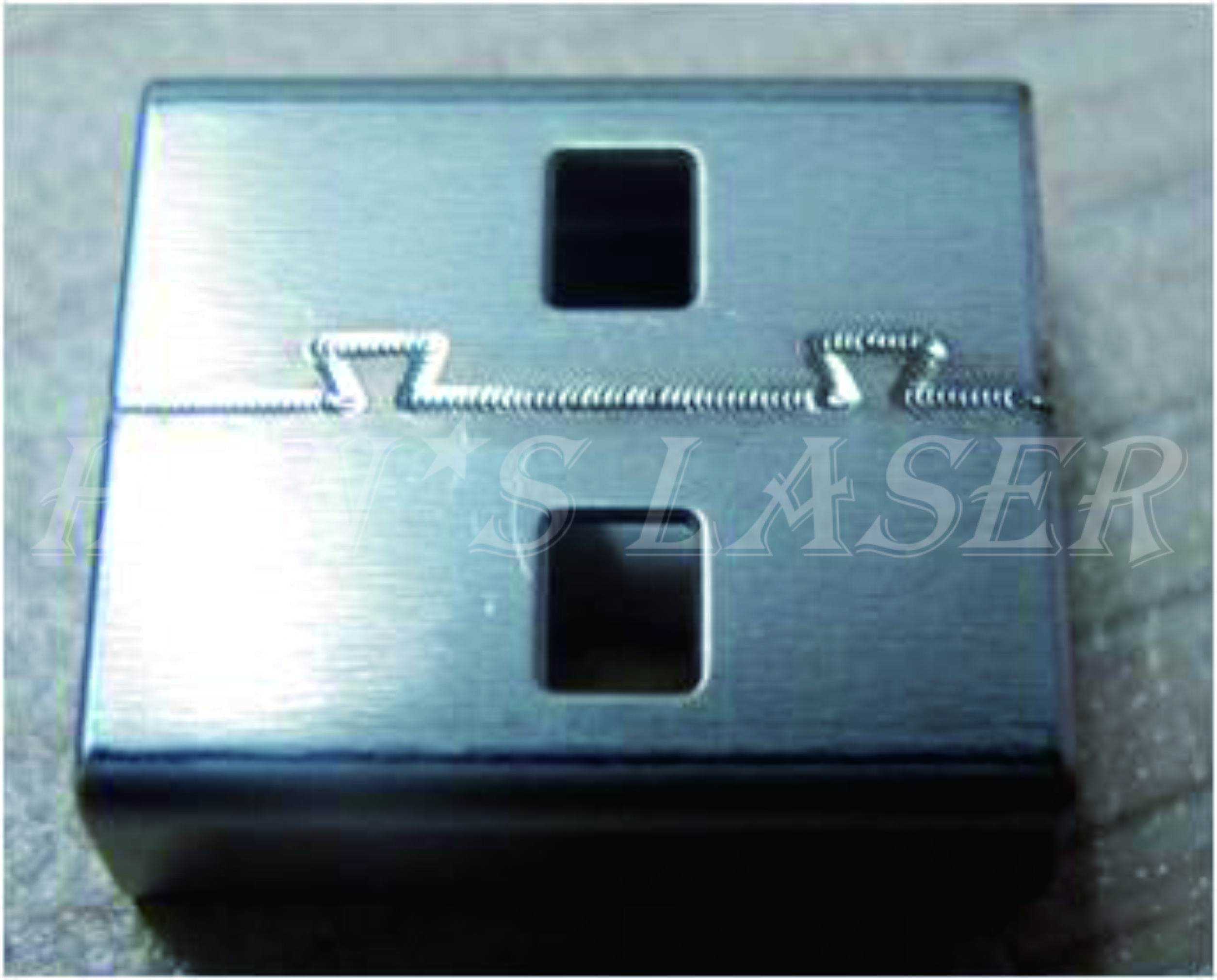

Welding sample

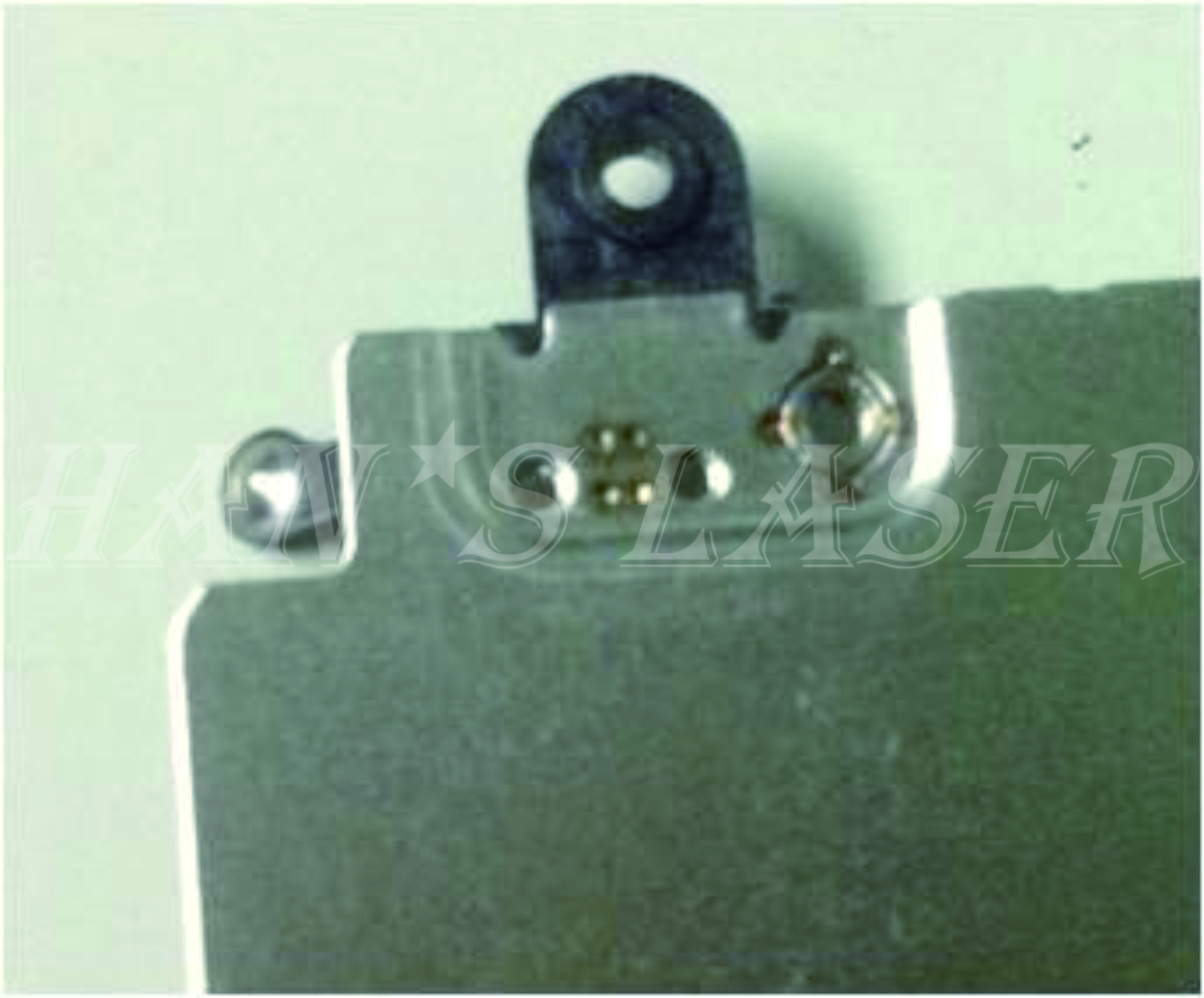

Welding sample

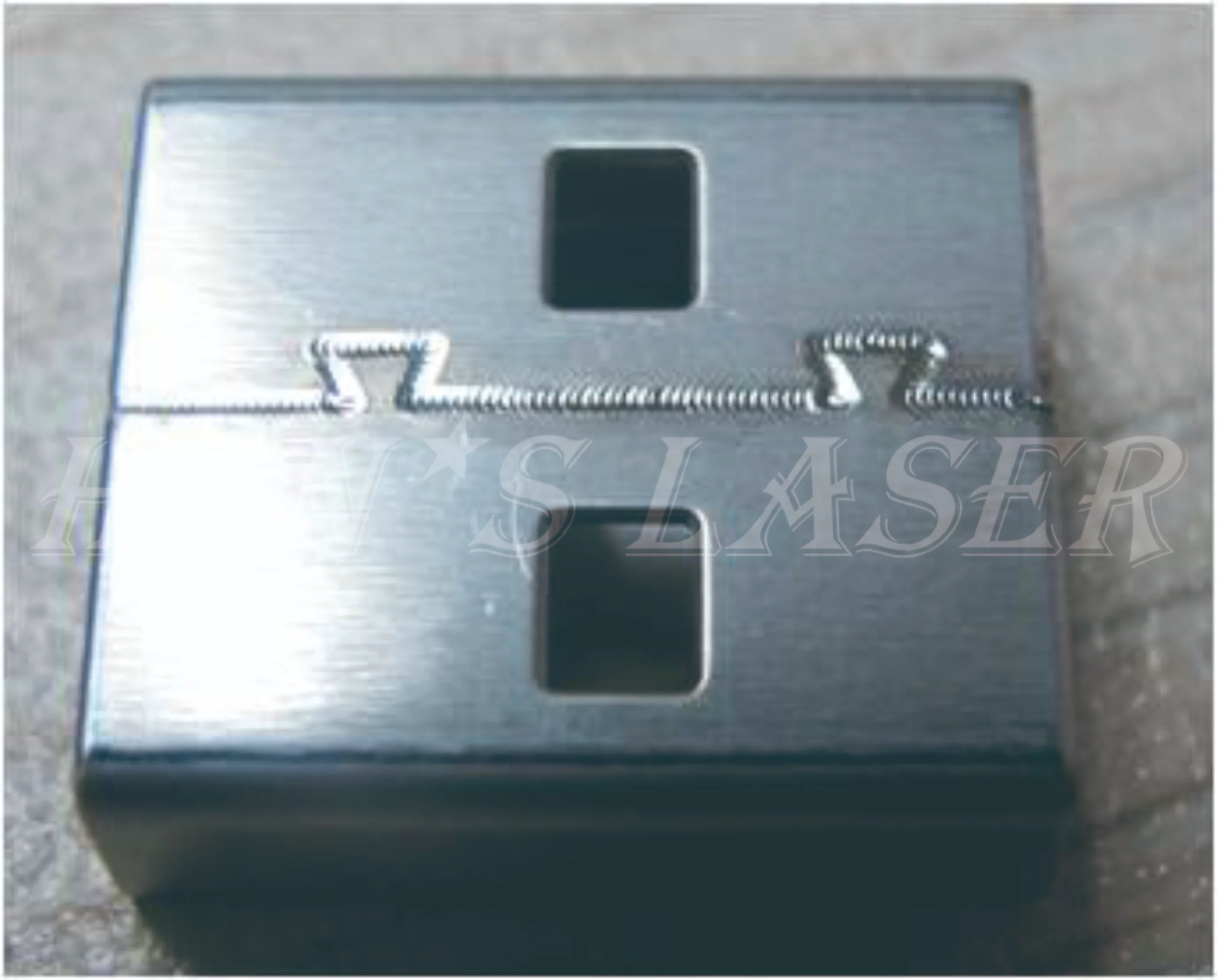

Welding sample

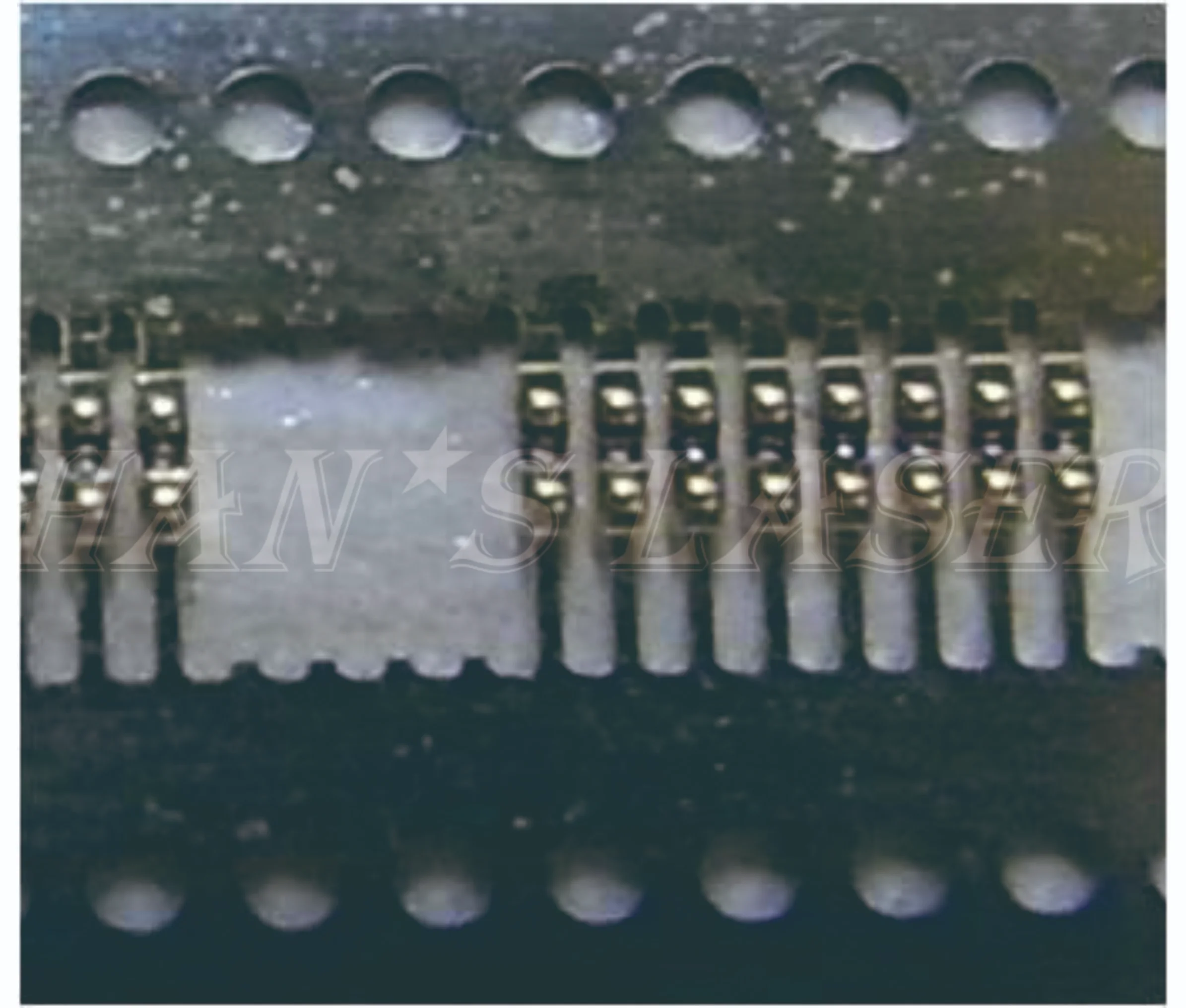

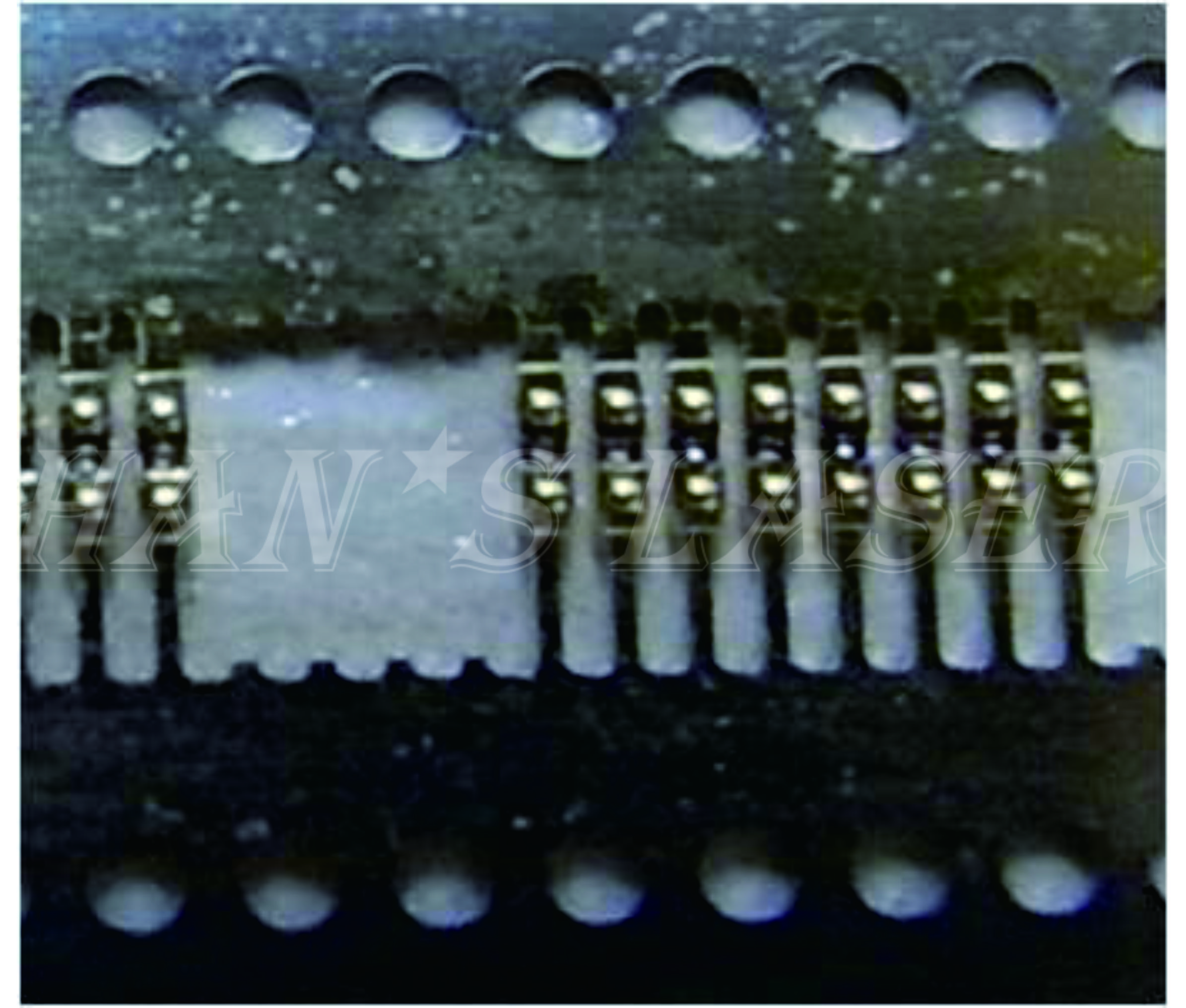

Welding sample
