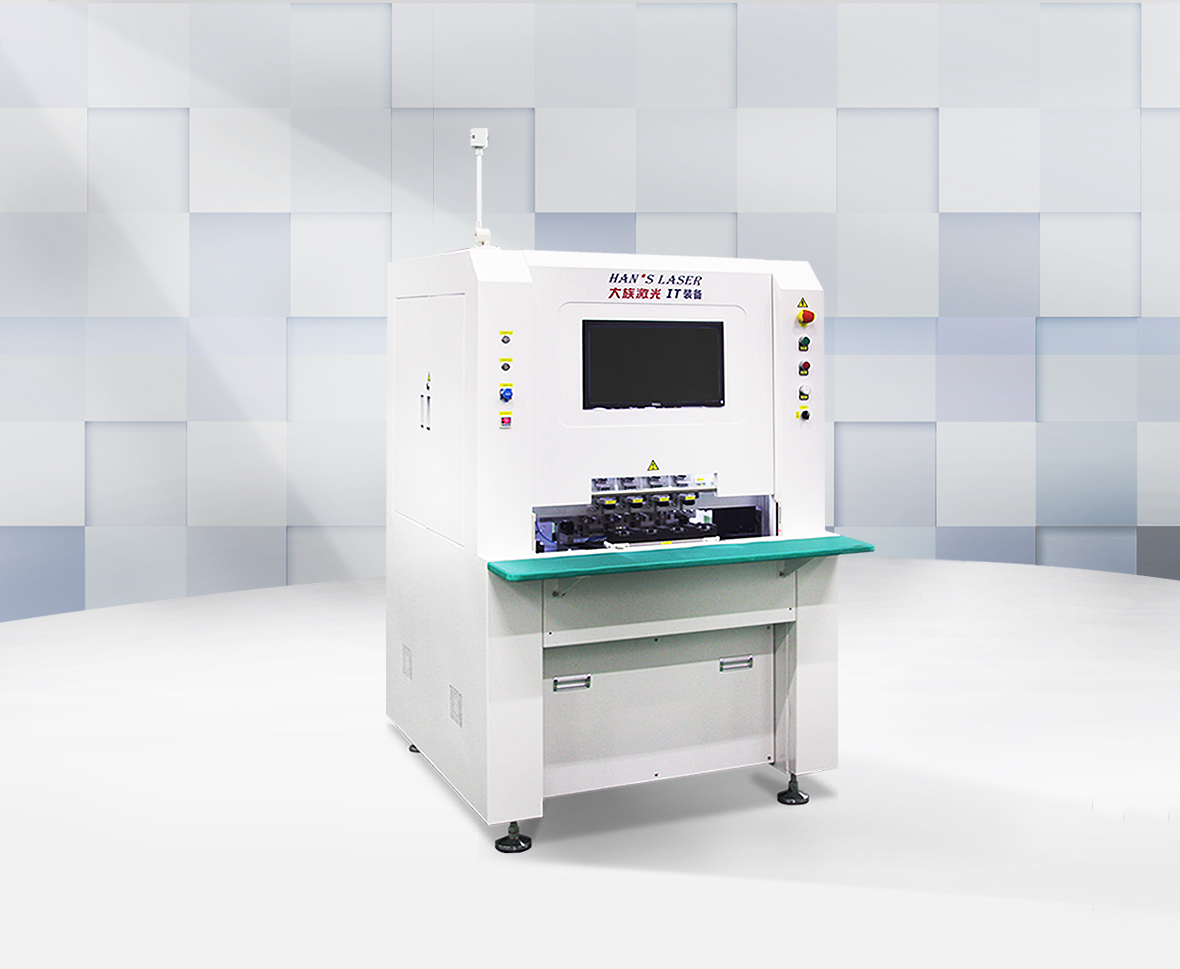

Han's Laser High precision testing machine
Release time：2024.12.06
Views：1025The Han’s Laser high-precision testing machine is used for high-performance electrical testing of IC packaging substrates such as FC-CSP, PBGA, MEMS, etc. It is suitable for high-end smartphones, tablets, and other applications such as HDI, arbitrary layer HDI, class carrier board SLP, and optical modules.
There are significant differences in testing density and size among different HDI products, and Han’s Laser CNC has introduced different testing solutions to cope with them, including universal testing machines, high-precision testing machines, and large-sized four wire testing machines, providing two wire and four wire testing solutions that meet the comprehensive needs of cost, efficiency, and quality.
This equipment adopts a four turntable workstation to maximize the efficiency of step testing; CCD positioning compensation technology combined with fixture fine-tuning system can achieve a maximum repeatability accuracy of ± 5 μ m in equipment testing, and can be equipped with fixtures with a tiny needle diameter of 40 μ m to achieve seamless testing of small feature sizes; Equipped with high-speed and high-precision four wires testing, as well as Spark and other functions, to ensure the reliability of the electrical performance of the tested products; Strong compatibility with fixtures, compatible with READ M6 fixtures and composite fixtures; Rich optional functions, such as laser marking and QR code reading.
The testing machines under Han’s Laser CNC are the world's popular electrical performance testing equipment brand, with a customer base covering the globe, accounting for nearly 70% of the NTI Global Top 100 Enterprises Ranking (2019), with cumulative sales exceeding 10,000 units.
If you are interested, please contact us via +86-400-666-4000 or leave your info as Country, Company, and Requirements to our official email address: international@hanslaser.com.
