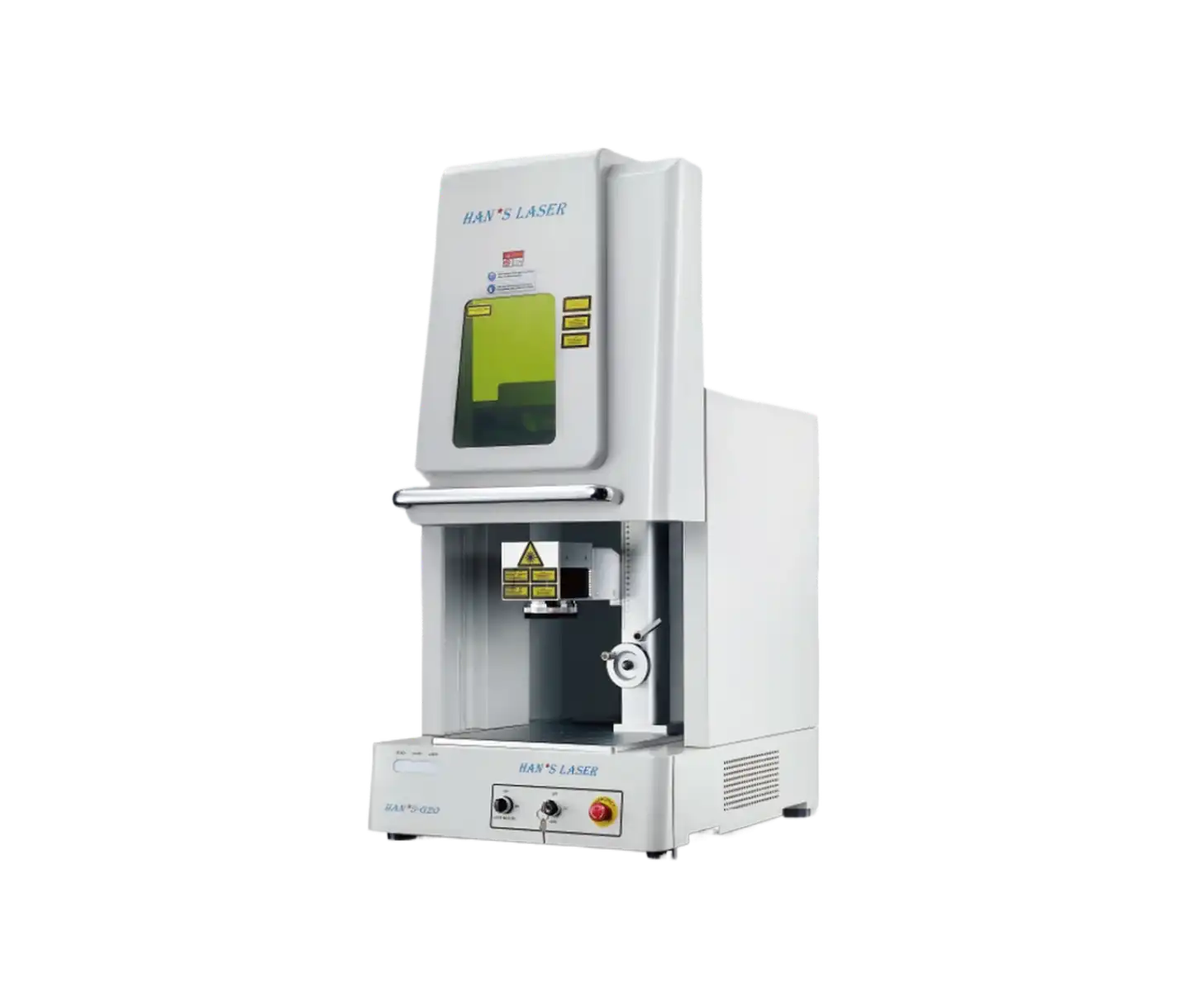

Desktop Fiber Laser Marking Machine

G20

Machine Features

1.Small and compact size with common air-cooling system

2.Fiber output, flexible application, and easy construction of a 3D processing system

3.Backward reflecting isolator installed to block the laser reflected by work piece, preventing reflected light from reentering and damaging the laser oscillator

4.High beam quality and high reliability

Applications

Marking for various metal materials and part of non-metal materials. Suitable for processes requiring high marking depth, smoothness and accuracy.

Technical Data Sheet

Model	G20
Laser Output Power	20W
Focus Lens	F160 (standard) F254(optional)
Lens Type	F160 (standard)	F254(optional)
Marking Area	3.9''×3.9''	6.3''×6.3''
Marking Speed	300 characters/sec, height=0.039''	300 characters/sec, height=0.039''
Min. Character Size	0.01''	0.02''
Min. Line Width	50μm	90μm
Wave Length	1064nm
Beam Quality M2	＜1.6
Power Stability(8h)	＜±1% rms
Pulse Repetition Frequency	1.6kHz-1000kHz
Marking Depth	≤0.016''
Marking Speed	≤22.97'/s
Repetition Accuracy	±0.0001''
Power Consumption	500W
Indication Light	Red light wavelength=650nm
Cooling Mode	Air cooling
Running Temperature	15℃-35℃
Electrical Source Requirement	110-220V/ 50Hz (60Hz) / 4A
Dimensions (LWH)	1.8'×2.6'×2.5'
Weight	121 KG

Laser Marking Effects

Marking sample
