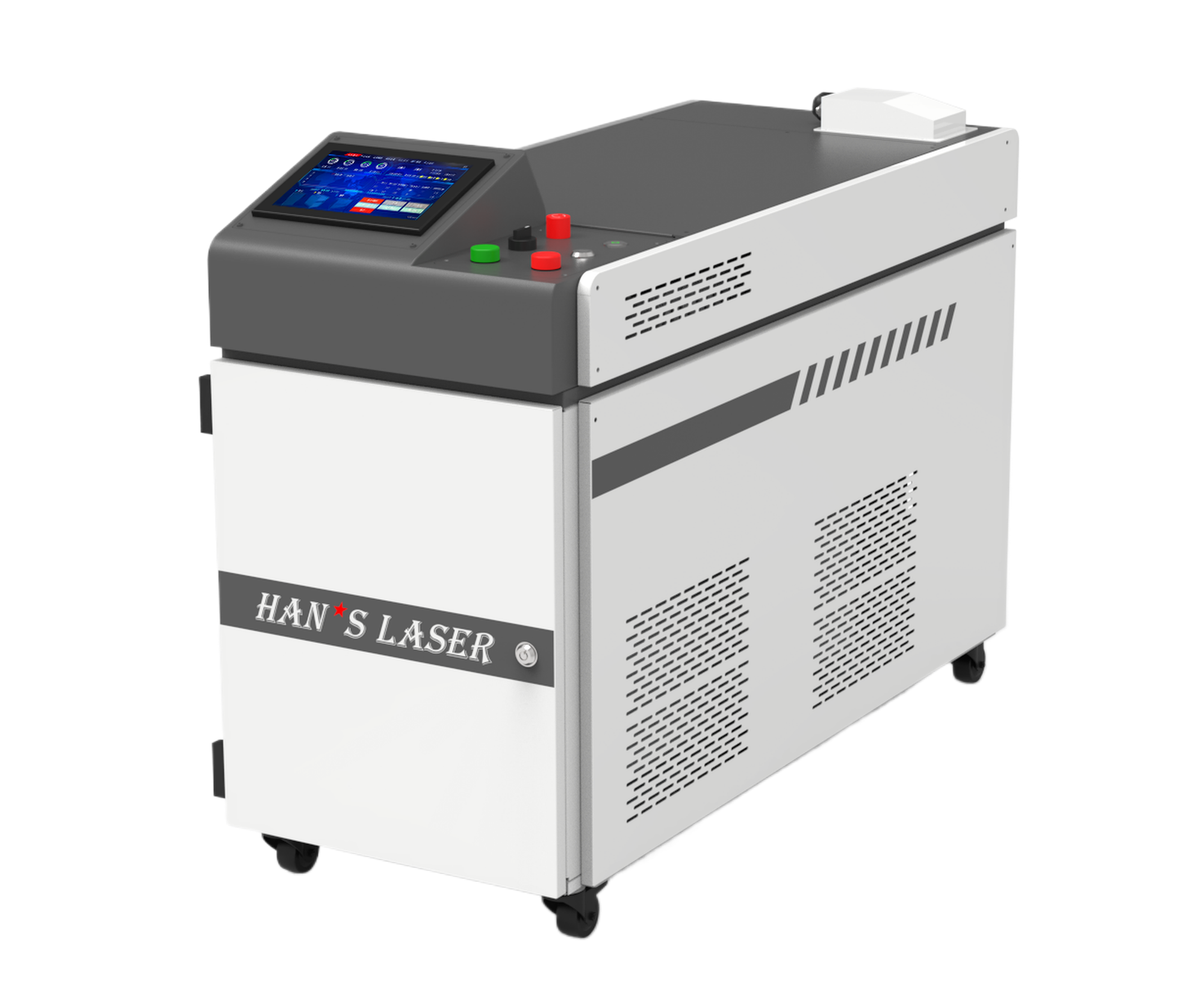

Han’s Star M Series – Dual Thermostatic Integrated QCW Laser

Machine Features

1. High electro-optical conversion efficiency, all-fiber output, stable and reliable, maintenance-free

2. Pulse and CW dual mode, editable online waveform

3. Uniform spot energy, consistent welding spots

4. Integrated water cooling design, high power output

5. Built-in intelligent control screen, precise laser energy control


Technical Data Sheet

Machine model

HW-QCW500/3000

HW-QCW750/4500

HW-QCW1000/6000

Operation   Mode

Pulse / CW / Modulation

Pulse / CW / Modulation

Pulse / CW / Modulation

Average   Power

600W（CW Max.）

750W（CW Max.）

1000W（CW Max.）

Peak   Power

3000W（MAX）

4500W（MAX）

6000W（MAX）

Wavelength

1080±10nm

1080±10nm

1080±10nm

Energy

30J（MAX）

45J（MAX）

90J（MAX）

Laser Frequency

5kHz（MAX）

5kHz（MAX）

5kHz（MAX）

Pulse   Time

0.05~50ms

0.05~50ms

0.05~50ms

Wave   Number

31 groups × 16 segments

31 groups × 16 segments

31 groups × 16 segments

  Output   fiber core diameter

200μm

200μm

200μm

  Beam   Delivery

QBH

QBH

QBH

 Cable   Length

10m

10m

10m

 Cable   Number

1 channel

1 channel

1 channel

Guide   Beam

Yes

Yes

Yes

Outline   Dimensions

452×1100×800mm

452×1100×800mm

452×1100×800mm
