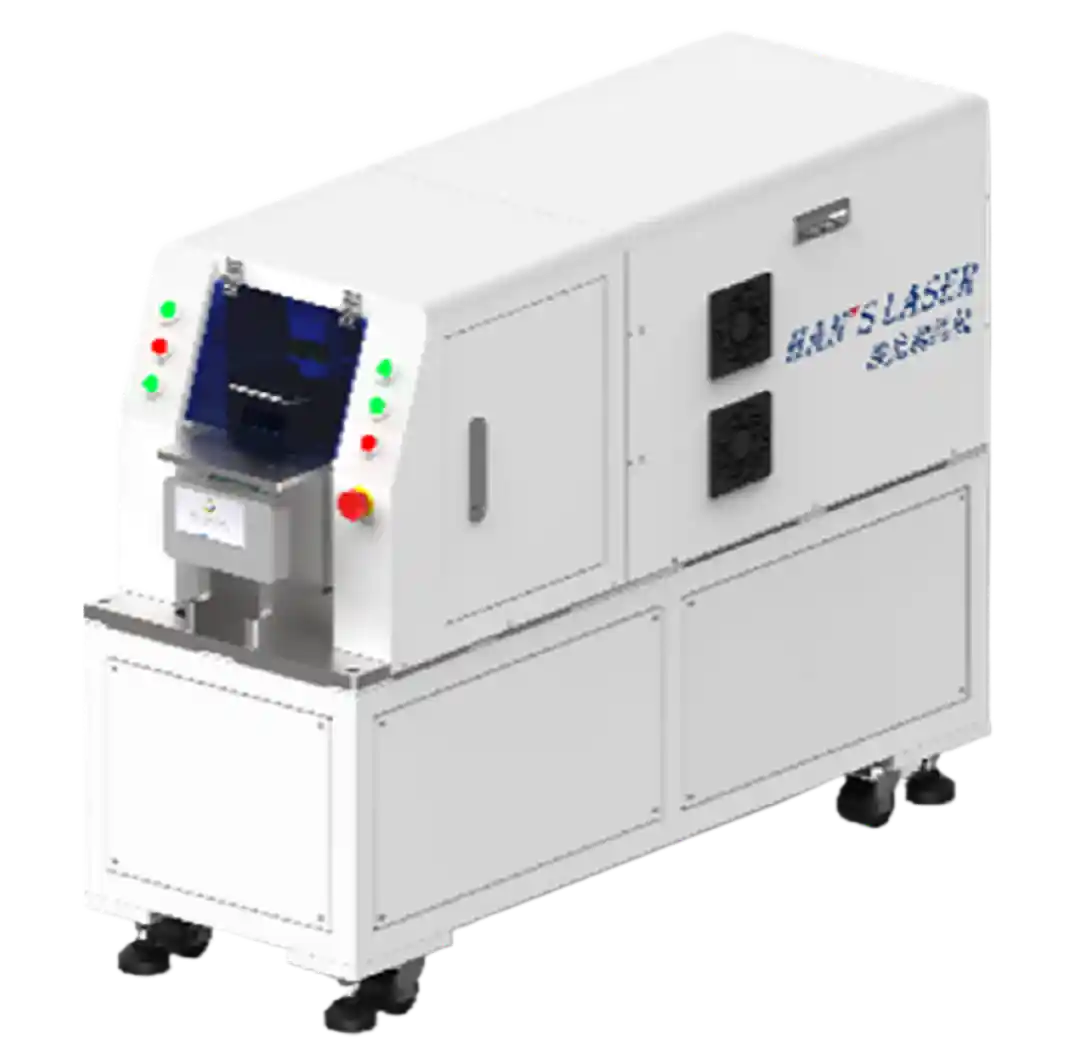

Rotary laser wire stripping machine

SP-CO2/YLP/UV-XZ Series

Machine Features

1.Optional Configurations (Can be customized)

2. Selectable fiber laser power configurations: CO2 or UV models
3. Applicable for wire diameters from 6-20mm. Customizable models for specific wire gauges.
4. Customizable equipment dimensions to match configuration requirements.
5. Split-type design (SP-CO2/YLP/UV-XZ) for compact size, ideal for integration into automated production lines.
6. Equipped with a dust extraction fan (air purifier is optional)

Applications

Circumferential cutting of aluminum foil layers. After cutting, the foil can be easily torn along the incision without damaging internal wires.

Technical Specification

Machine Model	SP- CO2/YLP/UV-XZ (Integrated)	SP- CO2/YLP/UV-XZ (Split-type)
Laser Power(Optional)	CO2:30/55 Fiber:20/30/50 UV:5/10	CO2:30/55 Fiber:20/30/50 UV:5/10
Laser Wavelength	CO2:10.6/9.3um Fiber:1064nm UV:355nm	CO2:10.6/9.3um Fiber:1064nm UV:355nm
Compatible Wire Diameter	6-20（can be customized）	6-20（can be customized）
Rotation Angle(°)	±360	±360
Rotation Speed(°/S)	≤180	≤180
Compressed Air(Mpa)	0.3~0.5	0.3~0.5
External Dimensions(LmmWmmHmm)	12504501000（can be customized）	760260580（can be customized）
Net Weight(Kg)	300	60
