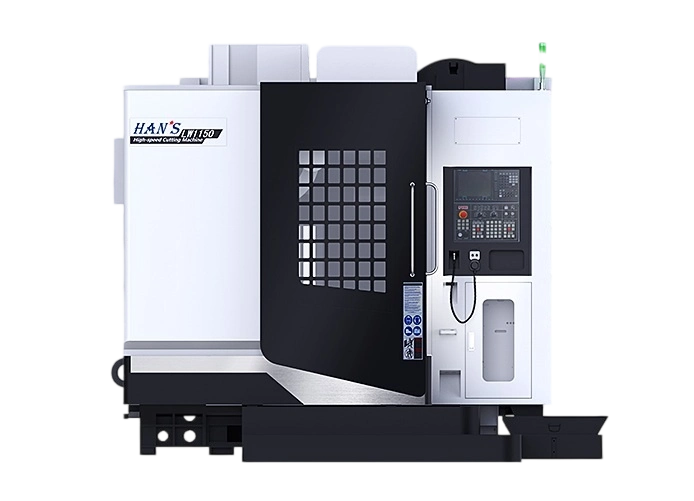

Vertical Machining Center

Working Range

X/Y/Z Axis Travel

mm

800/600/600

800/600/600

800/600/600

Distance from Spindle Nose to Worktable (Standard Type)）

mm

120-720

120-720

120-720

Worktable

Worktable Clamping Area

mm

1000*550

1000*550

1000*550

Max. Load Capacity

kg

500

500

500

T-slot Size

mm

5-18*90

5-18*90

5-18*90

Main Motor

Maximum Speed

rpm

12000

12000

12000

Maximum Torque

Nm

118

135

118

Rated Torque

Nm

52.5

57

52.5

Maximum Power

Kw

18.5

21.2

18.5

Rated Power

Kw

11

9

11

Tool Changer

Tool Type

BBT40

BBT40

BBT40

Tool Magazine Capacity （*optional configuration）

Pockets

24

24

24

Tool Style

Arm-type Tool Magazine

Arm-type Tool Magazine

Arm-type Tool Magazine

Maximum Tool Diameter

mm

80/160

80/160

80/160

Maximum Tool Length

mm

300

300

300

Maximum Tool Weight

Kg

8

8

8

Feed System

Cutting Speed (X/Y/Z)

m/min

30/30/30

30/30/30

30/30/30

Rapid Traverse Speed (X/Y/Z)

m/min

48/48/48

48/48/48

48/48/48

Positioning Accuracy (X/Y/Z)

mm

0.008

0.008

0.008

Repositioning Speed  (X/Y/Z)

mm

0.005

0.005

0.005

Mechanical Parameters

Machine Dimensions (with Tank)

mm

2400*3220*2860

2400*3220*2860

2400*3220*2860

Machine Weight

kg

5200

5200

5200

Siemens 828D-280/M80 Control System

Mitsubishi M80 System/FANUC System/SYNTEC System

Arm-type Tool Changer

4th Axis

Full Enclosure Protection Cover

High-speed Spindle/Large-capacity Tool Magazine

Automatic Central Lubrication System

Through Spindle Coolant (TSC) System

Heat Exchanger

Tool Presetter

Tool Kit

Renishaw Probe

Foundation Screw Blocks

Tool Breakage Detection System
