1. Various metal materials, part of non-metal materials.

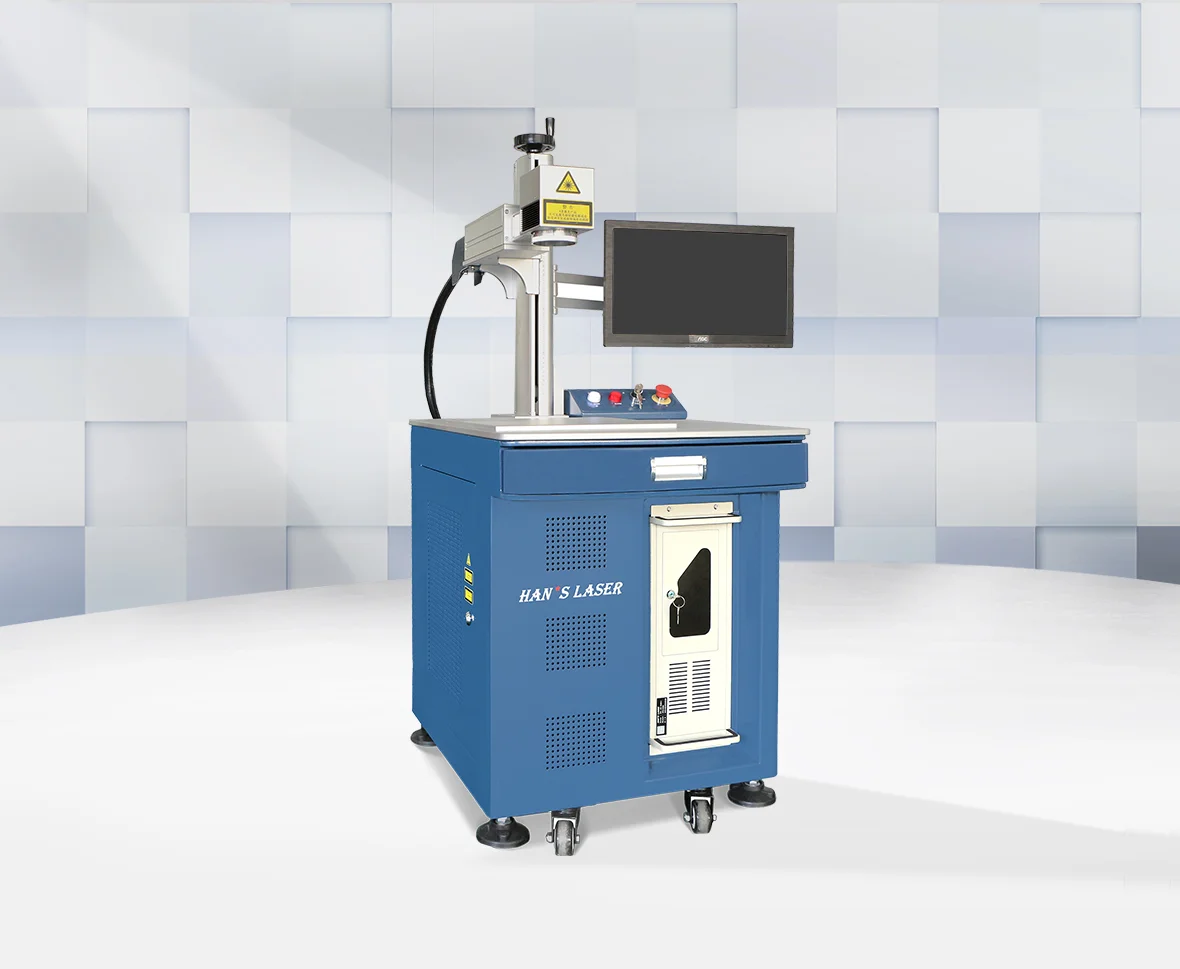

2. The fiber optic laser oscillator marker has advantage of high beam quality and high reliability. It is suitable for processing fields that need high marking depth, smoothness and accuracy.
Features：
1. Laser marking machine on promotion, high cost performance.
2. Fiber lasergenerator ,low consumption, easy for maintain.
3. Compact design, 760mm×610mm×1494mm
4. Optional lens for different marking area
2. Fiber lasergenerator ,low consumption, easy for maintain.
3. Compact design, 760mm×610mm×1494mm
4. Optional lens for different marking area
Specification:
| 1 | Laser Wavelength | 1064nm |
| 2 | Laser Power | 20W |
| 3 | Repeating Frequency | 10-200KHz |
| 4 | Marking Field | 100mm×100mm(F160) |
| 5 | Marking Line Width | ≥0.05mm |
| 6 | Marking Window Upgrade | 160mm x 160mm (F254 Lens) |
| 290mm x 290mm (F420 Lens) | ||
| 7 | Min. Character Size | 0.3mm |
| 8 | Marking Speed | ≤7000mm/s |
| 9 | Repeat Accuracy | ±0.003mm |
| 10 | Cooling system | Air cooling |
| 11 | System Weight | Around 155KG |
| 12 | Power Supply | 220V/Single Phase/50Hz/60Hz/5A |
| 13 | Power Consumption of Complete Machine | 500W |
| 14 | Overall Dimension | 760mm×610mm×1494mm |
Sample

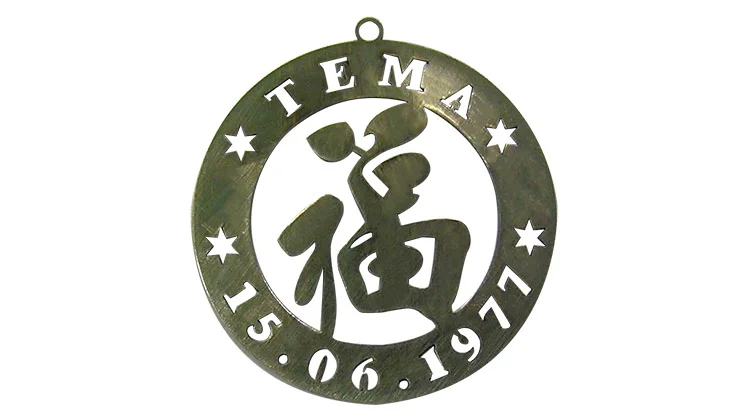

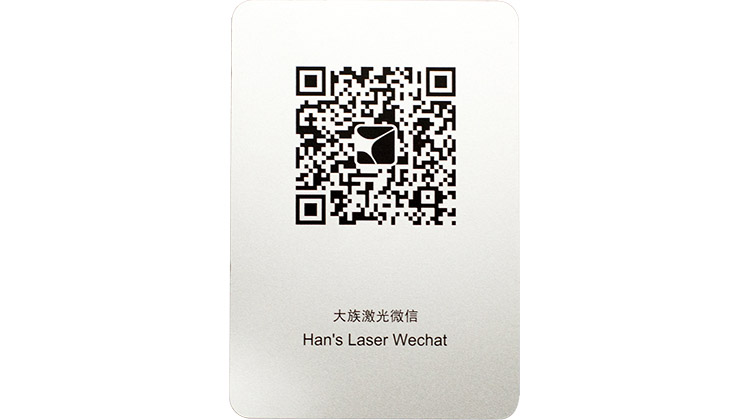

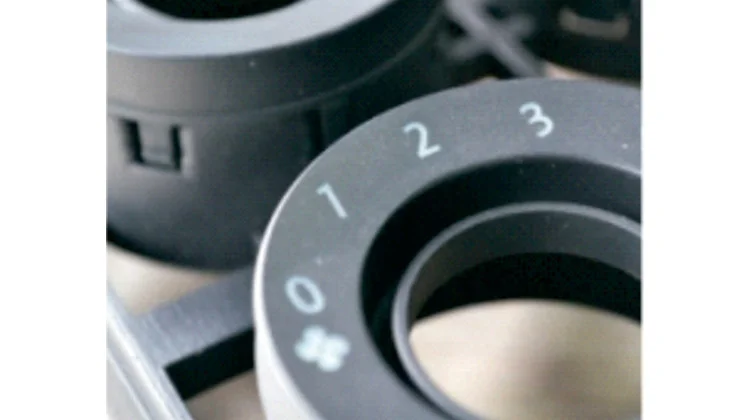

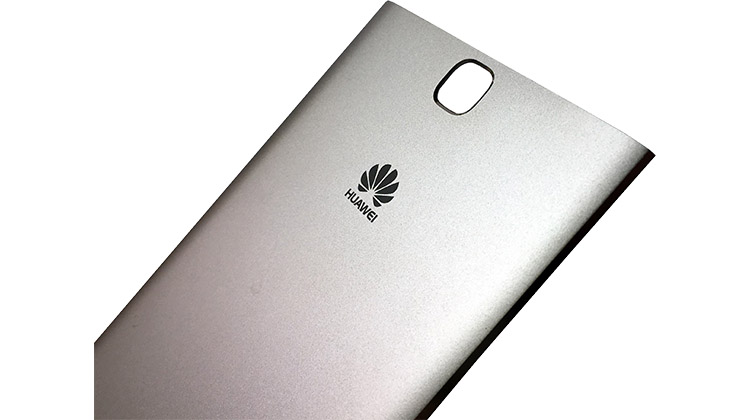

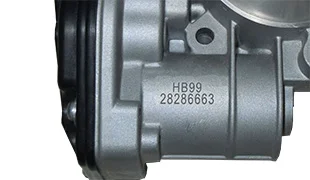

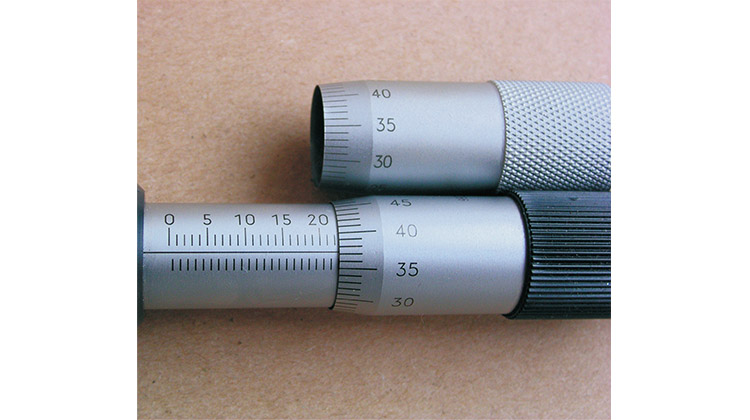

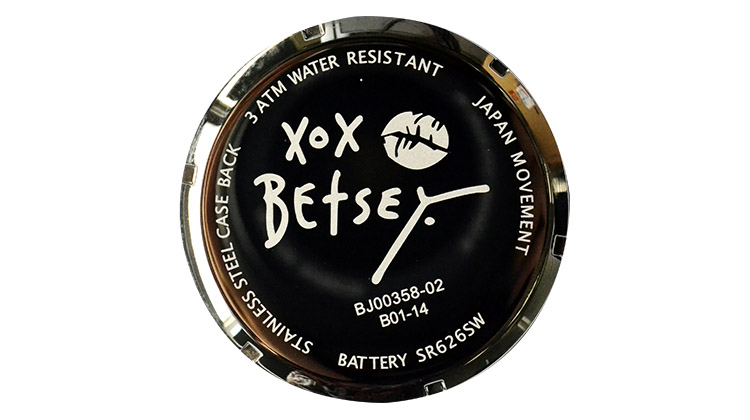

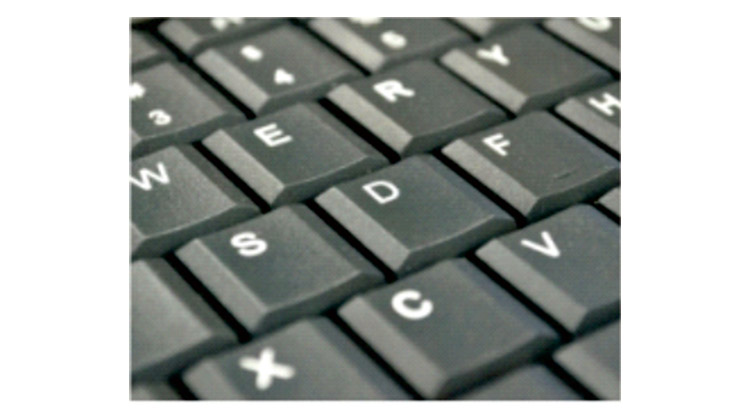

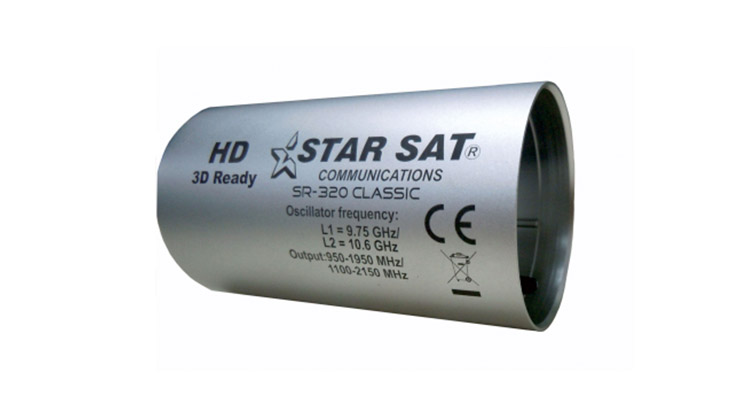

Marking sample
Marking sample
Marking sample
Marking sample
Marking sample
Marking sample
Marking sample
Marking sample
Marking sample
Marking sample
Marking sample
Marking sample
