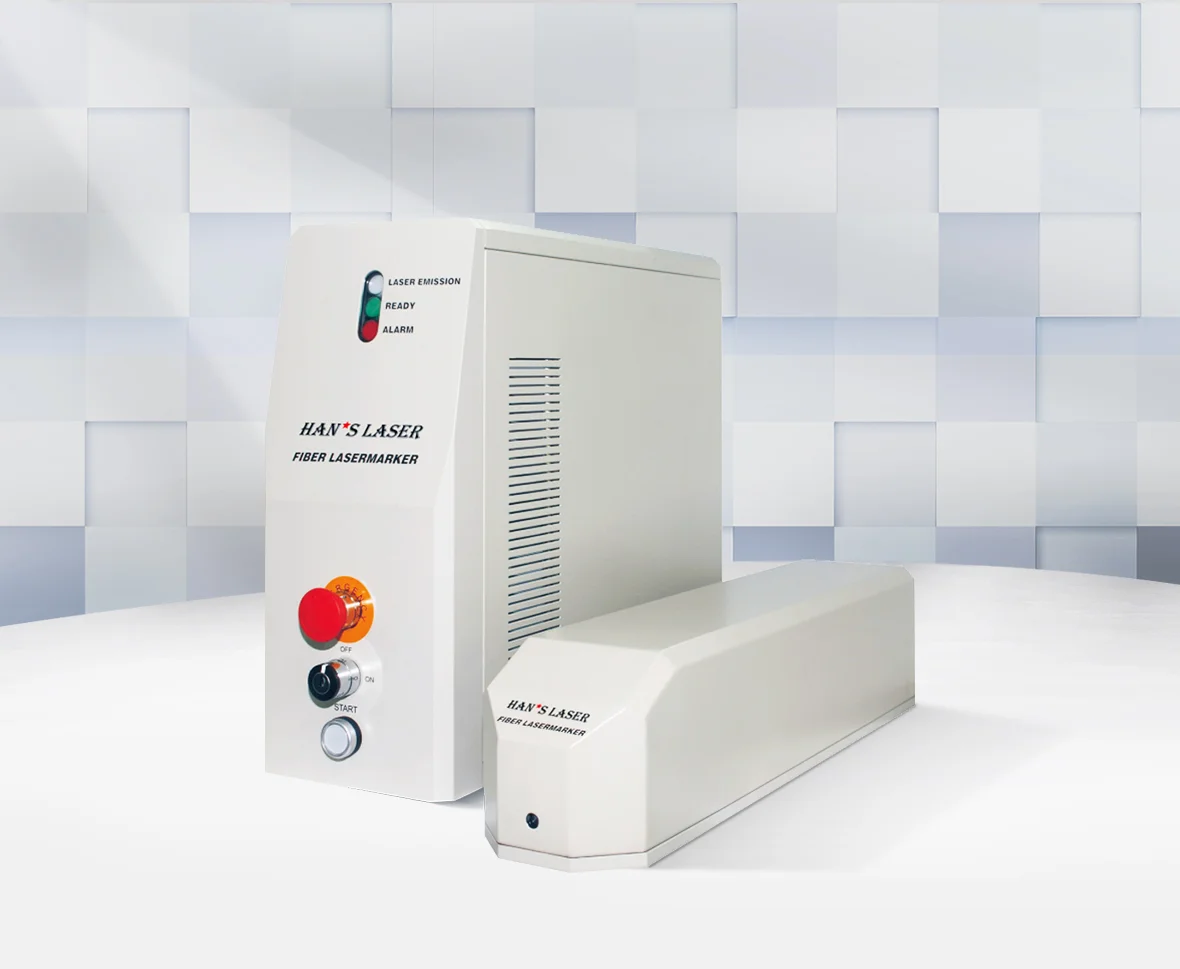

MARS-10J/20J

Brief Description

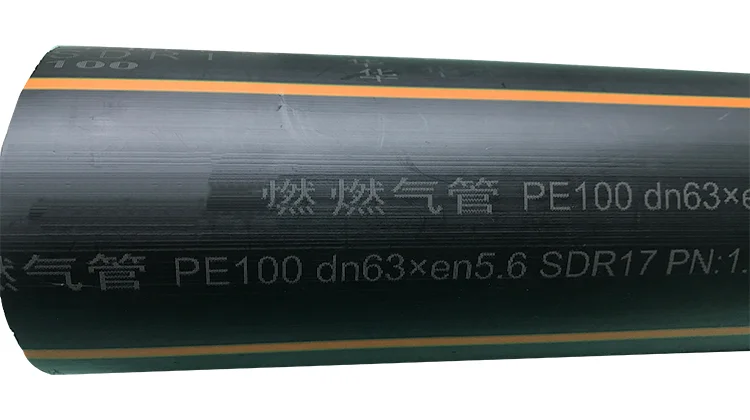

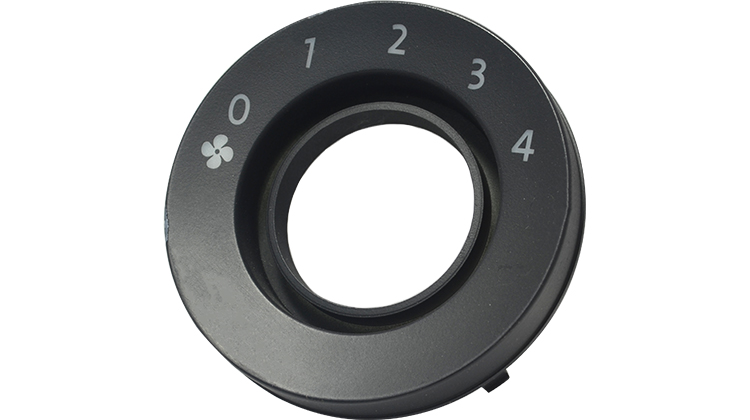

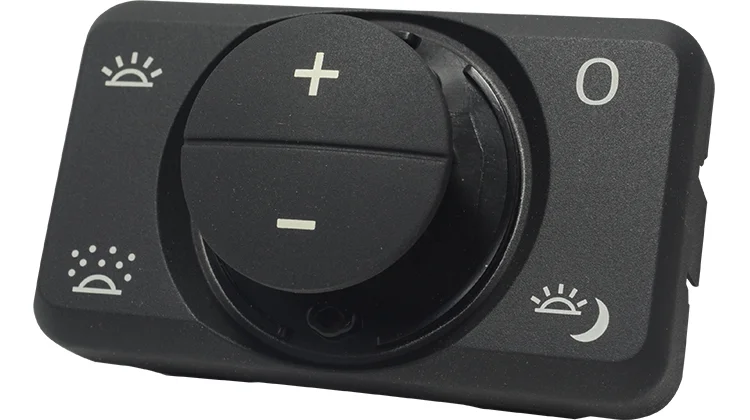

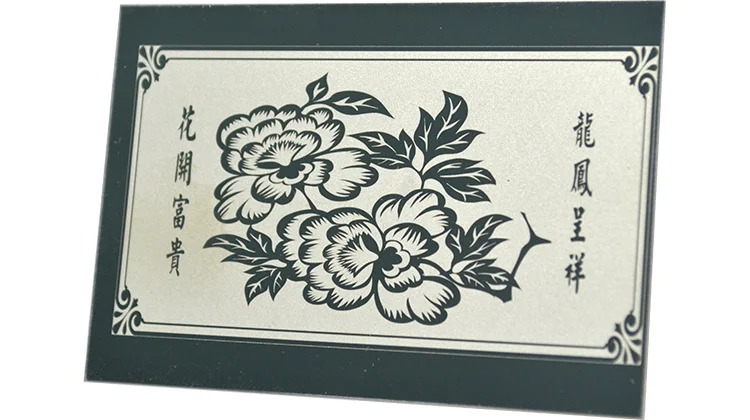

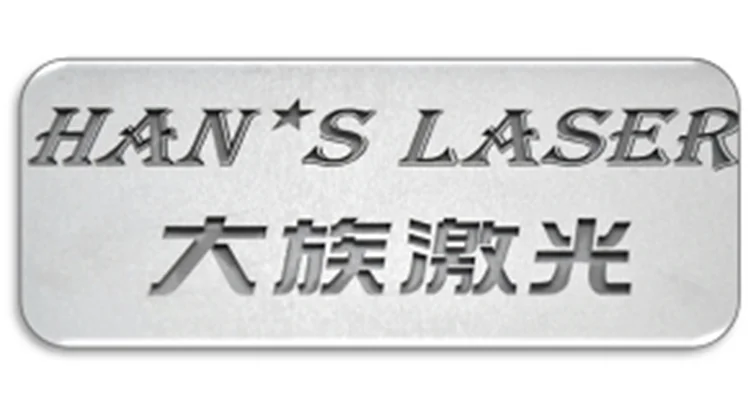

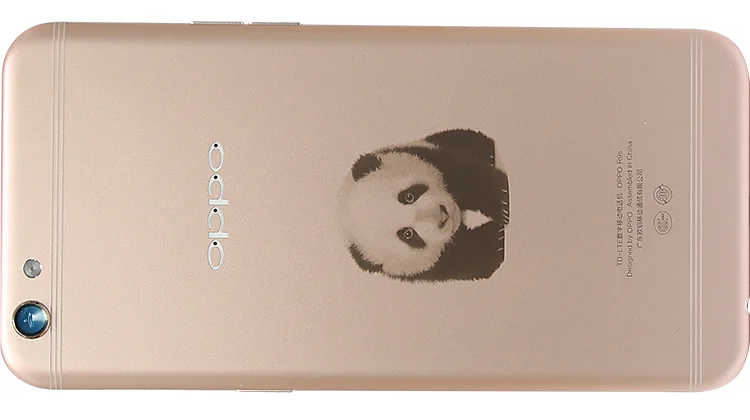

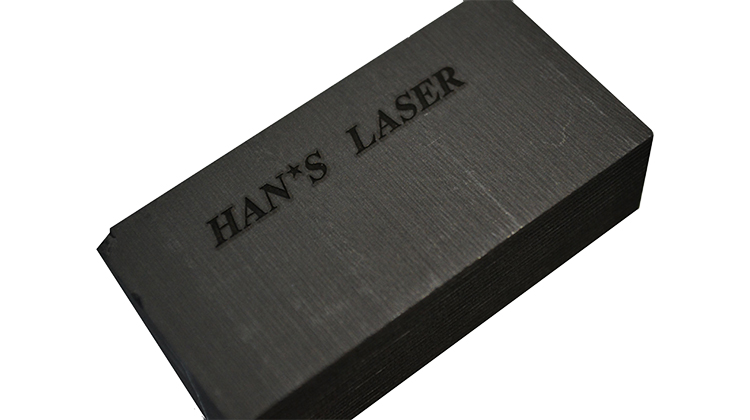

1. Can be suitable for a variety of materials: steel, aluminum, silver, gold, silicon.
2. Suitable for various industries:
Electronic components industry
Medical device industry
Glasses, watch and clock industry
IC card industry
Jewelry industry

Categories Fiber laser marking

Features：

1. Utilizes the world's largest source of Fiber lasers-IPG Photonics.
2. Adopts the newest generation of laser marking control.
3. Integrates the encoder data port which can get the assembly line speed real time that is for flying marking application.
4. Adopts one key starting with a simple interface.
5. The appearance is compact with a simplified air cooling system.
Was developed according to CE and FDA/CDRH standard, meeting the strictest safety requirements.

Specification:

Model	MARS-10J	MARS-20J
Laser output power	10W	20W
Wavelength	1064nm	1064nm
Beam quality M2	<1.6	<1.6
Laser repetition frequency	20-80KHz	20-80KHz
Marking scope	100mm100mm(standard) 150mm150mm(optional) 300mm*300mm(optional)	100mm100mm(standard) 150mm150mm(optional) 300mm*300mm(optional)
Marking speed	≤7000mm/s	≤7000mm/s
Min. line width	0.012mm	0.012mm
Min. character size	0.15mm	0.15mm
Repetition precision	±0.003mm	±0.003mm
Cooling	Air cooling, fan/filter (no water cooling required)	Air cooling, fan/filter (no water cooling required)
Input power	110~230VAC, 50/60 HZ	110~230VAC, 50/60 HZ
Power consumption	<500W	<500W
Expected MTTF (Diode)	Greater than 100,000 hours	Greater than 100,000 hours
